All ProductsTurck

Turck NI35U-CK40-ADZ30X2-T

SKU: CS3814272MPN: NI35U-CK40-ADZ30X2-TAlternate Part #: 4280443

4280443 - UPROX, RECT., AC, CABLE

Turck NI35U-CK40-ADZ30X2-T
$211.00
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

With Extended Switching Distance

  • Rectangular, height 40 mm
  • Variable orientation of active face in 5 directions
  • Plastic, PBT‐GF30‐V0
  • High luminance corner LEDs
  • Optimum view on supply voltage and switching state from any position
  • Only use the included plastic clip BS4-CK40
  • Factor 1 for all metals
  • Increased switching distance
  • Protection class IP68
  • Large coverage
  • Resistant to magnetic fields
  • Extended temperature range
  • High switching frequency
  • AC 2-wire, 20…250 VAC
  • DC 2-wire, 10…300 VDC
  • NO contact
  • Cable connection

Attributes

Ambient Temperature -30…+85 °C

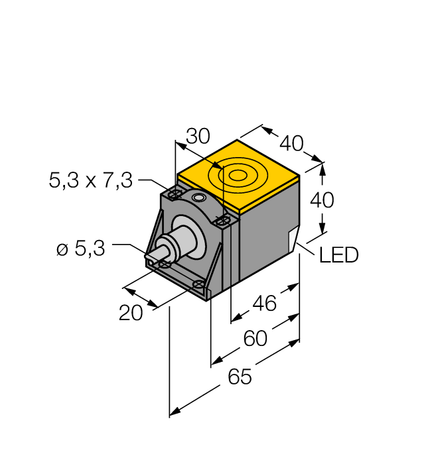

Construction Size 65 x 40 x 40 mm, CK40
Customs Tariff Number 85365080900.0000
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable
Housing Material Plastic, PBT-GF20-V0, Black
Mounting Non-flush
Operating Voltage 20…250 VAC / 10…300 VDC
Output Function NO contact, 2-wire
Protection Class IP68
Rated Switching Distance 35 mm
Special Feature uprox+, Sn +, Factor 1
Switching Frequency 0.010 kHz

Specifications

SKUCS3814272
MPNNI35U-CK40-ADZ30X2-T
Alternate Part #4280443
