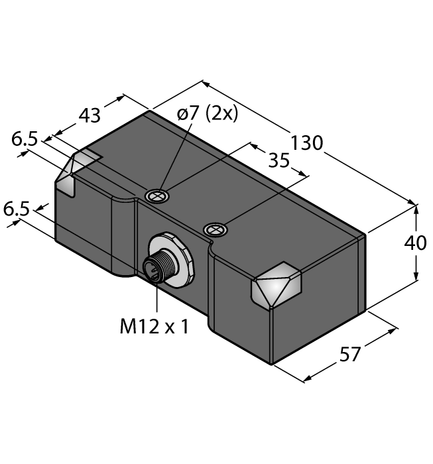

Turck NI30U-Q130WD-VP6X2-H1141
SKU: CS3814257MPN: NI30U-Q130WD-VP6X2-H1141Alternate Part #: 100001786UPC/EAN: 4047101453119
100001786 - UPROX, RECT., DC, CON. M12
$721.39
UnitAvailable on backorder
Product Details
Inductive Sensor
For Harsh Environments
- Rectangular, height 40 mm
- Active surface over the entire front
- Plastic, PPS-GF30
- Factor 1 for all metals
- Resistant to magnetic fields
- High protection class IP69K for harsh environments
- Protection against all common acidic and alkaline cleaning agents
- Laser engraved label, permanently legible
- DC 4-wire, 10…30 VDC
- Changeover contact, PNP output
- M12 x 1 male connector
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | 130 x 57 x 40 mm, Q130 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Plastic, PPS-GF30, Black |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | Complementary contact, PNP |
| Protection Class | IP68/IP69K |
| Rated Switching Distance | 30 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields, Wash down |
| Switching Frequency | 0.250 kHz |
Specifications
| SKU | CS3814257 |
|---|---|
| MPN | NI30U-Q130WD-VP6X2-H1141 |
| Alternate Part # | 100001786 |
| UPC/EAN | 4047101453119 |
You may also like
Turck NI75U-Q80WD-VP6X2-H1141
$371.60UnitTurck NI75U-Q80WD-VP6X2-H1141/F2
$371.60Unit
Turck NI35U-CK40-VP6X2-H1141
$205.11UnitTurck NI50U-CK40-VP6X2-H1141/S1120
$208.07UnitTurck NI40C-CK40-VP6X2-H1141
$205.22Unit

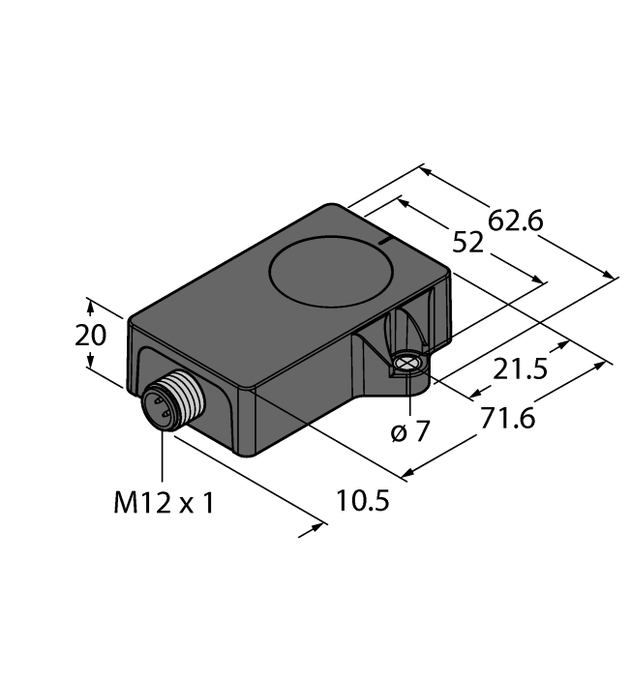

Turck BI20C-QR20-VP6X2-H1141
$191.63Unit
Turck NI30U-EM30WD-AP6X-H1141
$192.44UnitTurck NI30U-EM30WD-VP6X-H1141
$204.10UnitTurck NI30U-EM30WD-AN6X-H1141
$192.44Unit

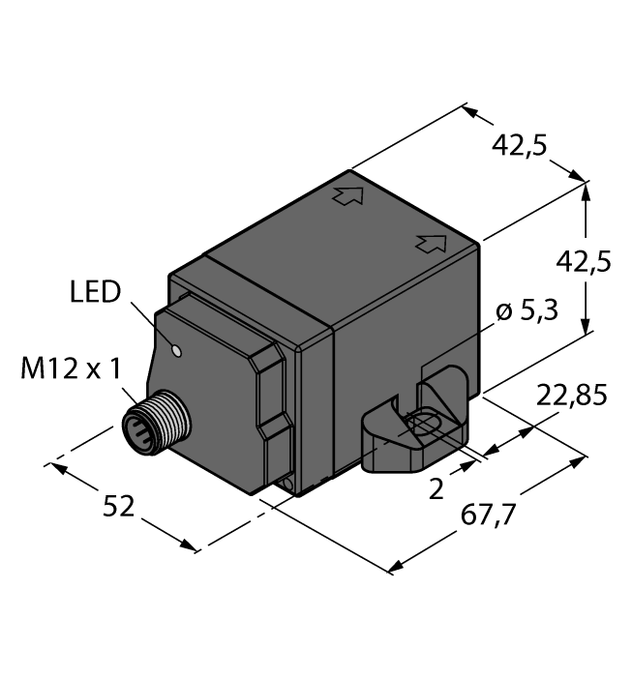

Turck NI50U-Q42FWD-VP6X-H1141
