Turck BI50-Q80-ADZ30X2-B3131

SKU: CS4209616MPN: BI50-Q80-ADZ30X2-B3131Alternate Part #: 4200311UPC/EAN: 4047101092400

4200311 - FERRITE, RECT., AC, CON. ½IN

Turck BI50-Q80-ADZ30X2-B3131
$376.15
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

With Increased Switching Distance

  • Rectangular, height 40 mm
  • Active face on top
  • Plastic, PBT‐GF30‐V0
  • Large sensing range
  • AC 2-wire, 20…250 VAC
  • DC 2-wire, 10…300 VDC
  • NO contact
  • ½” male connector

Attributes

Ambient Temperature -25…+70 °C

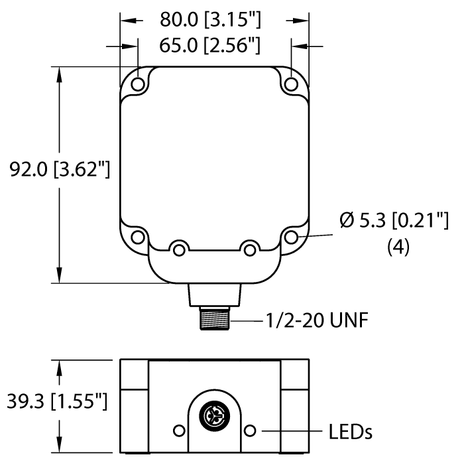

Construction Size 92 x 80 x 40 mm, Q80
Customs Tariff Number 85365080900.0000
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, ½″
Housing Material Plastic, PBT-GF30-V0
Mounting Flush
Operating Voltage 20…250 VAC / 10…300 VDC
Output Function NO contact, 2-wire
Protection Class IP67
Rated Switching Distance 50 mm
Special Feature Sn +
Switching Frequency 0.020 kHz

Specifications

SKUCS4209616
MPNBI50-Q80-ADZ30X2-B3131
Alternate Part #4200311
UPC/EAN4047101092400
