All ProductsTurck

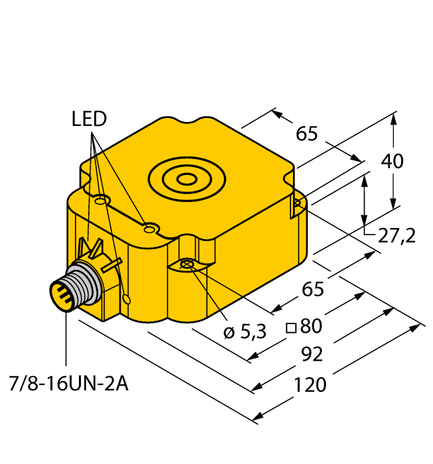

Turck BI50-Q80-ADZ30X2-B1131

SKU: CS549673MPN: BI50-Q80-ADZ30X2-B1131Alternate Part #: 4200310UPC/EAN: 4047101092394

4200310 - FERRITE, RECT., AC, CON. ⅞IN

Turck BI50-Q80-ADZ30X2-B1131, BI50U-Q80-VP4X2-B1141
$376.15
Unit
2 in stock
remove
add

Product Details

Inductive Sensor

With Increased Switching Distance

  • Rectangular, height 40 mm
  • Active face on top
  • Plastic, PBT‐GF30‐V0
  • Large sensing range
  • AC 2-wire, 20…250 VAC
  • DC 2-wire, 10…300 VDC
  • NO contact
  • ⅞” male connector

Attributes

Ambient Temperature -25…+70 °C
Construction Size 92 x 80 x 40 mm, Q80
Customs Tariff Number 85365080900.0000
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, ⅞″
Housing Material Plastic, PBT-GF30-V0
Mounting Flush
Operating Voltage 20…250 VAC / 10…300 VDC
Output Function NO contact, 2-wire
Protection Class IP67
Rated Switching Distance 50 mm
Special Feature Sn +
Switching Frequency 0.020 kHz

Specifications

SKUCS549673
MPNBI50-Q80-ADZ30X2-B1131
Alternate Part #4200310
UPC/EAN4047101092394
