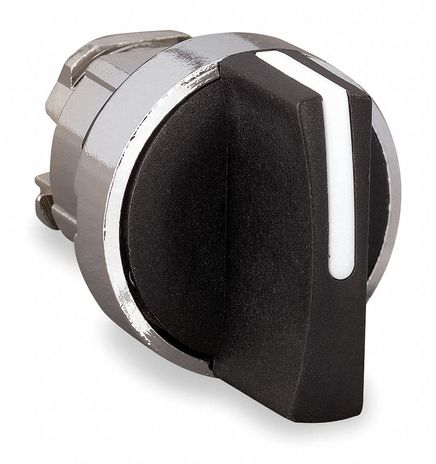

Square D ZB4BD7

Name: Square D ZB4BD7
Brand: Square D
SKU: CS4178576
Availability: OutOfStock

SKU: CS4178576MPN: ZB4BD7

Head for selector switch, Harmony XB4, metal, black, 22mm, 3 positions, spring return from left to center

Product Details

Black selector switch head Dia 22 3-position spring return

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Device Presentation	basic element
Device Short Name	ZB4
Head Type	standard
Mechanical Durability	1000000 cycles
Mounting Diameter	22 mm
Operator Position Information	3 positions ± 45°
Product Certifications	CSA# #LROS (Lloyds register of shipping)# #DNV# #UL listed# #GL# #BV
Product Or Component Type	head for selector switch
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	UL 508# #JIS C8201-5-1# #EN/IEC 60947-1# #EN/IEC 60947-5-4# #CSA C22.2 No 14# #EN/IEC 60947-5-1# #EN/IEC 60947-5-5# #JIS C8201-1
