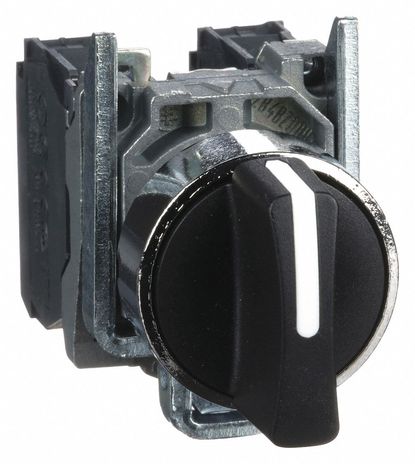

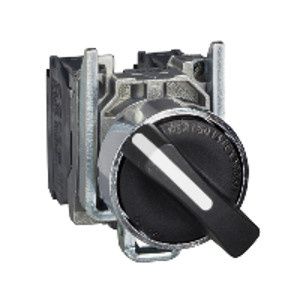

Square D XB4BD53

Name: Square D XB4BD53
Brand: Square D
SKU: CS1679797
Price: 75.37 USD
Availability: InStock

SKU: CS1679797MPN: XB4BD53UPC/EAN: 3389110887112

Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, spring spring return, 2NO

$75.37

Unit

5 in stock

Quantity

remove

add

Product Details

Black Selector Switch 22mm 3-Position Spring Return 2NO 600V

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	2 NO
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Mechanical Durability	1000000 cycles
Mounting Diameter	22 mm
Operator Position Information	3 positions ± 45°
Product Certifications	UL# #LROS (Lloyds register of shipping)# #BV# #CSA# #DNV# #GL
Product Or Component Type	selector switch
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60947-5-5# #UL 508# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #JIS C8201-5-1# #EN/IEC 60947-1# #EN/IEC 60947-5-4# #JIS C8201-1
Terminals Description Iso N 1	(13-14)NO# #(23-24)NO
