Dwyer FCLS-01
SKU: CS4118064MPN: FCLS-01Alternate Part #: 124950-00
FCLS-01 FL CAP LVL SW
$1,393.09
UnitAvailable on backorder
Product Details
Flush capacitance level switch.
Attributes
| Adjustable Sensitivity | 1 to 20 pF. |
| Commodity Code | R6KC |
| Conduit Connection | 2 x ½” female NPT. |
| Electrical Connection | Screw terminals. |
| Electrical Connections | Screw terminals. |
| Electrical Rating | 3 A @ 250 VAC. |
| Enclosure | Aluminum, painted. |
| Enclosure Rating | IP65. |
| Fail Safe | Selectable fail high or fail low. |
| Insulated Materials | PTFE. |
| Mounting Orientation | Side mount. |
| Power Consumption | 2 W. |
| Power Requirement | 110 or 220 VAC. |
| Pressure Limit | 285 psi (19.7 bar). |
| Process Connection | 2.5” - x 5 kg/cm2 JIS flange. |
| Service | Liquids, powder, and bulk materials compatible with wetted materials. |
| Switch Type | SPDT. |
| Time Delay | 0 to 6 s. |
| Wetted Material | 304 SS. |
Specifications
| SKU | CS4118064 |
|---|---|
| MPN | FCLS-01 |
| Alternate Part # | 124950-00 |
You may also like
Dwyer VRLS-01
$1,064.32Unit
Dwyer TFLS2-01
$972.96UnitDwyer CLS1
$947.04UnitDwyer CLS2-W11RK1-019
$767.66UnitDwyer DPL110
$1,220.24UnitDwyer PLS2-E-1-3
$433.19UnitDwyer PLS2-E-1-1
$392.66UnitDwyer 608-01
$1,941.85UnitDwyer CTF-02
$594.52UnitDwyer PLS2-E-1-2
$385.53Unit
Dwyer F7-LL
$181.62Unit

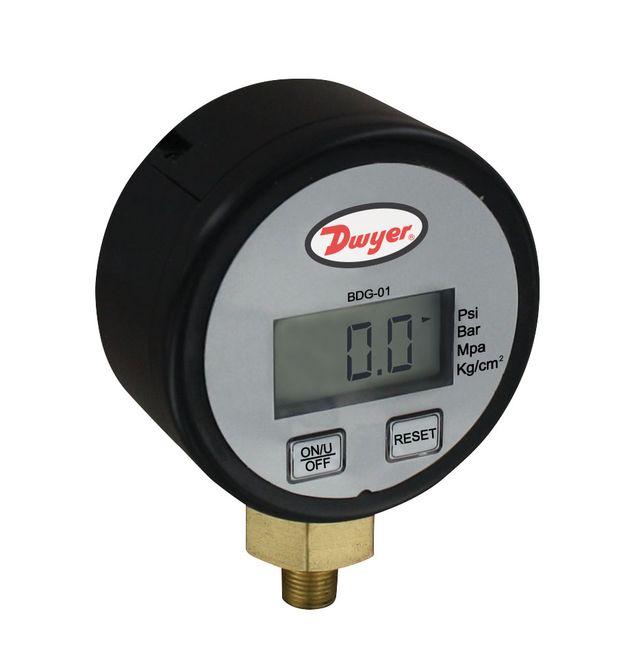

Dwyer BDG-01
