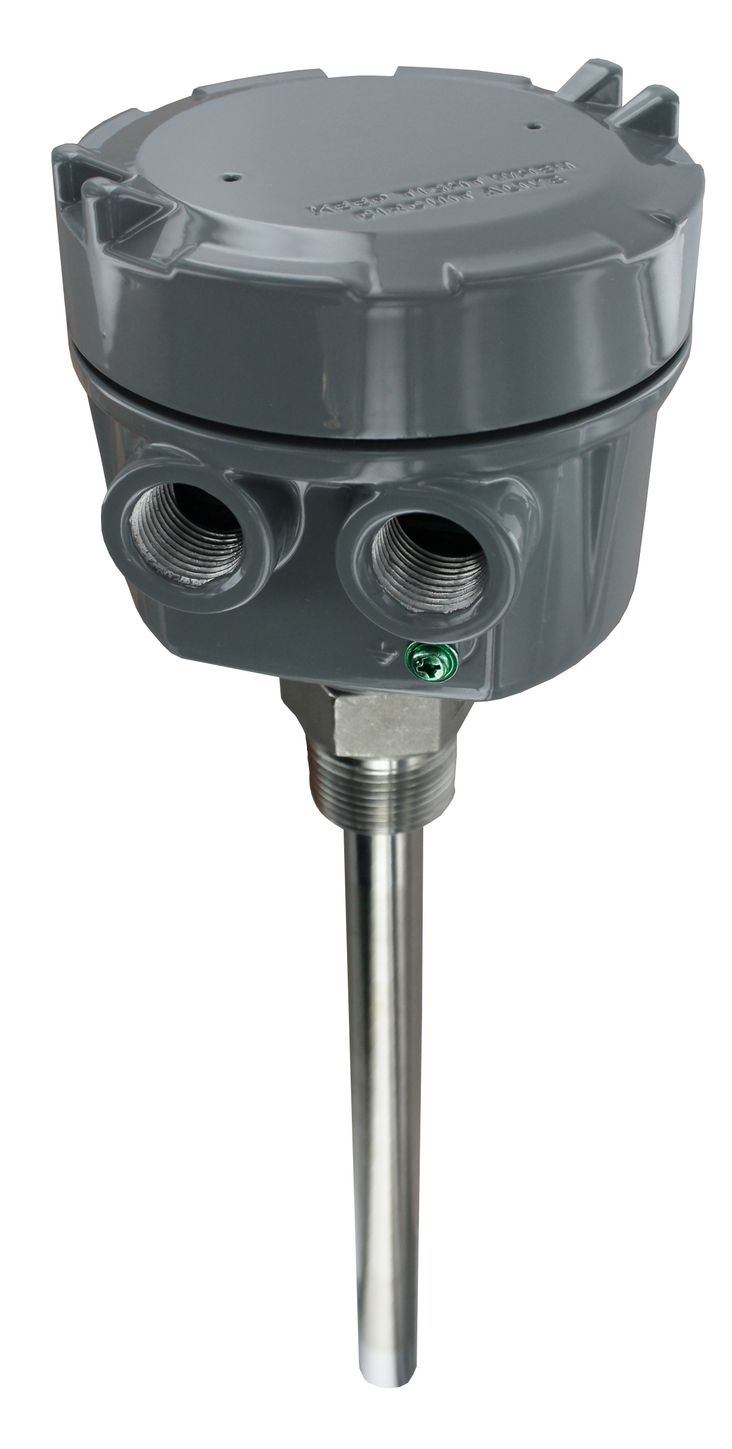

Dwyer VRLS-01
SKU: CS4122307MPN: VRLS-01Alternate Part #: 124948-00
VRLS-01 VIBRATING ROD LVL SW
$1,064.32
UnitAvailable on backorder
Product Details
Vibrating rod level switch.
Attributes
| Commodity Code | R6KD |
| Conduit Connection | ½” female NPT x 2. |
| Electrical Connection | Screw terminals. |
| Electrical Connections | Screw terminals. |
| Electrical Rating | 5 A @ 250 VAC. |
| Enclosure | Aluminum, painted. |
| Enclosure Rating | IP65. |
| Indication Light | Internal: green and red LED. |
| Indication Lights | Internal: green and red LED. |
| Power Consumption | 15 VA. |
| Power Requirement | 20 to 250 VAC/VDC, 50/60 Hz. |
| Pressure Limit | 150 psi (10 bar). |
| Process Connection | 1” male NPT. |
| Sensing Delay | 0 to 6 s. |
| Sensitivity | Min. bulk density of 20 lb/ft3 (320 kg/m3). |
| Service | Dry powder or bulk materials compatible with wetted materials. |
| Switch Type | SPDT. |
| Wetted Material | 304 SS. |
Specifications
| SKU | CS4122307 |
|---|---|
| MPN | VRLS-01 |
| Alternate Part # | 124948-00 |
You may also like
Dwyer FCLS-01
$1,393.09Unit
Dwyer TFLS2-01
$972.96UnitDwyer CTF-02
$594.52UnitDwyer PLS2-E-1-3
$433.19UnitDwyer PLS2-E-1-1
$392.66UnitDwyer PLS2-E-1-2
$385.53UnitDwyer 608-01
$1,941.85UnitDwyer DPL110
$1,220.24UnitDwyer CLS2-W11RK1-019
$767.66Unit

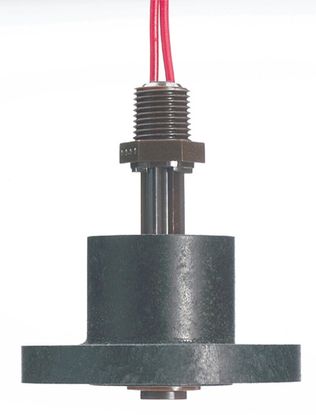

Dwyer F7-LL
