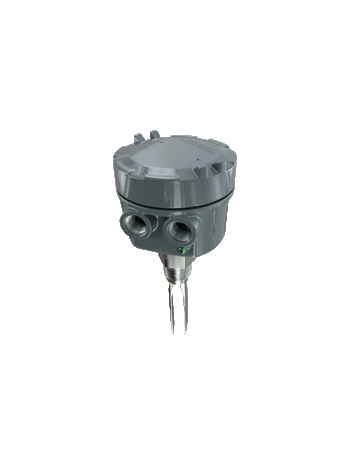

Dwyer TFLS2-01
SKU: CS4121333MPN: TFLS2-01Alternate Part #: 124920-00
TFLS2-01 TUNING FORK LVL SW
$972.96
UnitAvailable on backorder
Product Details
Compact tuning fork level switch.
Attributes
| Commodity Code | R6KA |
| Conduit Connection | ½” female NPT x 2. |
| Electric Connections | Screw terminals. |
| Electrical Rating | 5 A @ 250 VAC. |
| Enclosure | Aluminum, painted. |
| Enclosure Rating | IP65. |
| Power Consumption | 10 VA. |
| Power Requirement | 20 to 250 VAC, 50/60 Hz. |
| Pressure Limit | 600 psi (40 bar). |
| Process Connection | 1” male NPT. |
| Process Connections | 1” male NPT. |
| Sensing Delay | 0 to 6 seconds. |
| Sensitivity | Minimum bulk solid density: 4.4 lb/ft³ (70 g/l); Maximum particle size: 0.4” (10 mm). |
| Service | Dry powder compatible with wetted materials. |
| Switch Type | SPDT. |
| Wetted Material | 316 L SS. |
Specifications
| SKU | CS4121333 |
|---|---|
| MPN | TFLS2-01 |
| Alternate Part # | 124920-00 |
You may also like
Dwyer VRLS-01
$1,064.32UnitDwyer FCLS-01
$1,393.09UnitDwyer CTF-02
$594.52UnitDwyer PLS2-E-1-1
$392.66UnitDwyer PLS2-E-1-3
$433.19UnitDwyer 608-01
$1,941.85UnitDwyer CLS1
$947.04UnitDwyer DPL110
$1,220.24UnitDwyer PLS2-E-1-2
$385.53UnitDwyer CLS2-W11RK1-019
$767.66UnitDwyer IWP-01
$553.98Unit

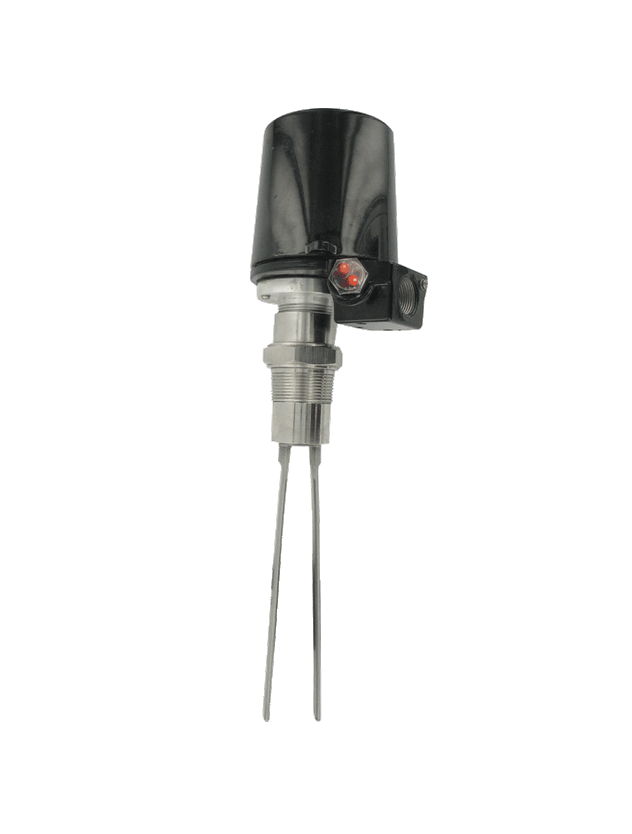

Dwyer TFLS-W11SR1-006
