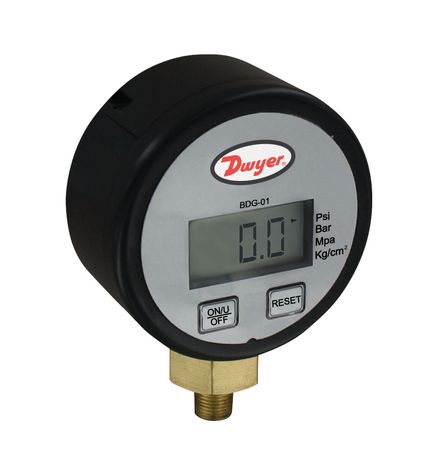

Dwyer BDG-01
SKU: CS4116166MPN: BDG-01Alternate Part #: 124942-00
BDG-01 BRASS DGTL GUAGE
$119.23
UnitAvailable on backorder
Product Details
Brass digital pressure gage, range 0 to 150 psig, 10.342 Bar, 1.034 mPa and 10.545 kg/cm2.
Attributes
| Accuracy | ±0.5% FS. |
| Battery Life | 2 to 3 years typ. |
| Commodity Code | R9GA |
| Display | 4-digit LCD (1-¼ x ⅝”). |
| Enclosure Rating | IP10. |
| Housing Material | ABS plastic. |
| Housing Materials | ABS plastic. |
| Long Term Stability | ±0.05% FS per year. |
| Power Requirement | 3 V CR123A lithium metal battery, installed functional, user replaceable. |
| Pressure Limit | 2X pressure range; Burst pressure: 3X pressure range. |
| Process Connection | ¼” male NPT. |
| Service | Compatible gases. |
| Size | 2.5” OD. |
| Thermal Effect | ±0.04% FS per °C. |
| Wetted Material | Brass and silicone sensor. |
Specifications
| SKU | CS4116166 |
|---|---|
| MPN | BDG-01 |
| Alternate Part # | 124942-00 |
