Dwyer CTF-02
SKU: CS4116741MPN: CTF-02Alternate Part #: 124947-01
CTF-02 MINI TUN FRK LVL SW NPN
$594.52
UnitAvailable on backorder
Product Details
Mini tuning fork level switch with NPN output.
Attributes
| Commodity Code | R6KB |
| Compliance | CE. |
| Conduit Connection | Valve plug DIN 43650. |
| Electrical Rating | 350 mA (max) @ 12 to 55 VDC. |
| Enclosure | Aluminum, painted. |
| Enclosure Rating | IP65. |
| Indication Light | External red LED. |
| Indication Lights | External red LED. |
| Power Consumption | 10 mA @ 12 to 24 VDC; 0.5 W (max.). |
| Power Requirement | 12 to 55 VDC. |
| Pressure Limit | 600 psi (40 bar). |
| Process Connection | 1” male NPT. |
| Process Connections | 1” male NPT. |
| Sensing Delay | Max. covered probe: 1 to 3 s.; Uncovered probe: 1 to 3 s. |
| Sensitivity | Min. bulk solid density: 4.4 lb/ft3 (70 g/l). |
| Service | Dry powder compatible with wetted materials. |
| Switch Type | 3-wire PNP/NPN output. |
| Wetted Material | Tuning Fork: 316 L SS; Process connection: 304 SS. |
Specifications
| SKU | CS4116741 |
|---|---|
| MPN | CTF-02 |
| Alternate Part # | 124947-01 |
You may also like
Dwyer CTF-03
$596.01Unit
Dwyer VRLS-01
$1,064.32Unit
Dwyer TFLS2-01
$972.96Unit

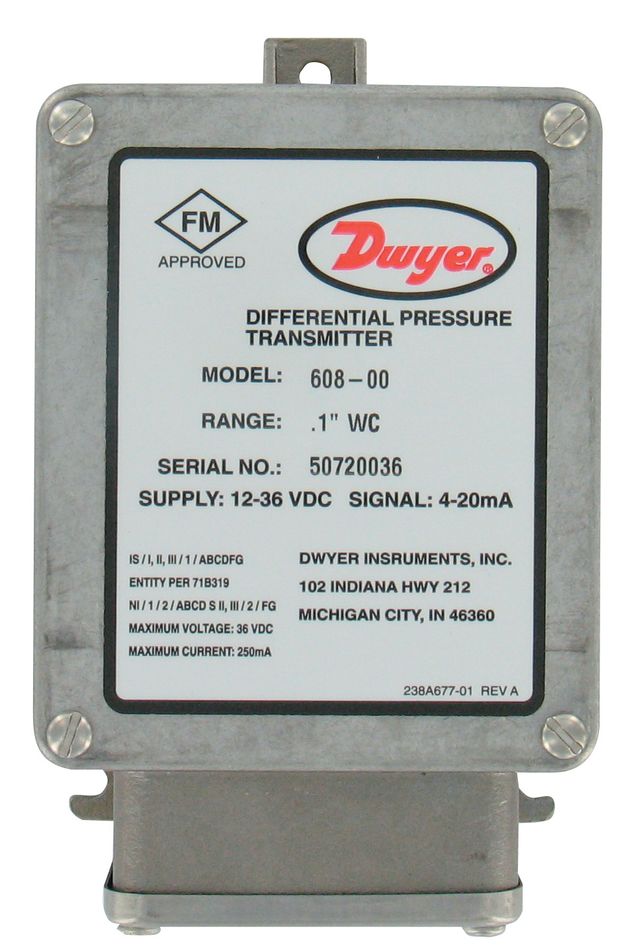

Dwyer 608-02
$1,871.08UnitDwyer PLS2-E-1-2
$385.53UnitDwyer PLS2-E-1-3
$433.19Unit

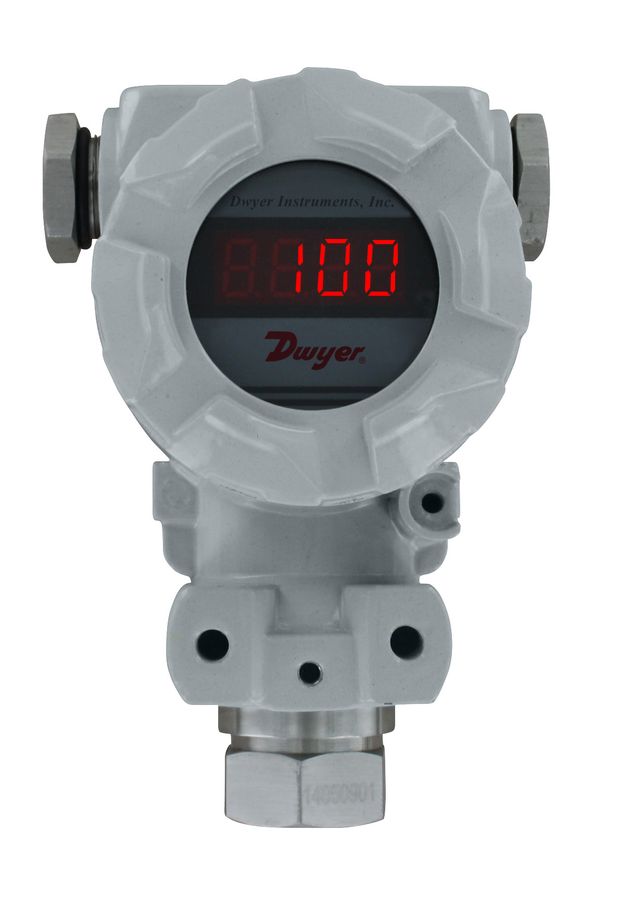

Dwyer IWP-02
$553.98UnitDwyer FCLS-01
$1,393.09UnitDwyer CLS1
$947.04UnitDwyer DBLM3140
$483.27UnitDwyer CLS2-W11RK1-019
$767.66Unit

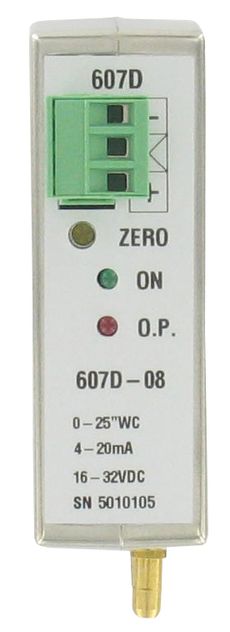

Dwyer 607D-02
