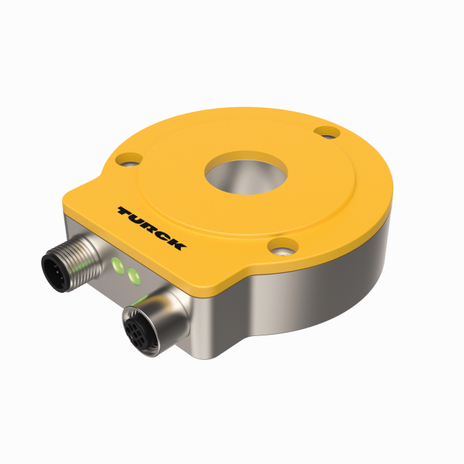

Turck RI360P0-QR24M0-CNX4-2H1150

SKU: CS3832846MPN: RI360P0-QR24M0-CNX4-2H1150Alternate Part #: 1590914UPC/EAN: 4047101327441

1590914 - SINGLETURN

Turck RI360P0-QR24M0-CNX4-2H1150
Turck RI360P0-QR24M0-CNX4-2H1150
Turck RI360P0-QR24M0-CNX4-2H1150
Turck RI360P0-QR24M0-CNX4-2H1150
$707.61
Unit
Available on backorder
remove
add

Product Details

Contactless Encoder

CANopen

Premium Line

  • Compact, rugged housing
  • Many mounting possibilities
  • Status displayed via LED
  • Positioning element and aluminium ring not incl.
  • CANopen interface
  • Baud rate 10 kbps up to 1 Mbps; Factory setting: 125 kbps
  • Node address 1 to 127; Factory setting 3
  • Terminating resistor switched in via CANopen device access
  • Immune to electromagnetic interference
  • 10 … 30 VDC
  • M12 x 1 male, 5-pin, CAN in, CAN out
  • Acc. to CiA DS-301, CiA 305, CiA 406

Attributes

Ambient Temperature -25…+85 °C
Communication Protocol CANopen

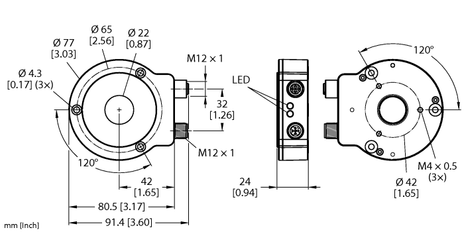

Construction Size 81 x 78 x 24 mm
Customs Tariff Number 90318080000.0000
Ecl Ss Code V5 1 4 27270501 -/- Encoder, absolute
Electrical Connection Connector, M12 × 1
Encoder Line Premium-Line
Flange Type Flange without mounting element
Housing Material Metal/plastic, ZnAlCu1/PBT-GF30-V0
Measuring Range 0…360°
Operating Voltage 10…30 VDC
Output Type Absolute singleturn
Protection Class IP68/IP69K
Shaft Diameter D Mm 6 mm6.35 mm9.525 mm10 mm12 mm12.7 mm14 mm15.875 mm19.05 mm20 mm
Shaft Type Hollow shaft
Technology Contactless

Specifications

SKUCS3832846
MPNRI360P0-QR24M0-CNX4-2H1150
Alternate Part #1590914
UPC/EAN4047101327441
