Turck RI360P4-DSU35-ELIU5X2-H1151
SKU: CS3832888MPN: RI360P4-DSU35-ELIU5X2-H1151Alternate Part #: 100002205UPC/EAN: 4047101460124
100002205 - SINGLETURN
$621.21
UnitAvailable on backorder
Product Details
Inductive Angle Sensor
With Analog Output
Premium Line
- Rectangular, DSU35 design
- Plastic, PP-GF30-VO
- Detection of angular range from 0° to 360°
- Positioning element P4-Ri-DSU35 included in delivery
- Measuring range displayed via LED
- Programmable measuring range
- Immune to electromagnetic interference
- Resolution, 12-bit
- 15…30 VDC
- 0…10 V and 4…20 mA
- Male M12 x 1, 5-pin
Attributes
| Ambient Temperature | -25…+75 °C |

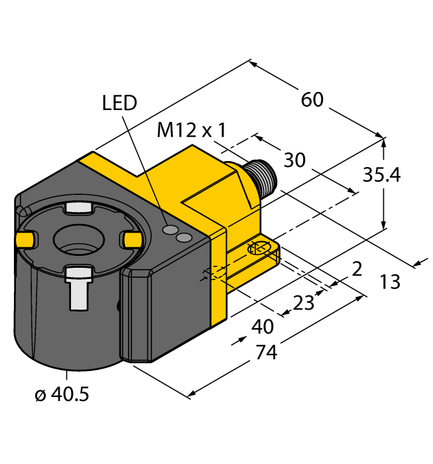

| Construction Size | 74 x 60 x 35.4 mm |
| Current Output | 4…20 mA |
| Customs Tariff Number | 90318080000.0000 |
| Ecl Ss Code V5 1 4 | 27270501 -/- Encoder, absolute |
| Electrical Connection | Connector, M12 × 1 |
| Encoder Line | Premium-Line |
| Flange Type | Flange without mounting element |
| Housing Material | Plastic, PP-GF30 |
| Measuring Range | 0…360° |
| Operating Voltage | 15…30 VDC |
| Output Function | Analog output |
| Output Type | Absolute singleturn |
| Protection Class | IP68/IP69K |
| Technology | Contactless |
| Voltage Output | 0…10 V |
Specifications
| SKU | CS3832888 |
|---|---|
| MPN | RI360P4-DSU35-ELIU5X2-H1151 |
| Alternate Part # | 100002205 |
| UPC/EAN | 4047101460124 |
