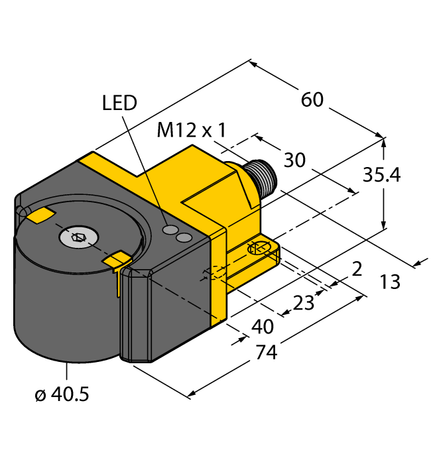

Turck RI360P1-DSU35-ELIU5X2-H1151
SKU: CS3832859MPN: RI360P1-DSU35-ELIU5X2-H1151Alternate Part #: 1590866UPC/EAN: 4047101282016
1590866 - SINGLETURN
$536.26
UnitAvailable on backorder
Product Details
Inductive Angle Sensor
With Analog Output
Premium Line
- Rectangular, housing DSU35
- Plastic, PP-GF30-VO
- Detecting angular positions of 0° to 360°
- P1-Ri-DSU35 positioning element included in delivery
- Measuring range displayed via LED
- Programmable measuring range
- Immune to electromagnetic interference
- Resolution, 12-bit
- 15…30 VDC
- 0…10 V and 4…20 mA
- Male M12 x 1, 5-pin
Attributes
| Ambient Temperature | -25…+75 °C |
| Construction Size | 74 x 60 x 35.4 mm |
| Current Output | 4…20 mA |
| Customs Tariff Number | 90318080000.0000 |
| Ecl Ss Code V5 1 4 | 27270501 -/- Encoder, absolute |
| Electrical Connection | Connector, M12 × 1 |
| Encoder Line | Premium-Line |
| Flange Type | Flange without mounting element |
| Housing Material | Plastic, PP-GF30 |
| Measuring Range | 0…360° |
| Operating Voltage | 15…30 VDC |
| Output Function | Analog output |
| Output Type | Absolute singleturn |
| Protection Class | IP68/IP69K |
| Technology | Contactless |
| Voltage Output | 0…10 V |
Specifications
| SKU | CS3832859 |
|---|---|
| MPN | RI360P1-DSU35-ELIU5X2-H1151 |
| Alternate Part # | 1590866 |
| UPC/EAN | 4047101282016 |
You may also like
Turck RI360P4-DSU35-ELIU5X2-H1151
$621.21Unit
Turck RI360P1-QR14-ELIU5X2
$286.01Unit
Turck RI360P1-QR14-ELIU5X2-0.3-RS5
$308.01Unit
Turck RI360P0-QR24M0-ELIU5X2-H1151
Contact us for pricing and availability
Turck RI360P0-EQR24M0-ELIU5X2-H1151
$859.74Unit

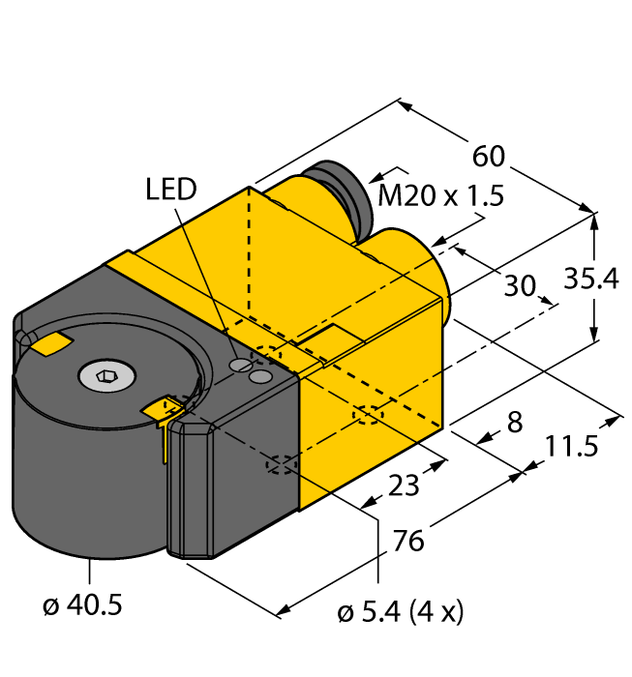

Turck RI360P1-DSU35TC-ELI-EXI
