Turck NI4-DSU35-2ADZ30X2-B3151
SKU: CS3814292MPN: NI4-DSU35-2ADZ30X2-B3151Alternate Part #: 4290014UPC/EAN: 4047101245455
4290014 - FERRITE, DUAL, AC, CON. ½IN.
$302.75
UnitAvailable on backorder
Product Details
Inductive Sensor
For Rotary Actuators
- Rectangular, housing DSU35
- Plastic, PP-GF30-VO
- Two outputs for monitoring the position of rotary actuators
- Mounting on all standard actuators
- AC 4-wire, 20…250 VDC
- DC 4-wire, 10…300 VDC
- 2 x NO contact
- ½” male connector
Attributes
| Ambient Temperature | -25…+70 °C |

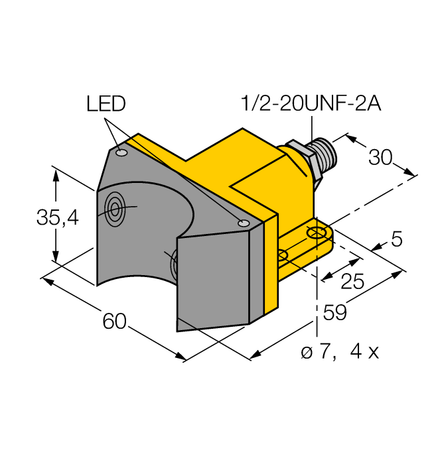

| Construction Size | 59 x 60 x 35.4 mm, DSU35 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Dual sensor for valve monitoring |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, ½″ |
| Housing Material | Plastic, PP-GF30, Yellow |
| Mounting | Non-flush |
| Operating Voltage | 20…250 VAC / 10…300 VDC |
| Output Function | 2 x NO contact, 2-wire |
| Protection Class | IP67 |
| Rated Switching Distance | 4 mm |
| Switching Frequency | 0.020 kHz |
Specifications
| SKU | CS3814292 |
|---|---|
| MPN | NI4-DSU35-2ADZ30X2-B3151 |
| Alternate Part # | 4290014 |
| UPC/EAN | 4047101245455 |
