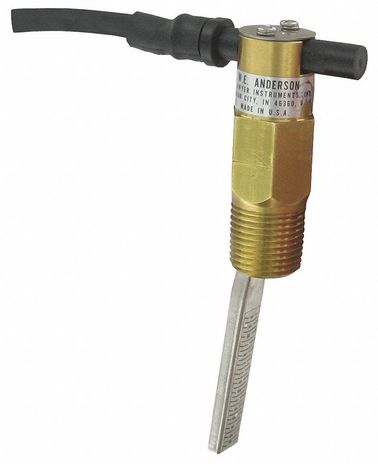

Dwyer V10
SKU: CS266858MPN: V10Alternate Part #: 119151-00
V10 FLOTECT FLOW SW
$106.57
UnitAvailable on backorder
Product Details
Mini-size flow switch, brass, normally open or closed.
Attributes
| Commodity Code | 8205 |
| Compliance | CE, CSA, UR. |
| Electrical Connection | 18 AWG, 19” (483 mm) long, PVC jacket. Rated 221°F (105°C). |
| Electrical Rating | 0.5 A @ 120 VAC; 1.5 A @ 24 VDC res.; 0.001 A @ 200 VDC res. |
| Enclosure Rating | Weatherproof, meets NEMA 4X (IP66). |
| Mounting Orientation | Switch can be installed in any position but the actuation/deactuation flow rates are based on horizontal pipe runs and are nominal values. |
| Pressure Limit | Brass body: 1000 psig (69 bar), 303 SS body: 2000 psig (138 bar). |
| Process Connection | ½” male NPT standard. Contact factory for other options. |
| Service | Compatible gases or liquids. |
| Set Point Adjustment | Vane is trimmable. |
| Switch Enclosure | Nylon. |
| Switch Type | SPST hermetically sealed reed switch. Field adjustable for normally open or normally closed. |
| Wetted Material | Vane: 301 SS; Body: Brass or 303 SS; Pin and Magnet: Ceramic 8. |
Specifications
| SKU | CS266858 |
|---|---|
| MPN | V10 |
| Alternate Part # | 119151-00 |
