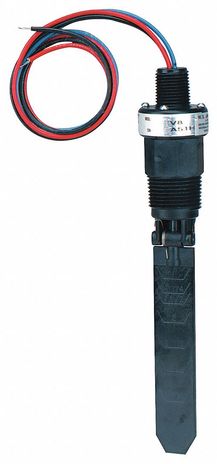

Dwyer V8
SKU: CS656604MPN: V8Alternate Part #: 119152-00
V8 FLOTECT FLOW SW
$121.56
Unit3 Units Available at Factory - Ships Same/Next Business Day
Product Details
Vane operated flow switch.
Attributes
| Agency Approval | CE, cURus. |
| Commodity Code | 8207 |
| Conduit Connection | ½” male NPT, ½” female NPT on WP and WP2. |
| Electrical Connection | 18 AWG 18” (460 mm) long. |
| Electrical Rating | 5 A @ 125/250 VAC, 5 A resistive, 3 A inductive @ 30 VDC. MV option: 1 A @ 125 VAC, 1 A resistive, 0.5 A inductive @ 30 VDC. |
| Enclosure Rating | General purpose; WP/WP2 option is weatherproof. |
| Mounting Orientation | Actuation/deactuation flow rates are based on horizontal pipe run and are nominal values. Unit cannot be used with vertical down flow. |
| Pressure Limit | 150 psig (10 bar). |
| Process Connection | 1” male NPT. |
| Service | Compatible gases or liquids. |
| Set Point Adjustment | Vane is trimmable. |
| Switch Type | SPDT snap switch; MV option: SPDT gold contact snap switch. |
| Wetted Material | Vane and Body: Polyphenylene Sulfide (PPS); Pin and spring: 316 SS or Inconel®; Magnet: Ceramic 8. |
Specifications
| SKU | CS656604 |
|---|---|
| MPN | V8 |
| Alternate Part # | 119152-00 |
You may also like
Dwyer V8-WP
$173.81Unit

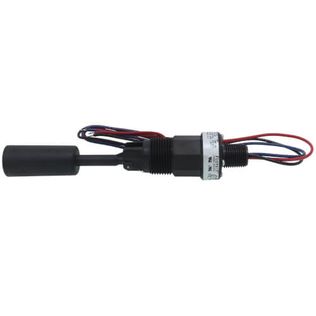

Dwyer L8
