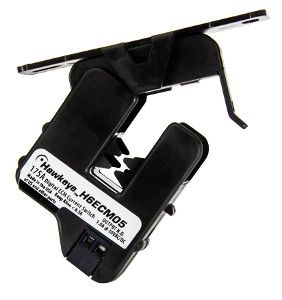

Veris H6ECM05
SKU: CS3182246MPN: H6ECM05Alternate Part #: VER-H6ECM05UPC/EAN: 780333843412
Current-sensitive Switching Device
$38.13
Unit1 in stock
Product Details
Current-sensitive Switching Device
- Sensor Power: Induced from the monitored conductor* Amperage Range: 0.5A to 175A continuous (monitored conductor)* Status Output Ratings: N.O. 1.0A @ 30 VAC/DC, not polarity sensitive* Setpoint: 0.5A (ECM optimized)* Frequency Range: 60Hz only* Accuracy: +/-10%* Temperature Range: -15 deg. to 60 deg. C (5 deg. to 140 deg. F)* Humidity Range: 10-90% RH non-condensing* Hysteresis: 10% typical* Off State Resistance: Open switch represents > 1M Ohm* On State Resistance: Closed switch represents \< 200m Ohm* Terminal Block Wire Size: 24 to 14 AWG (0.2 to 2.1 sq. mm)* Terminal Block Torque: 3.5 to 4.4 in-lbs (0.4 to 0.5N-m)* Agency Approvals: UL508 open device listing* Insulation Class 600 VAC RMS* Installation Category: Cat. III, pollution degree 2
Attributes
| Product or Component Type | sensor |
| Ambient Air Temperature for Operation | -15-60 °C |
| Product Certifications | UL; CE |
| Type of Measurement | AC current; electrically commutated motors (ECM) |
| Device Application | building automation systems |
| Mounting Support | split core housing |
| Sensor Type | current transducer, AC, ECM |
| Relative Humidity | 10-90 % RH, non-condensing |
| Network Frequency | 50…60 Hz |
| AWG Gauge | AWG 24…AWG 14 |
| Output Current | 1 A at 30 V AC/DC |
| Current Measurement Range | 0.5…175 A |
| Current Measurement Accuracy | ± 2 % of full scale above 10 % of selected range |
| Opening Width | 12 mm |
Specifications
| SKU | CS3182246 |
|---|---|
| MPN | H6ECM05 |
| Alternate Part # | VER-H6ECM05 |
| UPC/EAN | 780333843412 |
