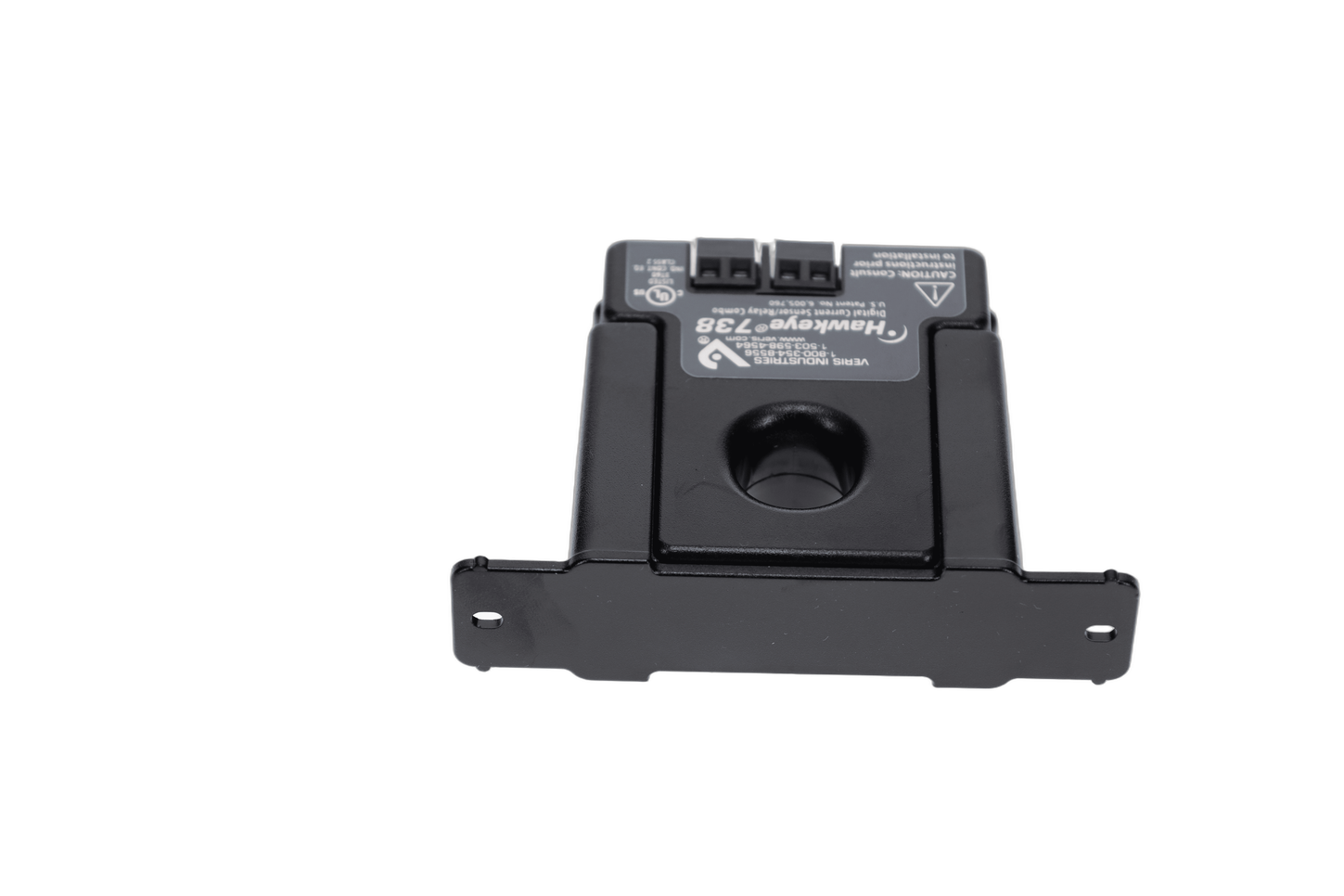

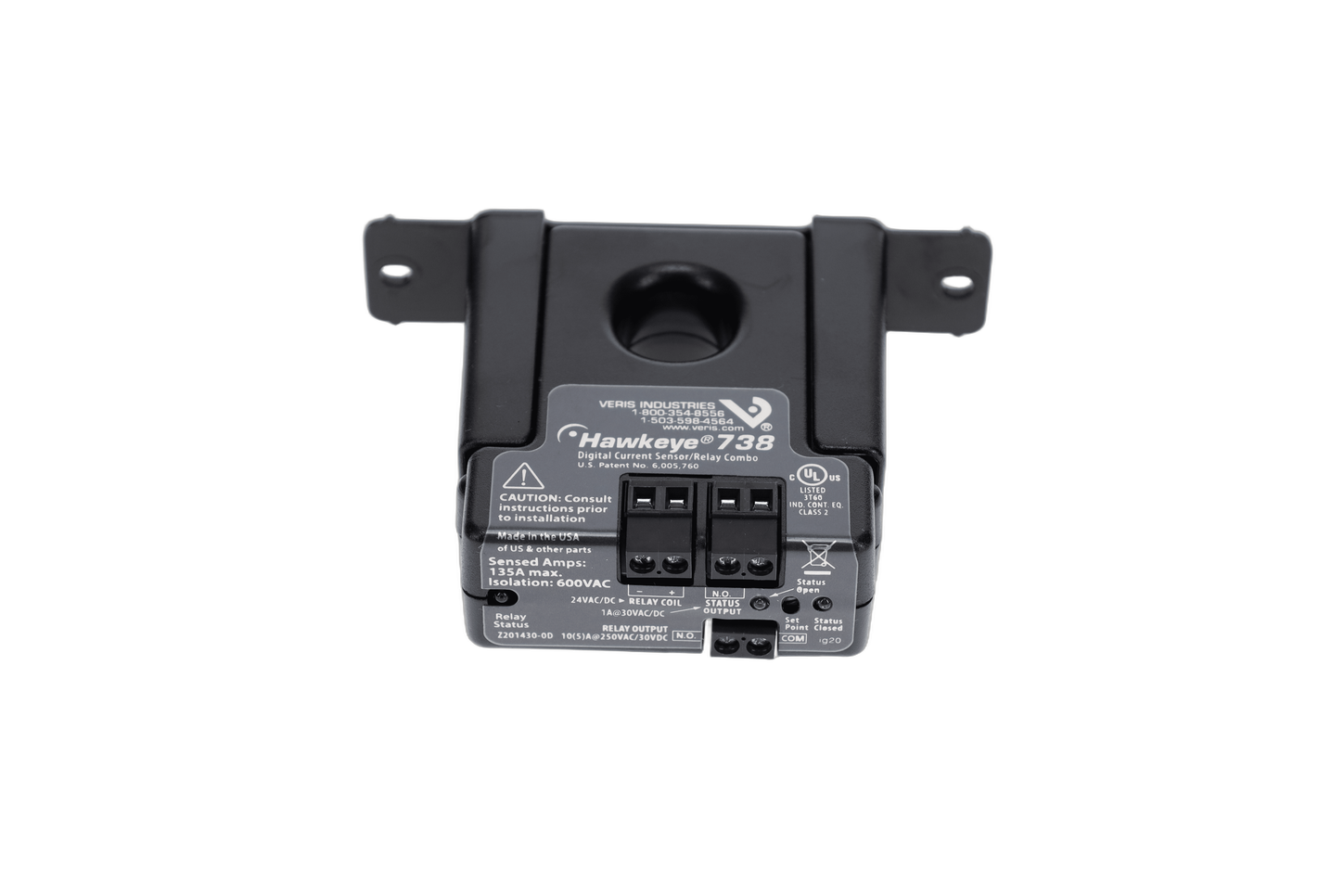

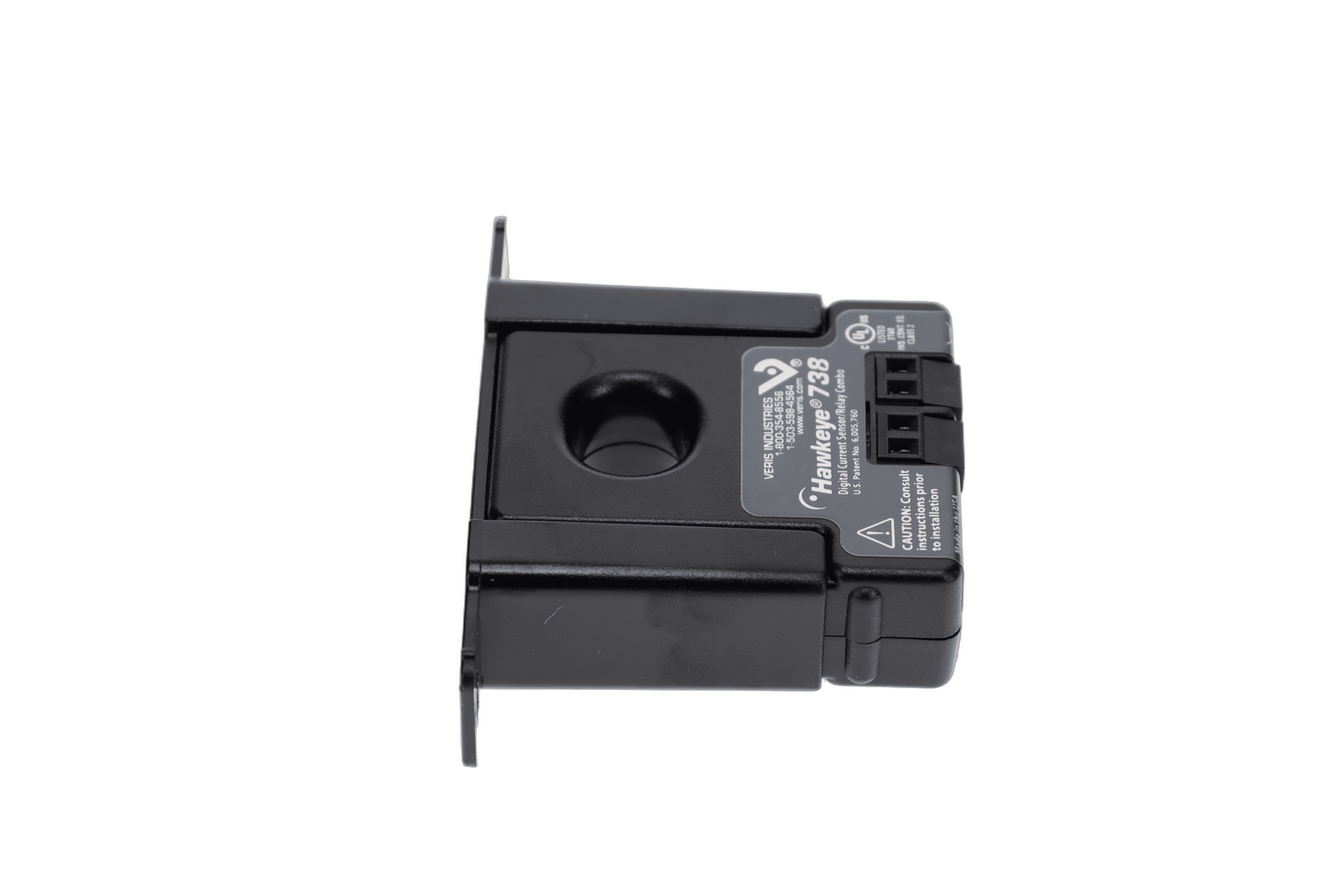

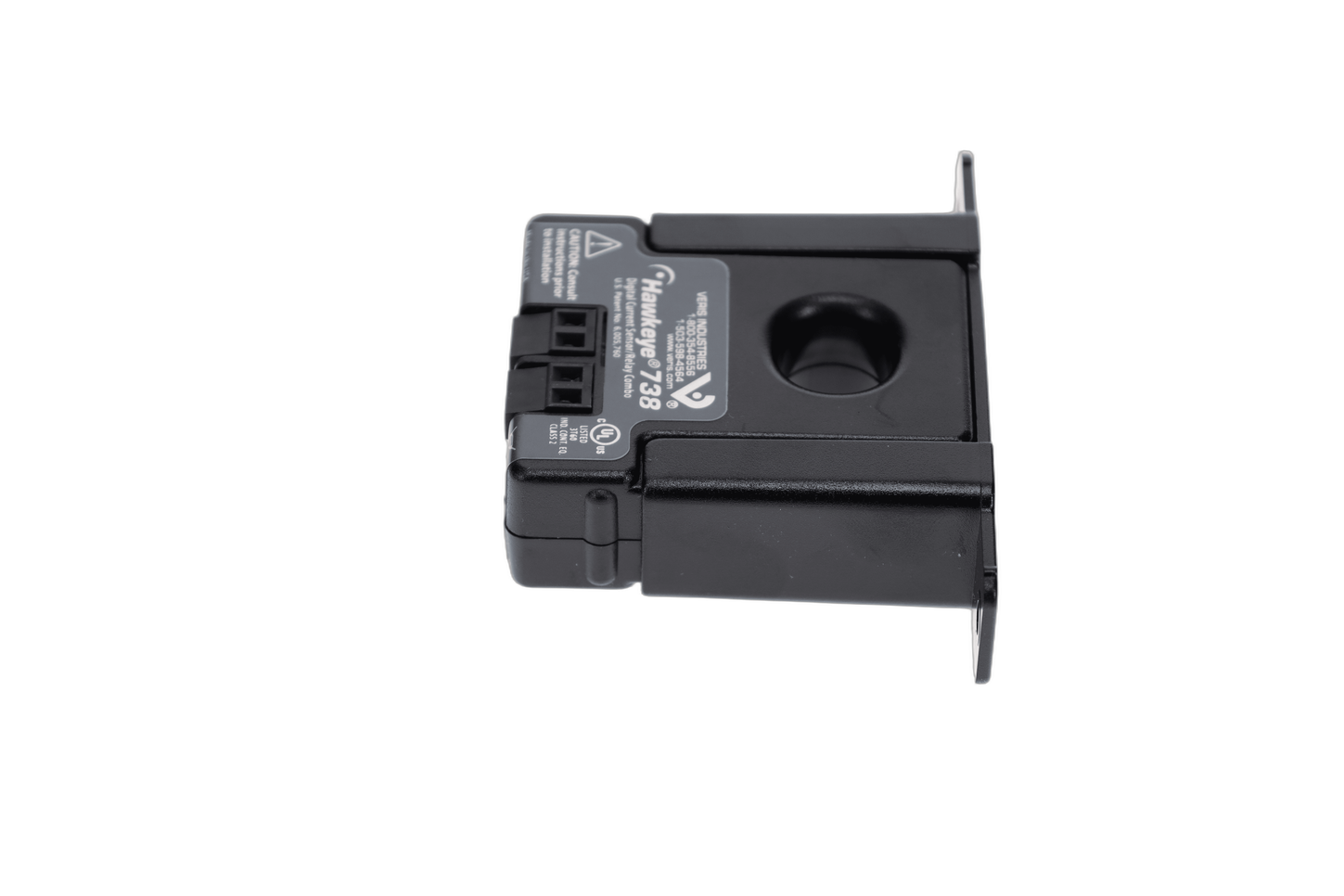

Veris H738
SKU: CS2541930MPN: H738Alternate Part #: VER-H738UPC/EAN: 3606481925565
Current Switch w/Relay: Adjustable Trip Point, 1-135 Amp, 1.0A@30VAC/DC, 1A or less Minimum Trip Point, SPST, N.O. Relay, Solid-Core Housing, LED
$62.22
Unit3 in stock
Product Details
Current Switch w/Relay:
- Adjustable Trip Point* 1-135 Amperage Range* 1.0A@30VAC/DC* 1A or less Minimum Trip Point* SPST, N.O. Relay* 24VAC/DC Coil Voltage* Solid-Core Housing* LED Status Indicator* Relay Power LED* Sensor Power Induced from monitored conductor* Insulation Class 600VAC RMS* Frequency Range 50/60 HZ* Temperature Range -15 deg. to 60 deg. C (5 deg. to 140 deg. F)* Humidity Range 10-90% RH, non-condensing* Hysteresis 10% Typical* Terminal Block Maximum Wire Size 14 AWG* Terminal Block Torque (nominal) 4 in-lbs (0.45 N-m)* Agency Approvals UL 508 open device listing
Attributes
| Product or Component Type | sensor |
| Ambient Air Temperature for Operation | -15-60 °C |
| Product Certifications | UL |
| Type of Measurement | AC current |
| Device Application | building automation systems |
| Mounting Support | solid core housing |
| Sensor Type | current switch, AC |
| Relative Humidity | 10-90 % RH, non-condensing |
| Relay Type | mechanical |
| Network Frequency | 50…60 Hz |
| Switch Function | SPST |
| AWG Gauge | AWG 24…AWG 14 |
| Relay Coil Voltage | 24-24 V AC; 24-24 V DC |
| Output Current | 1 A at 30 V AC/DC |
| Current Measurement Range | 1…135 A |
| Load Type | inductive: 5 Aat250 V AC; inductive: 5 Aat30 V DC; resistive: 10 Aat250 V AC; resistive: 10 Aat30 V DC |
| Opening Diameter | 18 mm |
Specifications
| SKU | CS2541930 |
|---|---|
| MPN | H738 |
| Alternate Part # | VER-H738 |
| UPC/EAN | 3606481925565 |
