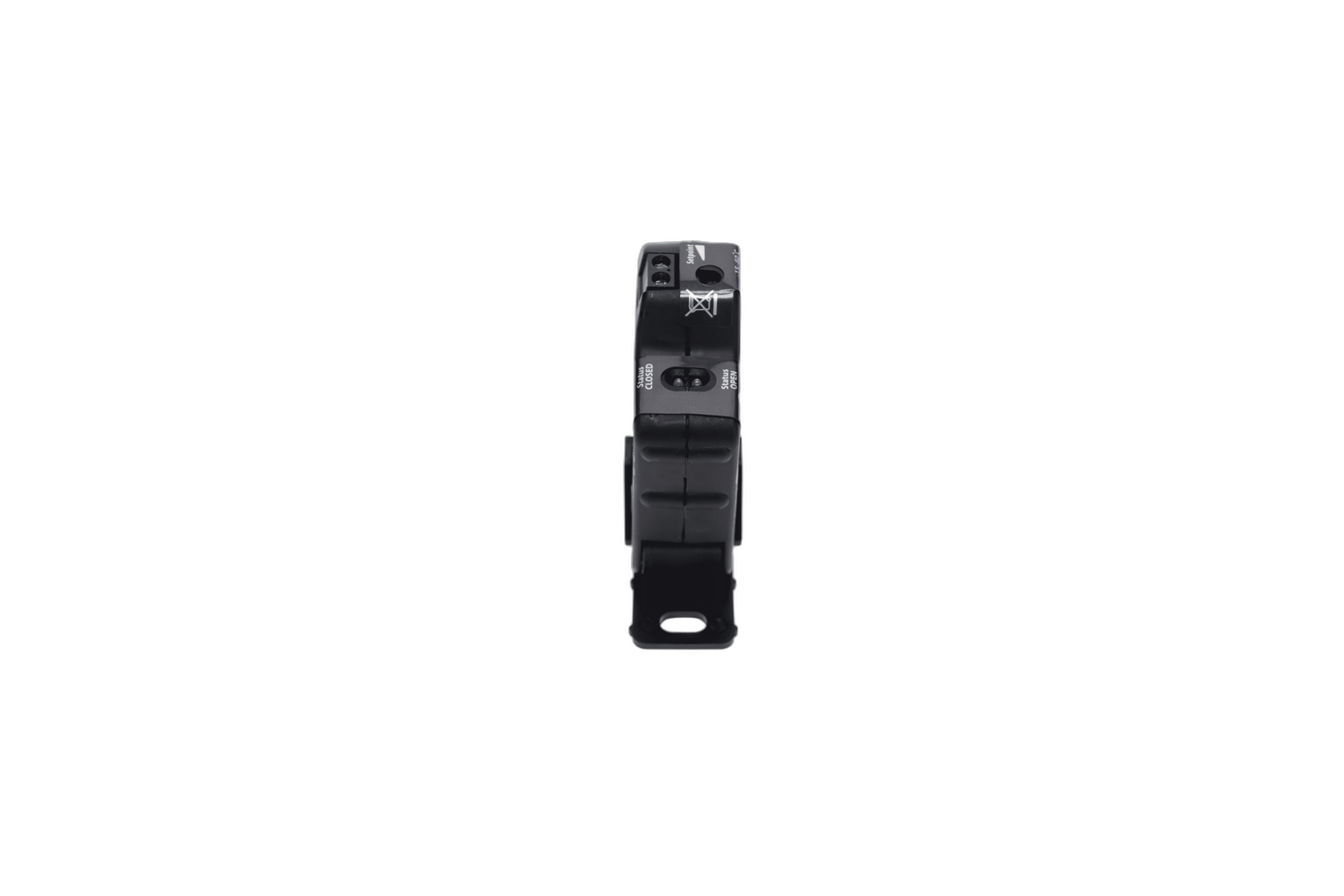

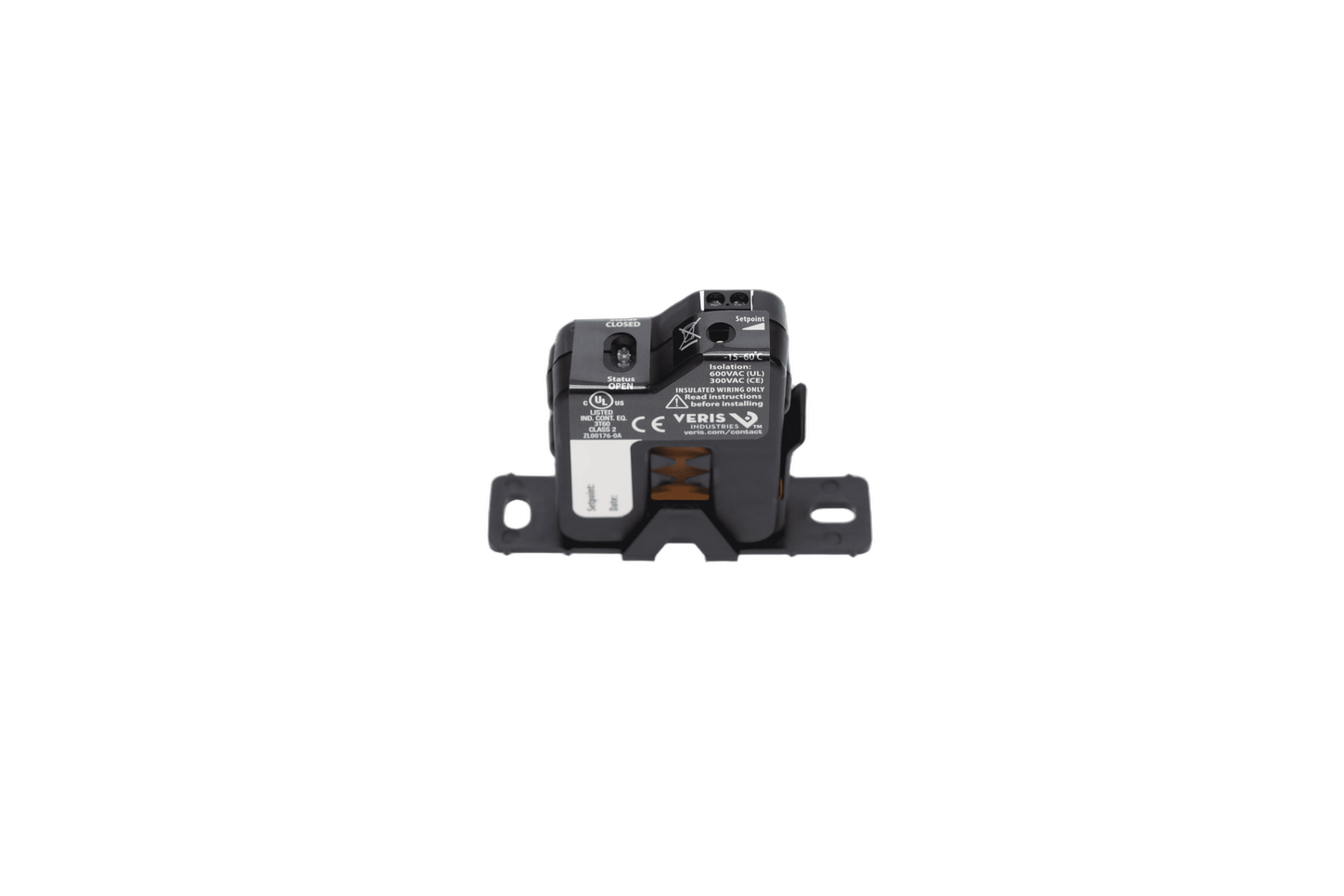

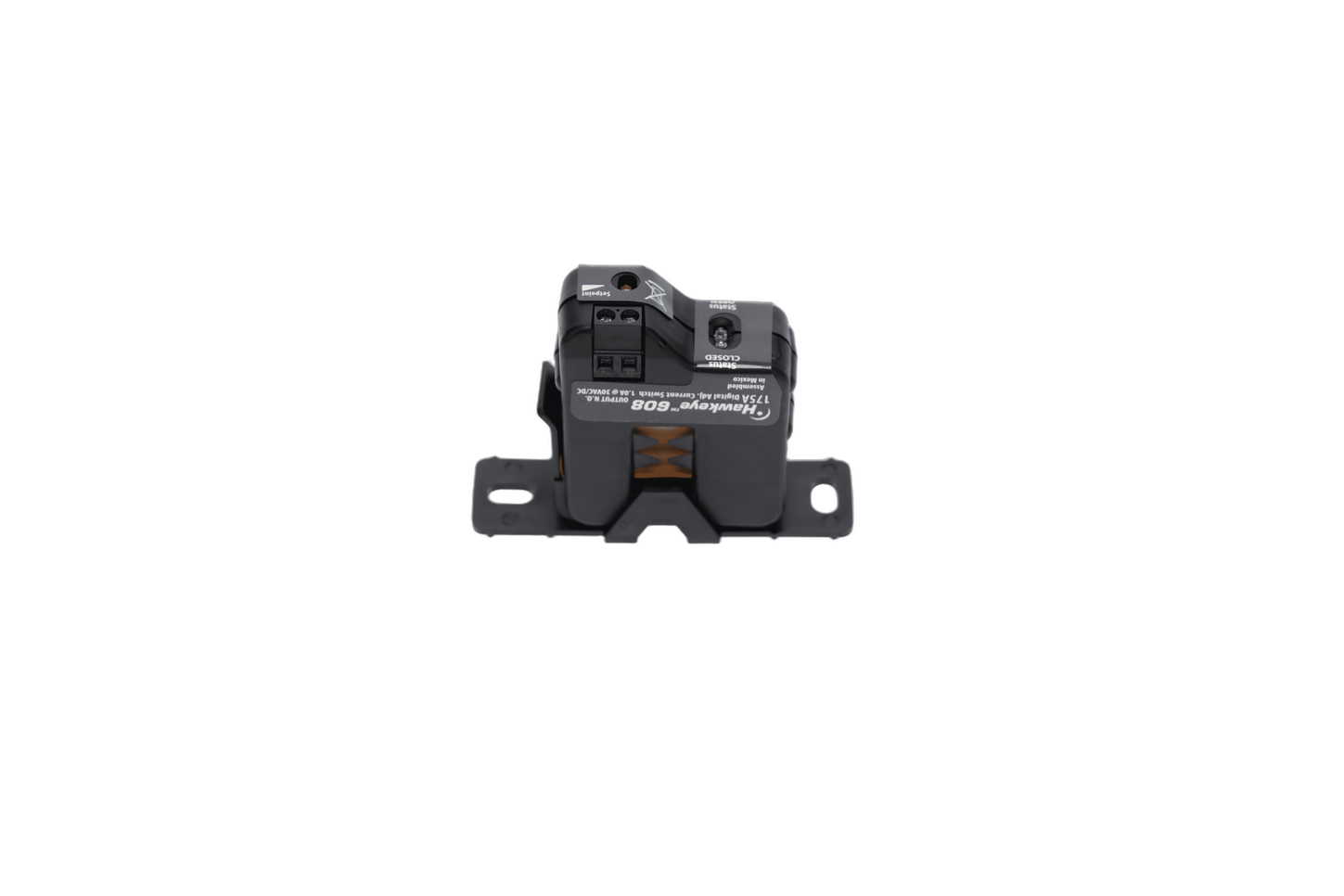

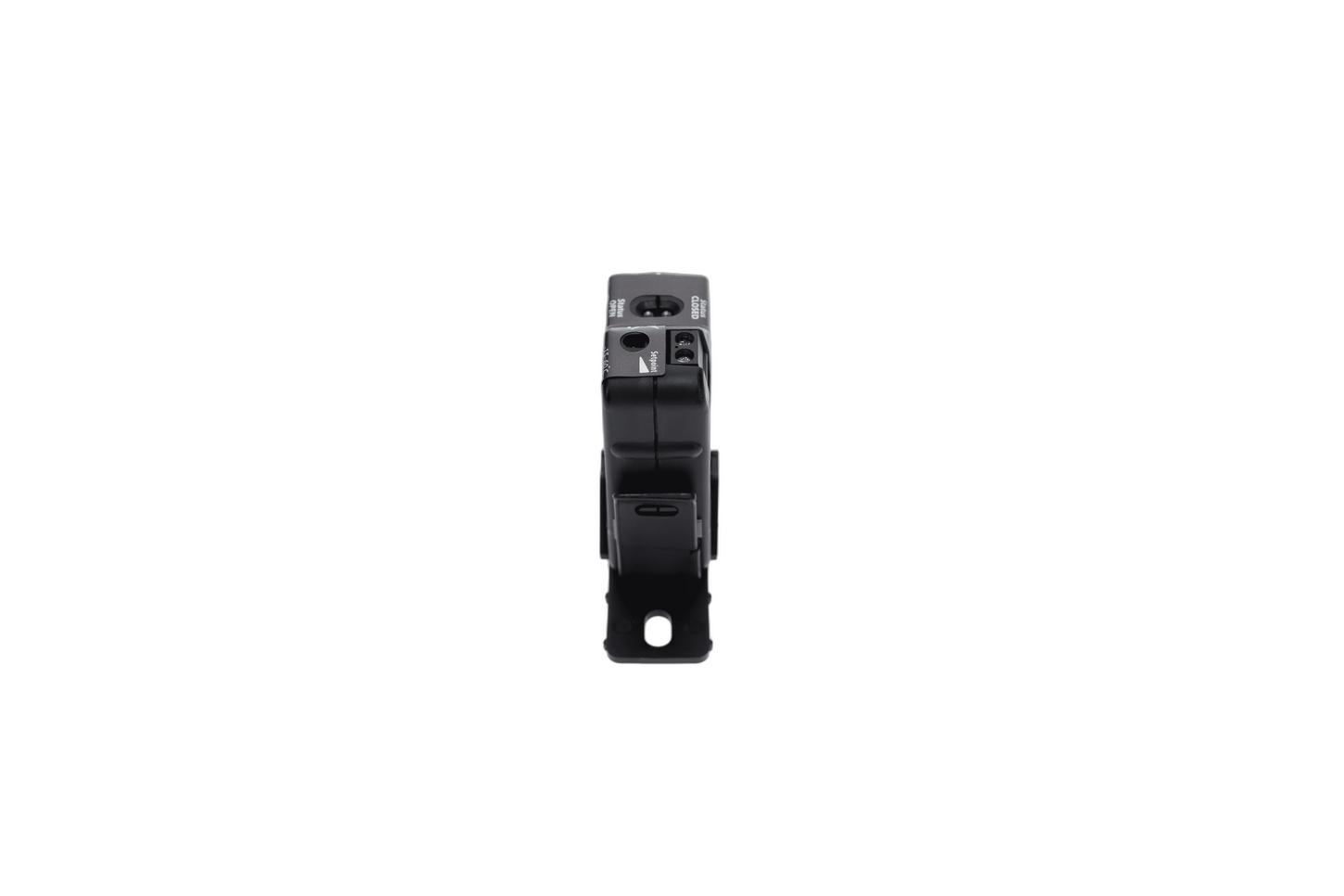

Veris H608
SKU: CS600778MPN: H608UPC/EAN: 3606489630379
Current Switch: Adjustable Trip Point, 0.5-175 Amp Range, Normally Open 1.0A@30VAC/DC, 0.5A or less Minimum Trip Point, Split-Core Housing, Status LED
$33.17
Unit17 in stock
Product Details
Current Switch:
- Adjustable Trip Point* 0.5-175 Amperage Range* Normally Open 1.0A@30VAC/DC* 0.5A or less Minimum Trip Point* Split-Core Housing* LED Status Indicator* Sensor Power Induced from monitored conductor* Insulation Class 600VAC RMS (UL), 300VAC RMS (CE)* Frequency Range 50/60 hz* Temperature Range -15 deg. to 60 deg. C (5 deg. to 140 deg. F)* Humidity Range 10-90% RH, non-condensing* Hysteresis 10% (typical)* Terminal Block Maximum Wire Size 14 AWG* Terminal Block Torque (nominal) 4 in-lbs (0.45 N-m)* Agency Approvals UL 508 open device listing CE: EN61010-1:2001-02, CAT III, deg. 2, basic insulation
Attributes
| Product or Component Type | sensor |
| Ambient Air Temperature for Operation | -15-60 °C |
| Product Certifications | UL; CE |
| Type of Measurement | AC current |
| Device Application | building automation systems |
| Mounting Support | split core housing |
| Sensor Type | current switch, AC |
| Relative Humidity | 10-90 % RH, non-condensing |
| Network Frequency | 50…60 Hz |
| AWG Gauge | AWG 24…AWG 14 |
| Output Current | 1 A at 30 V AC/DC |
| Current Measurement Range | 0.5…175 A |
| Opening Width | 12 mm |
Specifications
| SKU | CS600778 |
|---|---|
| MPN | H608 |
| UPC/EAN | 3606489630379 |
