Siemens SAS81.33U

Name: Siemens SAS81.33U
Brand: Siemens Building Technologies
SKU: CS3161812
Price: 346.29 USD
Availability: OutOfStock

SKU: CS3161812MPN: SAS81.33UUPC/EAN: 4034106331467

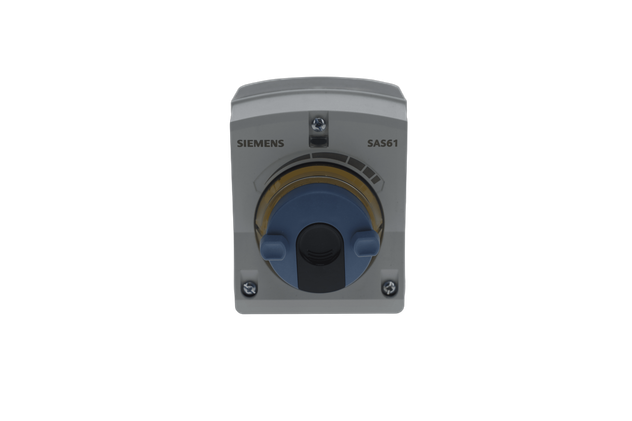

Powermite 599 MT Series SAS Electronic Valve Actuator, SR, 24V, Float Control

Siemens Building Technologies SAS61.03U, SAS81.03U, SAS81.33U

$346.29

Unit

Available on backorder

Quantity

remove

add

Product Details

The Powermite 599 MT Series SAS Electronic Valve Actuator requires a 24V supply and receives a floating control signal to provide three-position control of a valve. The spring return actuator works with Powermite 599 MT Series terminal unit valves with a 7/32 in. stroke.

Attributes

Ambient Humidity Operation	95 % r.h.
Ambient Temperature Operation	-5…55 °C
Fail Safe	Yes
Medium Temperature	1…130 °C
Operating Range	DC 0…10 V
Operating Voltage	24 VAC/DC
Position Feedback	DC 0…10 V (SA..6..)
Positioning Time	30 s
Power Consumption	2 VA
Spring Return Function	Spring return functionality
Stroke	5.5 mm
Supply Voltage	24 VAC
