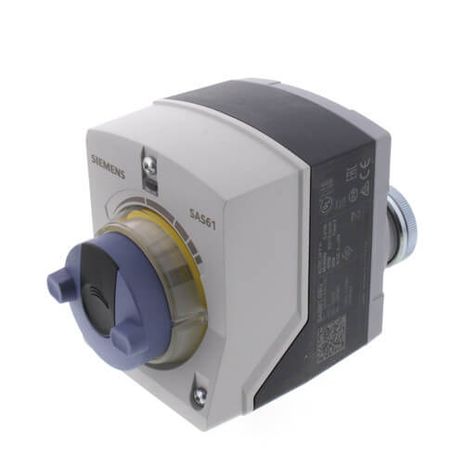

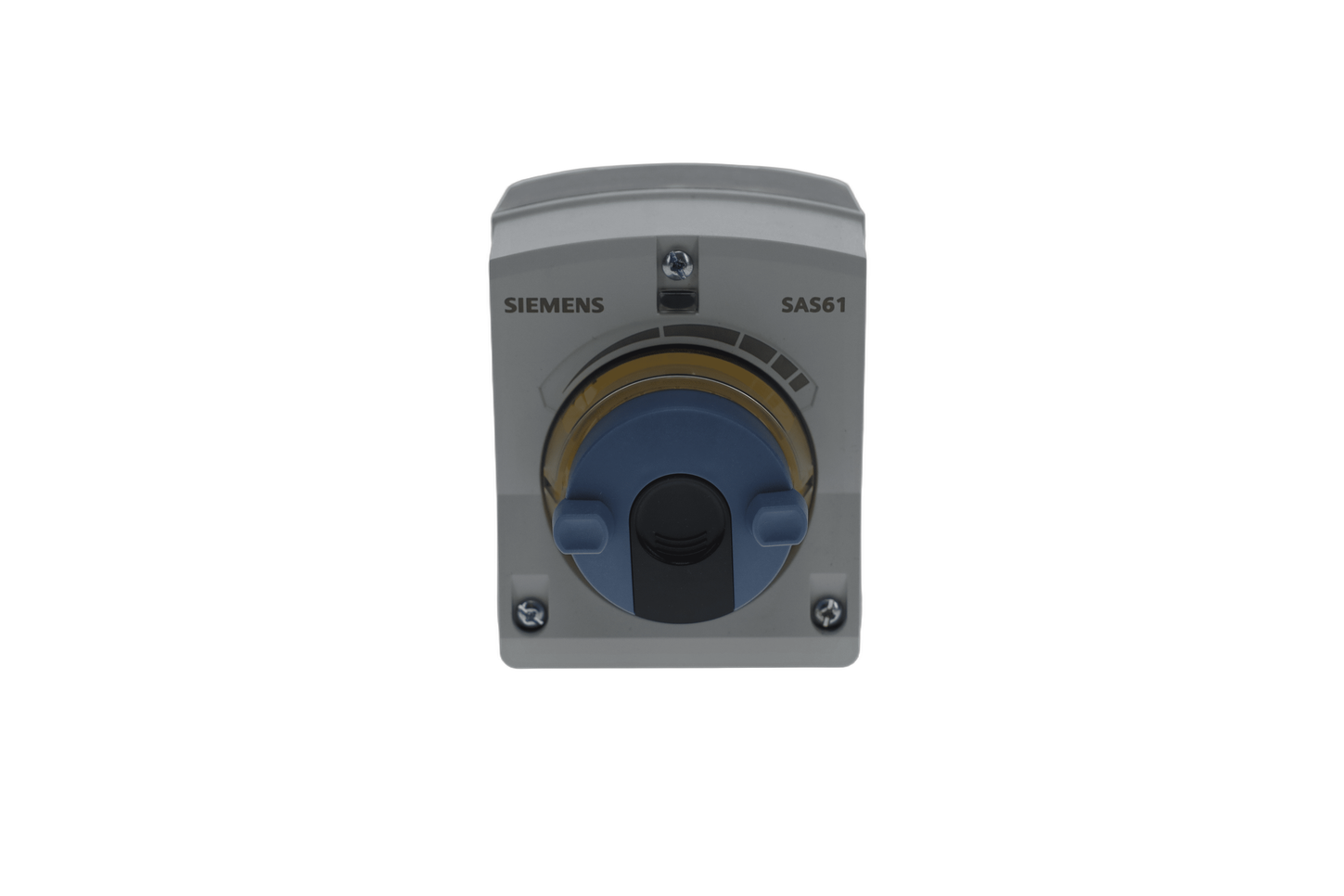

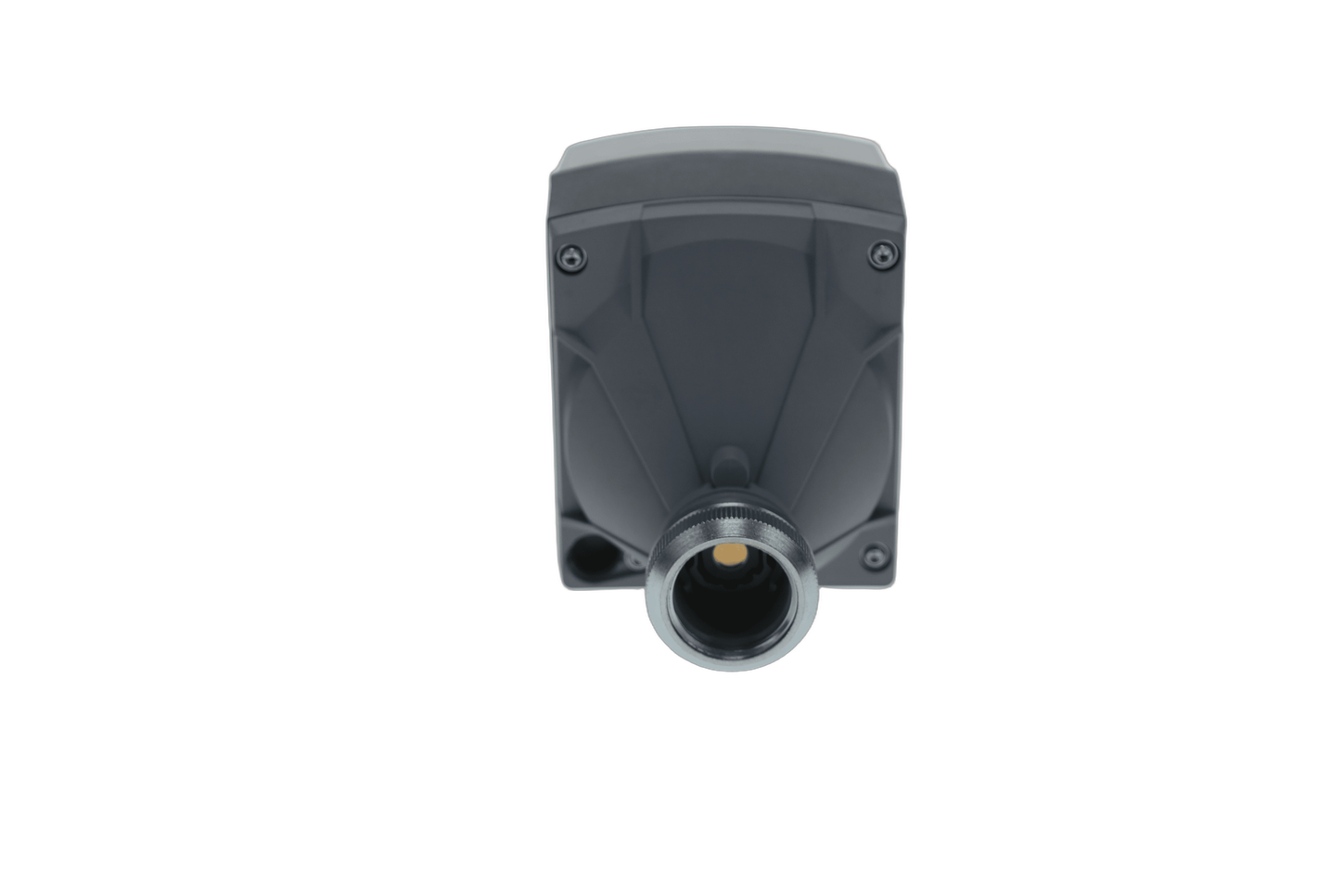

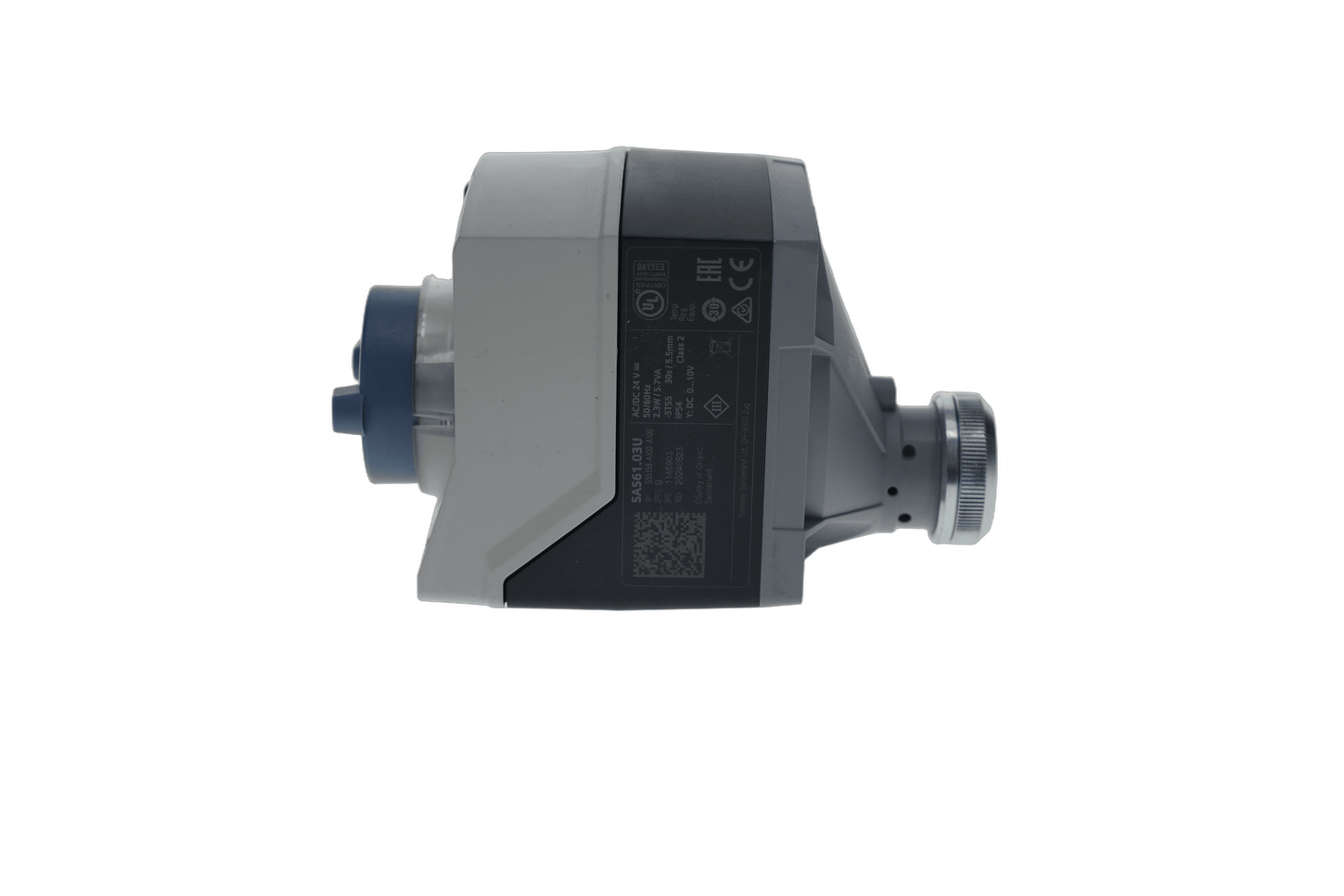

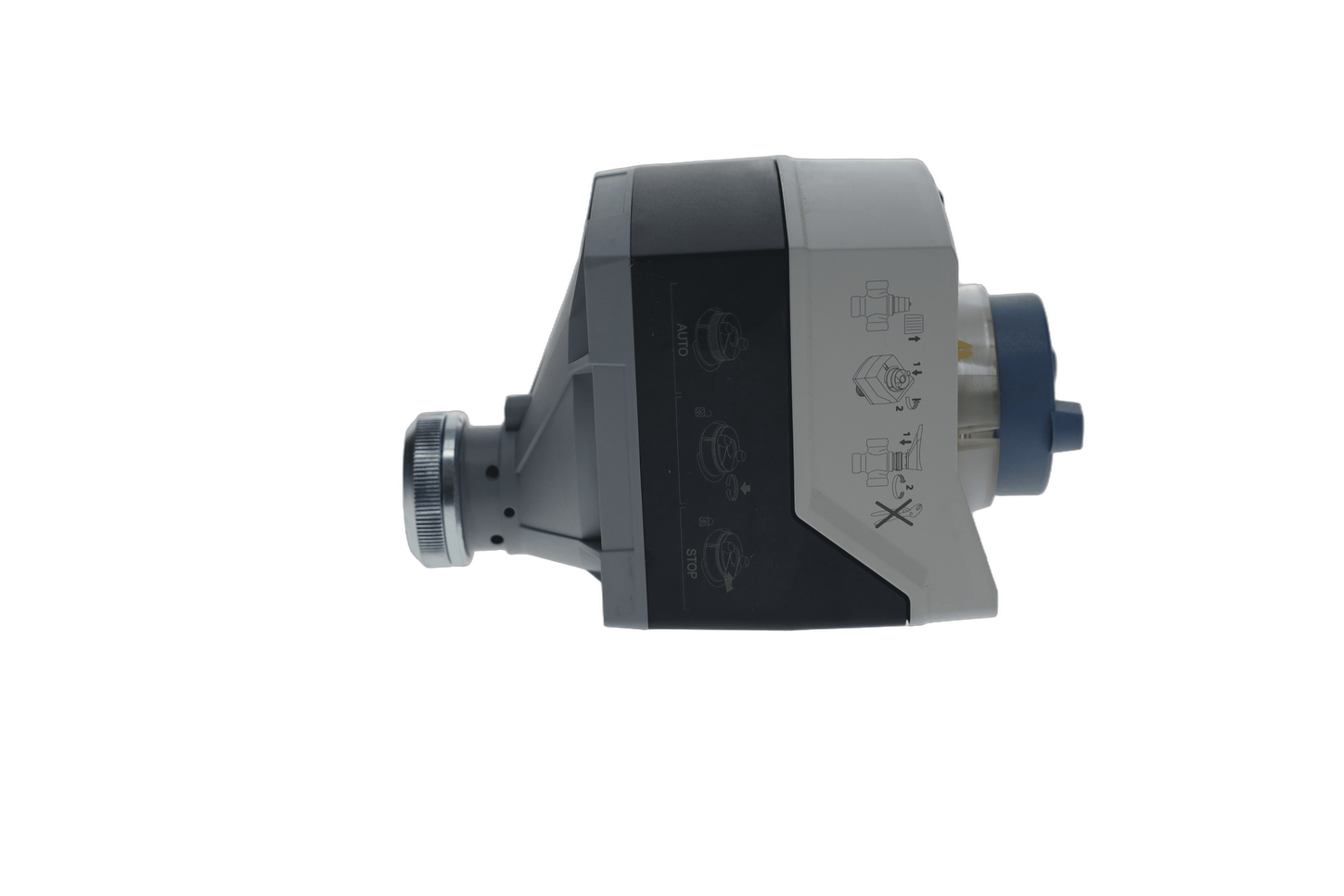

Siemens SAS61.03U
SKU: CS3085214MPN: SAS61.03UUPC/EAN: 4034106329136
MT Series SAS Electronic Valve Act, NSR, 24V, 0-10V / 4-20 mA Proport Control
$223.98
Unit57 in stock
Product Details
The Powermite 599 MT Series SAS Electronic Valve Actuator requires a 24V supply and receives a 0-10Vdc or 4 to 20 mA control signal to proportionally control a valve. The non-spring return actuator works with Powermite 599 MT Series terminal unit valves with a 7/32 in. stroke.
Attributes
| Ambient Humidity Operation | 95 % r.h. |
| Ambient Temperature Operation | -5…55 °C |
| Fail Safe | No |
| Medium Temperature | 1…130 °C |
| Operating Range | DC 0…10 V |
| Operating Voltage | 24 VAC/DC |
| Position Feedback | DC 0…10 V (SA..6..) |
| Positioning Time | 30 s |
| Power Consumption | 5.2 VA |
| Spring Return Function | Non-spring return functionality |
| Stroke | 5.5 mm |
| Supply Voltage | 24 VAC |
Specifications
| SKU | CS3085214 |
|---|---|
| MPN | SAS61.03U |
| UPC/EAN | 4034106329136 |
