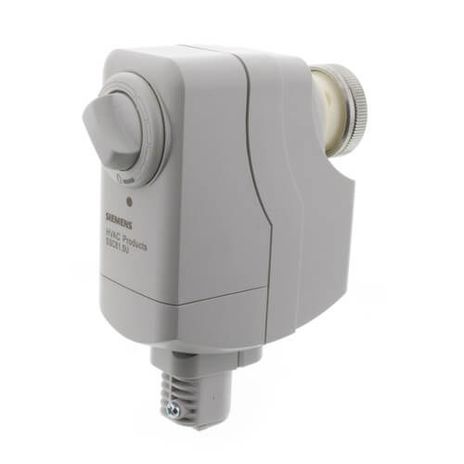

Siemens SSC61.5U
SKU: CS954865MPN: SSC61.5UUPC/EAN: 4034106330965
MT Series Actuator, 24 Vac, 0 to 10 Vdc control, SR. 300N.
Discontinued - Contact Us For Pricing & Availability
Product Details
Powermite MT Series actuator, 24 Vac, 0 to 10 Vdc spring return. Works with MT Series valves with 7/32-inch (5.5mm) stroke. UL listed for plenum installations, manual override with visual position indication. Provides 65 lb. (300 N) nominal force.
Attributes
| Ambient Humidity Operation | 90 % r.h. |
| Ambient Temperature Operation | 5…50 °C |
| Fail Safe | Yes |
| Medium Temperature | 1…110 °C; 41…122 ºF |
| Medium Temperature F Max | 122 ºF |
| Medium Temperature F Min | 41 ºF |
| Operating Voltage | 24 VAC/DC |
| Spring Return Function | Spring return functionality |
| Supply Voltage | 24 VAC |
Specifications
| SKU | CS954865 |
|---|---|
| MPN | SSC61.5U |
| UPC/EAN | 4034106330965 |
