Siemens SAS61.33U
SKU: CS3749067MPN: SAS61.33UUPC/EAN: 7612914083210
MT Series SAS Electronic Valve Act, SR, 24V, 0-10V / 4-20 mA Proport Control
$310.48
Unit108 in stock
Product Details

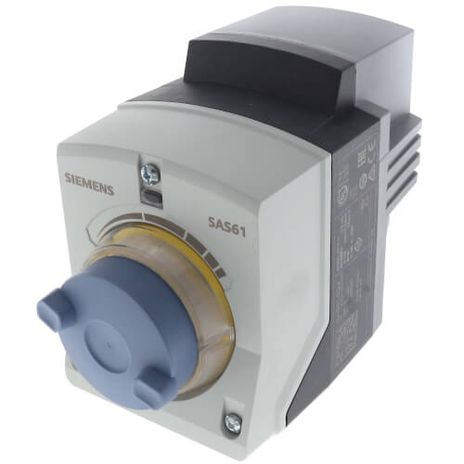

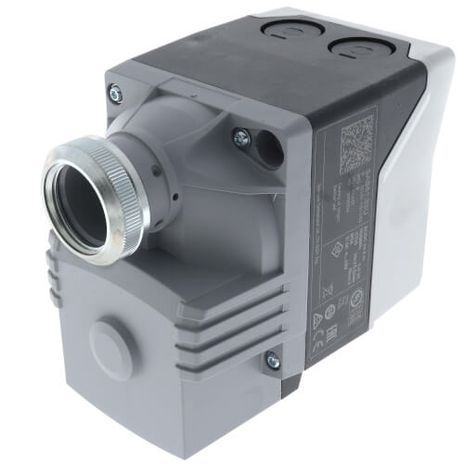

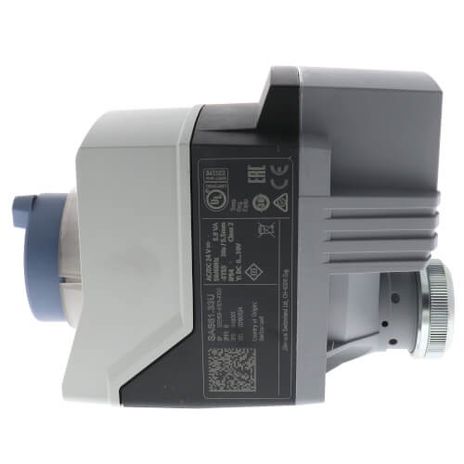

The Powermite 599 MT Series SAS Electronic Valve Actuator requires a 24V supply and receives a 0-10Vdc or 4 to 20 mA control signal to proportionally control a valve. The spring return actuator works with Powermite 599 MT Series terminal unit valves with a 7/32 in. stroke.
Attributes
| Ambient Humidity Operation | 95 % r.h. |
| Ambient Temperature Operation | -5…55 °C |
| Fail Safe | Yes |
| Frequency | 50/60 |
| Medium Temperature | 1…130 °C |
| Operating Range | DC 0…10 V |
| Operating Voltage | 24 VAC/DC |
| Position Feedback | DC 0…10 V (SA..6..) |
| Positioning Time | 30 s |
| Power Consumption | 3 VA |
| Spring Return Function | Spring return functionality |
| Stroke | 5.5 mm |
| Supply Voltage | 24 VAC |
Specifications
| SKU | CS3749067 |
|---|---|
| MPN | SAS61.33U |
| UPC/EAN | 7612914083210 |
