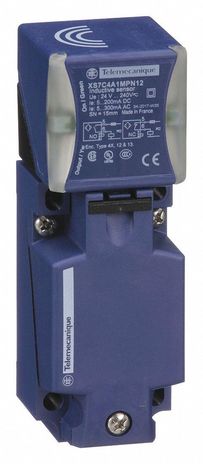

Square D XS7C4A1MPN12

Name: Square D XS7C4A1MPN12
Brand: Square D
SKU: CS236820
Availability: OutOfStock

SKU: CS236820MPN: XS7C4A1MPN12

Inductive proximity sensors XS, inductive sensor XS7 40x40x117, PBT, Sn15 mm, 24...240VAC/DC, terminals

Product Details

Inductive sensor, XS7, 40x40x117, PBT, sensing 15 mm, 24 to 240 VAC/DC, terminals

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Detection Face	5 positions turret head
Detector Flush Mounting Acceptance	flush mountable
Device Application	-
Differential Travel	3…15% of Sr
Discrete Output Function	1 NO or 1 NC programmable
Enclosure Material	PBT
Front Material	PBT
Marking	CE
Marking 1	CE
Material	plastic
Maximum Delay First Up	7.5 ms
Maximum Delay Recovery	1.8 ms
Maximum Delay Response	1.2 ms
Operating Zone	0-12 mm
Output Circuit Type	AC/DC
Product Certifications	CSA# #CCC# #UL
Range Of Product	Telemecanique Inductive proximity sensors XS
Repeat Accuracy	<= 3% of Sr
Repeat Accuracy 1	<= 3% of Sr
Sensor Design	form 40 x 40 x 117
Sensor Name	XS7
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	117 mm
Type Of Output Signal	discrete
Wiring Technique	2-wire
