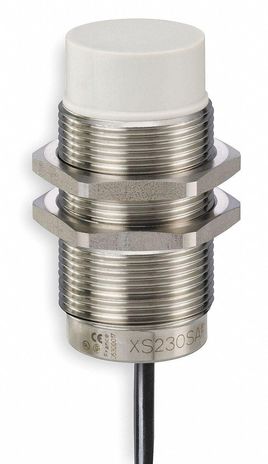

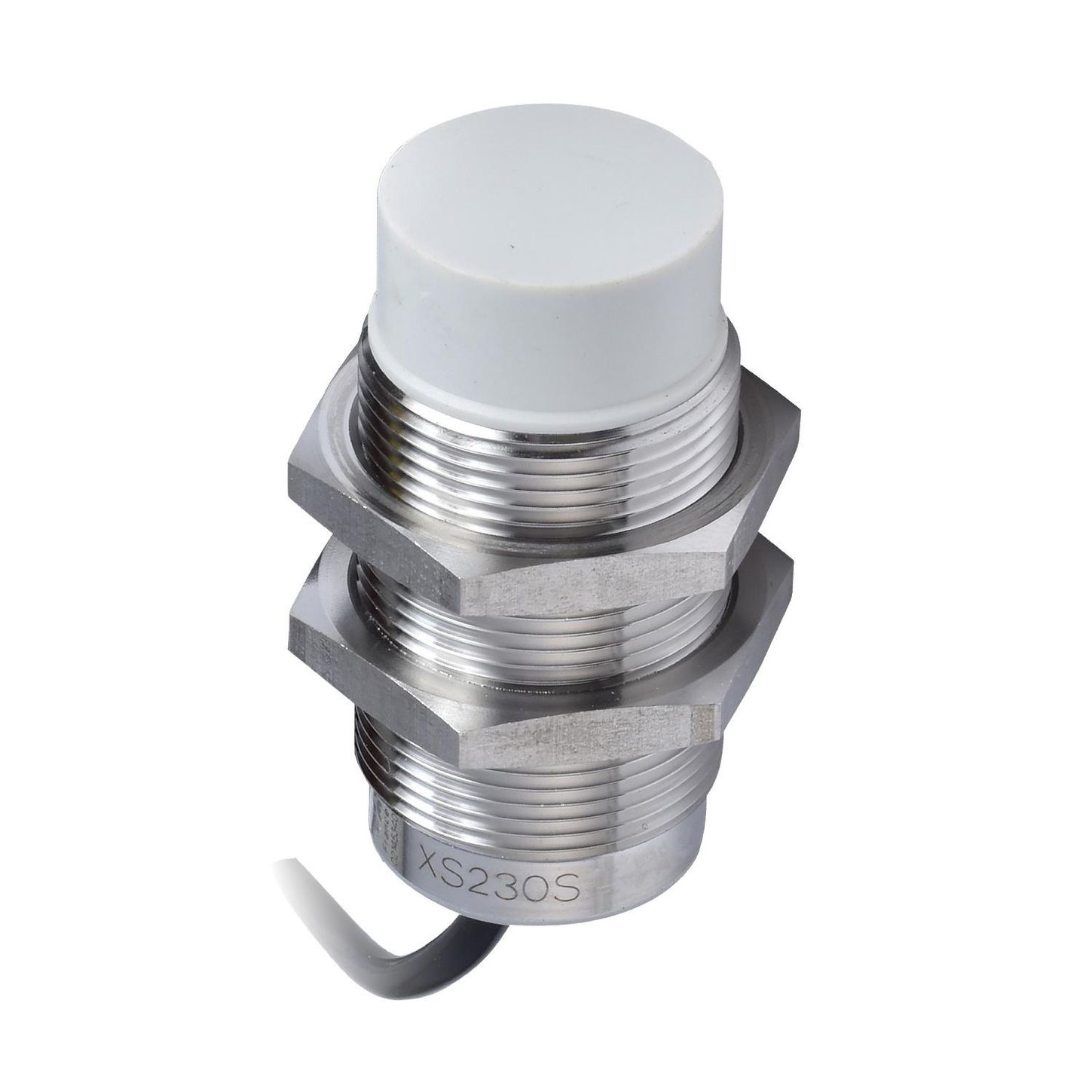

Square D XS230SAMAL2

Name: Square D XS230SAMAL2
Brand: Square D
SKU: CS1681358
Availability: OutOfStock

SKU: CS1681358MPN: XS230SAMAL2

Inductive proximity sensors XS, inductive sensor XS2 M30, L63mm, stainless, Sn22mm, 24...240VAC/DC, L2m

Product Details

Inductive sensor XS2 M30 - L63mm - stainless - Sn22mm - 24..240VAC/DC - L2m

Ambient Air Temperature For Operation	-25-85 °C
Ambient Air Temperature For Operation 1	-25-85 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Cable Composition	2 x 0.34 mm²
Detection Face	frontal
Detector Flush Mounting Acceptance	non flush mountable
Device Application	food and beverage
Differential Travel	1…15% of Sr
Discrete Output Function	1 NO
Enclosure Material	stainless steel 316 L
Front Material	PPS
Market Segment	pharmaceutical
Marking	CE
Marking 1	CE
Material	stainless steel
Maximum Delay First Up	30 ms
Maximum Delay Recovery	2 ms
Maximum Delay Response	0.5 ms
Operating Zone	0-17.6 mm
Output Circuit Type	AC/DC
Product Certifications	UL# #CCC# #CSA
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensing Range	> 15…40 mm
Sensor Design	cylindrical M30
Sensor Name	XS2
Sensor Type	inductive proximity sensor
Series Name	Application
Size	63 mm
Thread Type	M30 x 1.5
Type Of Output Signal	discrete
Wire Insulation Material	PVC
Wiring Technique	2-wire
