Square D XS8C4A1PCN12

Name: Square D XS8C4A1PCN12
Brand: Square D
SKU: CS2547447
Availability: OutOfStock

SKU: CS2547447MPN: XS8C4A1PCN12Alternate Part #: SQD-XS8C4A1PCN12

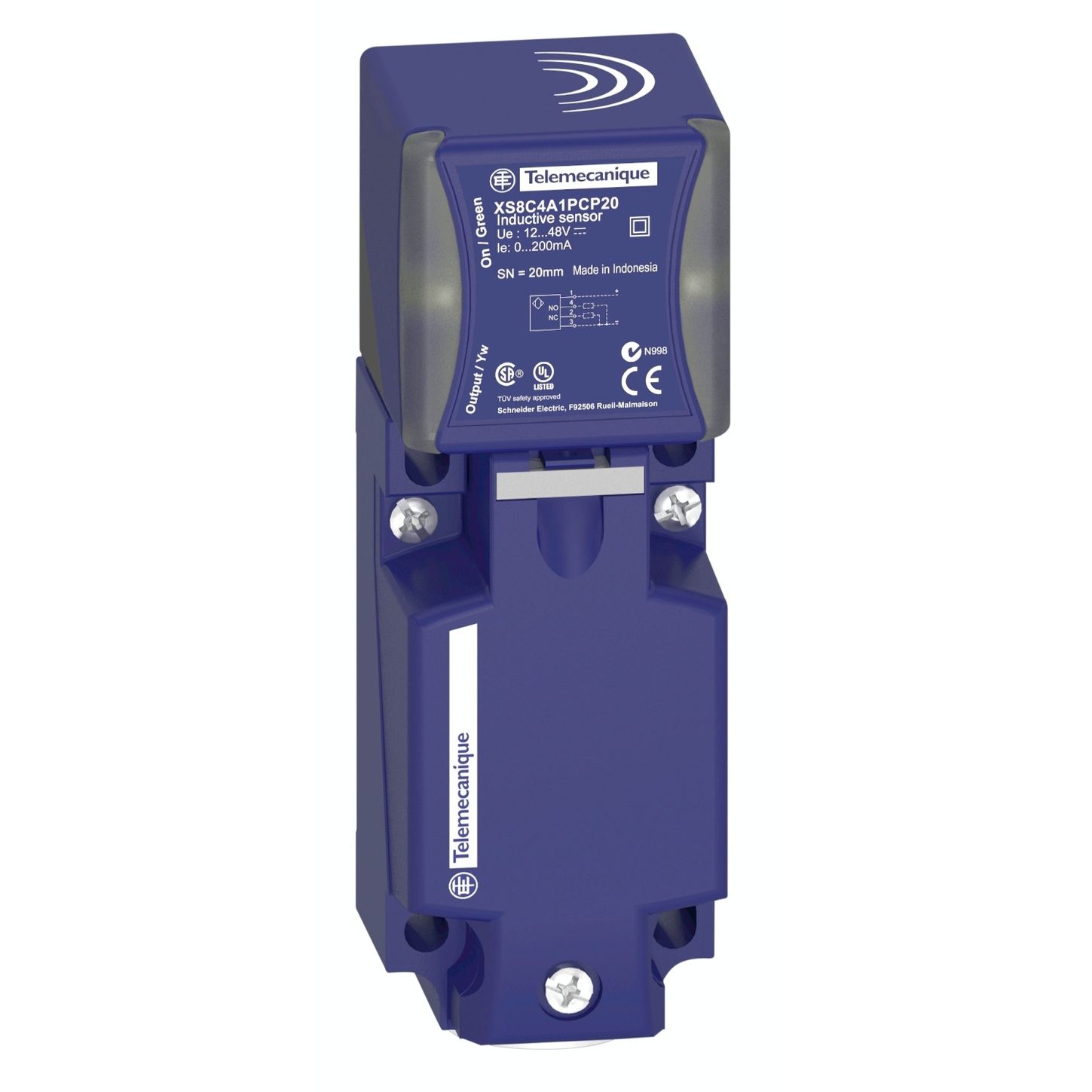

Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn20 mm, 12...48 VDC, terminals

Product Details

Inductive sensor XS8 40x40x117, PBT, Sn20 mm, 12..48VDC, terminals

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Detection Face	5 positions turret head
Detector Flush Mounting Acceptance	flush mountable
Device Application	mobile equipment
Differential Travel	3…15% of Sr
Discrete Output Function	1 NO + 1 NC
Discrete Output Type	PNP
Enclosure Material	PBT
Front Material	PBT
Marking	CE
Marking 1	CE
Material	plastic
Maximum Delay First Up	7.5 ms
Maximum Delay Recovery	1.8 ms
Maximum Delay Response	1.2 ms
Operating Zone	0-16 mm
Output Circuit Type	DC
Product Certifications	TÜV# #CSA# #UL# #E2# #CCC
Range Of Product	Telemecanique Inductive proximity sensors XS
Repeat Accuracy	<= 3% of Sr
Repeat Accuracy 1	<= 3% of Sr
Sensor Design	form 40 x 40 x 117
Sensor Name	XS8
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	117 mm
Type Of Output Signal	discrete
Wiring Technique	4-wire
