Square D XB4BG61

Name: Square D XB4BG61
Brand: Square D
SKU: CS1679799
Price: 123.82 USD
Availability: OutOfStock

SKU: CS1679799MPN: XB4BG61

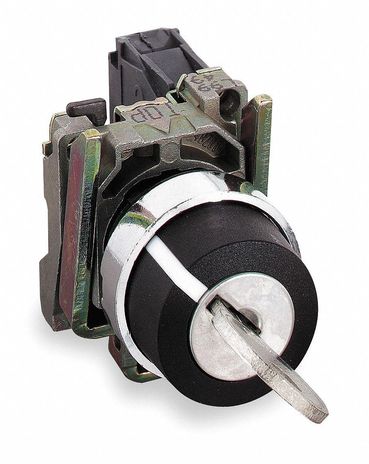

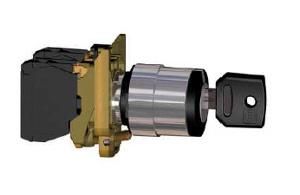

Key selector switch, Harmony XB4, metal, black, 22mm, key 455, 2 positions, spring return right to left, 1NO

$123.82

Unit

Available on backorder

Quantity

remove

add

Product Details

Complete selector switch Ø22 2-position spring return 1NO Ronis 455

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Key Withdrawal Position	left-hand
Mechanical Durability	1000000 cycles
Mounting Diameter	22 mm
Operator Position Information	2 positions 90°
Product Certifications	LROS (Lloyds register of shipping)# #CSA# #UL# #DNV# #BV# #GL
Product Or Component Type	selector switch
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	JIS C8201-5-1# #EN/IEC 60947-1# #CSA C22.2 No 14# #EN/IEC 60947-5-1# #EN/IEC 60947-5-4# #EN/IEC 60947-5-5# #UL 508# #JIS C8201-1
Terminals Description Iso N 1	(13-14)NO
Type Of Keylock	Ronis 455
