Square D XB4BJ53

Name: Square D XB4BJ53
Brand: Square D
SKU: CS1679792
Price: 75.37 USD
Availability: OutOfStock

SKU: CS1679792MPN: XB4BJ53

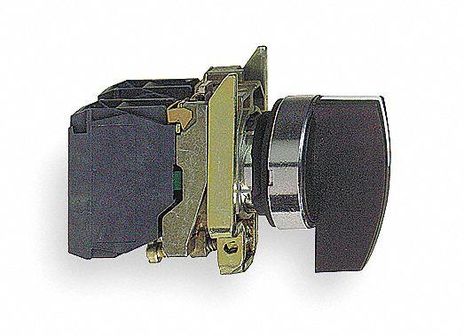

Selector switch, Harmony XB4, metal, black, 22mm, long handle, 3 position, stay put, 2NO

$75.37

Unit

Available on backorder

Quantity

remove

add

Product Details

Harmony Black Selector Switch

Mounting Diameter: 22mm* Operator Position Information: 3-Positions +/- 45 deg.* Type of Operator: Spring Return to Center* Contacts Type and Composition: 2 NO* Rated Insulation Voltage: 600V conforming to EN 60947-1

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	2 NO
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Mechanical Durability	1000000 cycles
Mounting Diameter	22 mm
Operator Position Information	3 positions ± 45°
Product Certifications	CSA# #LROS (Lloyds register of shipping)# #BV# #DNV# #UL# #GL
Product Or Component Type	selector switch
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60947-5-4# #EN/IEC 60947-1# #CSA C22.2 No 14# #JIS C8201-5-1# #EN/IEC 60947-5-5# #UL 508# #EN/IEC 60947-5-1# #JIS C8201-1
Terminals Description Iso N 1	(23-24)NO# #(13-14)NO
