Square D XB4BA55

Name: Square D XB4BA55
Brand: Square D
SKU: CS1667613
Availability: OutOfStock

SKU: CS1667613MPN: XB4BA55

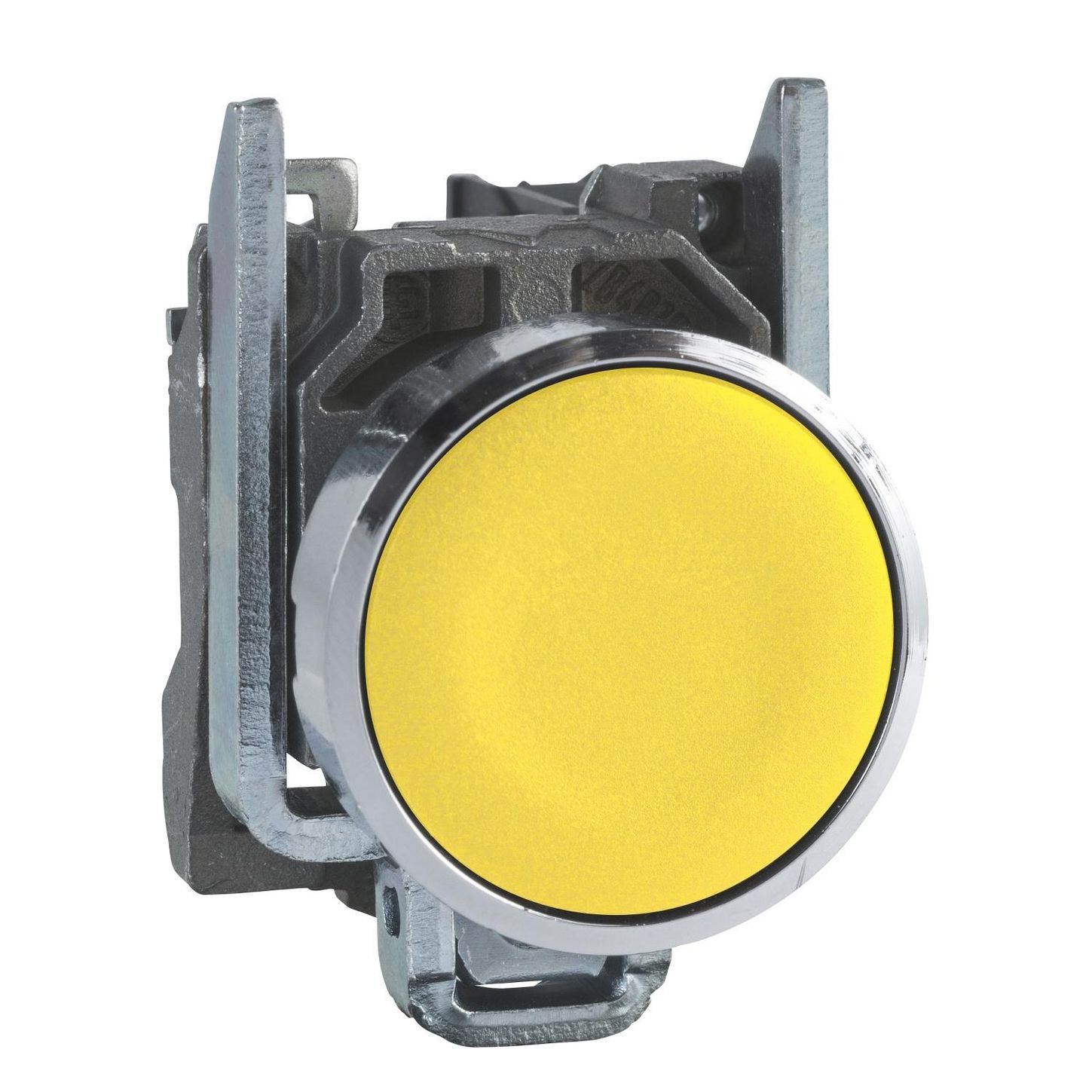

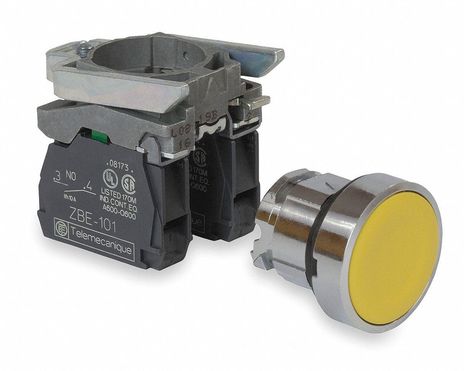

Push button, Harmony XB4, yellow flush, metal, 22mm, spring return, 1NO + 1NC, unmarked

Product Details

Harmony XB4, 22mm PB, yellow, with contacts

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Product Certifications	CSA# #GL# #BV# #DNV# #LROS (Lloyds register of shipping)# #UL listed
Product Or Component Type	push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60947-5-4# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #EN/IEC 60947-5-5# #EN/IEC 60947-1# #UL 508# #JIS C8201-5-1# #JIS C8201-1
Terminals Description Iso N 1	(11-12)NC
