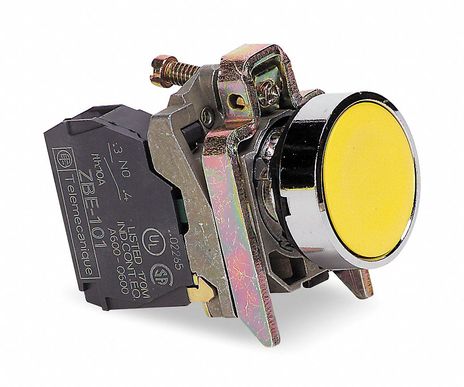

Square D XB4BA51

Name: Square D XB4BA51
Brand: Square D
SKU: CS1677013
Availability: OutOfStock

SKU: CS1677013MPN: XB4BA51

Push button, Harmony XB4, metal, flush, yellow, 22mm, spring return, unmarked, 1NO

Product Details

This Harmony XB4 modular yellow push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Attributes

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Product Certifications	UL listed# #DNV# #LROS (Lloyds register of shipping)# #BV# #GL# #CSA
Product Or Component Type	push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	UL 508# #EN/IEC 60947-1# #JIS C8201-5-1# #CSA C22.2 No 14# #EN/IEC 60947-5-4# #EN/IEC 60947-5-5# #EN/IEC 60947-5-1# #JIS C8201-1
Terminals Description Iso N 1	(13-14)NO
