Square D ZB4BW543

Name: Square D ZB4BW543
Brand: Square D
SKU: CS4178584
Price: 31.40 USD
Availability: OutOfStock

SKU: CS4178584MPN: ZB4BW543

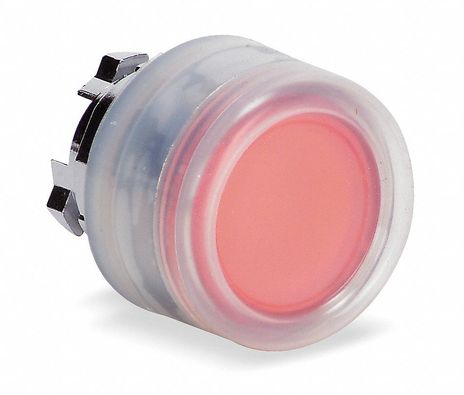

Head for illuminated push button, Harmony XB4, metal, red flush, 22mm, universal LED, spring return, clear boot, unmarked

$31.40

Unit

Available on backorder

Quantity

remove

add

Product Details

Red Flush Illuminated Pushbutton head Ø22 spring return for integral LED

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Device Presentation	basic sub-assemblies
Device Short Name	ZB4
Head Type	standard
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Operator Additional Information	clear boot
Product Certifications	DNV# #LROS (Lloyds register of shipping)# #UL listed# #CSA# #BV# #GL
Product Compatibility	integral LED
Product Or Component Type	head for illuminated push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	JIS C8201-5-1# #UL 508# #EN/IEC 60947-5-5# #CSA C22.2 No 14# #EN/IEC 60947-5-1# #EN/IEC 60947-1# #EN/IEC 60947-5-4# #JIS C8201-1
