Square D ZB4BC44

Name: Square D ZB4BC44
Brand: Square D
SKU: CS4814202
Availability: OutOfStock

SKU: CS4814202MPN: ZB4BC44

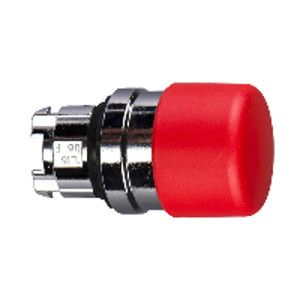

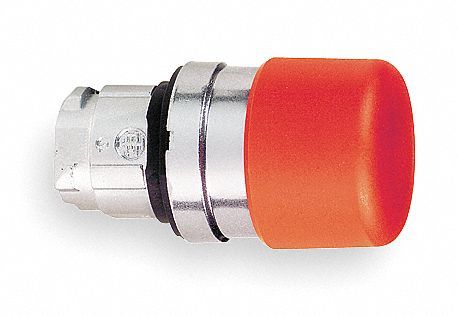

Head for non illuminated pushbutton, Harmony XB4, mushroom 30mm, metal, red, 22mm, spring return

Product Details

Harmony XB5 Mushroom Pushbutton Head

Mounting Diameter: 22mm* Shape of Signaling Head: Round* Type of Operator: Spring Return* Operator Profile: Red mushroom 30mm unmarked* Degree of Protection: NEMA 13, 4X

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Device Presentation	basic element
Device Short Name	ZB4
Head Type	standard
Mechanical Durability	5000000 cycles
Mounting Diameter	22 mm
Product Certifications	GL# #BV# #LROS (Lloyds register of shipping)# #UL listed# #DNV# #CSA
Product Or Component Type	head for non-illuminated push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60947-5-5# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #EN/IEC 60947-5-4# #EN/IEC 60947-1# #JIS C8201-5-1# #UL 508# #JIS C8201-1
