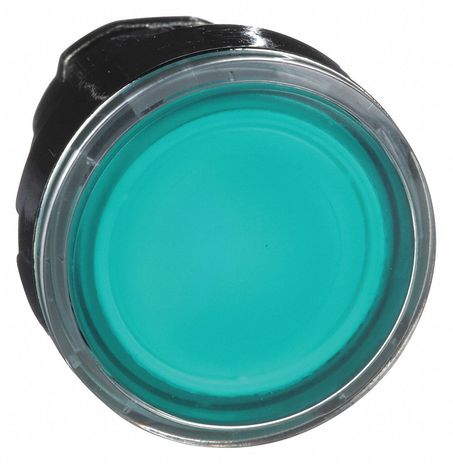

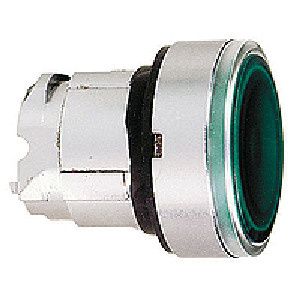

Square D ZB4BW333

Name: Square D ZB4BW333
Brand: Square D
SKU: CS1674435
Price: 13.68 USD
Availability: InStock

SKU: CS1674435MPN: ZB4BW333UPC/EAN: 3389110889802

Head for illuminated push button, Harmony XB4, metal, green flush, 22mm, universal LED, spring return, plan lens

$13.68

Unit

10+ Units Available at Factory - Ships Same/Next Business Day

Quantity

remove

add

Product Details

Green Flush illuminated pushbutton head 22mm spring return for integral LED

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Device Presentation	basic sub-assemblies
Device Short Name	ZB4
Head Type	standard
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Operator Additional Information	with plain lens
Product Certifications	GL# #BV# #LROS (Lloyds register of shipping)# #DNV# #UL listed# #CSA
Product Compatibility	integral LED
Product Or Component Type	head for illuminated push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60947-5-5# #UL 508# #JIS C8201-5-1# #EN/IEC 60947-5-4# #EN/IEC 60947-1# #CSA C22.2 No 14# #EN/IEC 60947-5-1# #JIS C8201-1
