Square D XB4BA45

Name: Square D XB4BA45
Brand: Square D
SKU: CS1198264
Price: 56.52 USD
Availability: OutOfStock

SKU: CS1198264MPN: XB4BA45

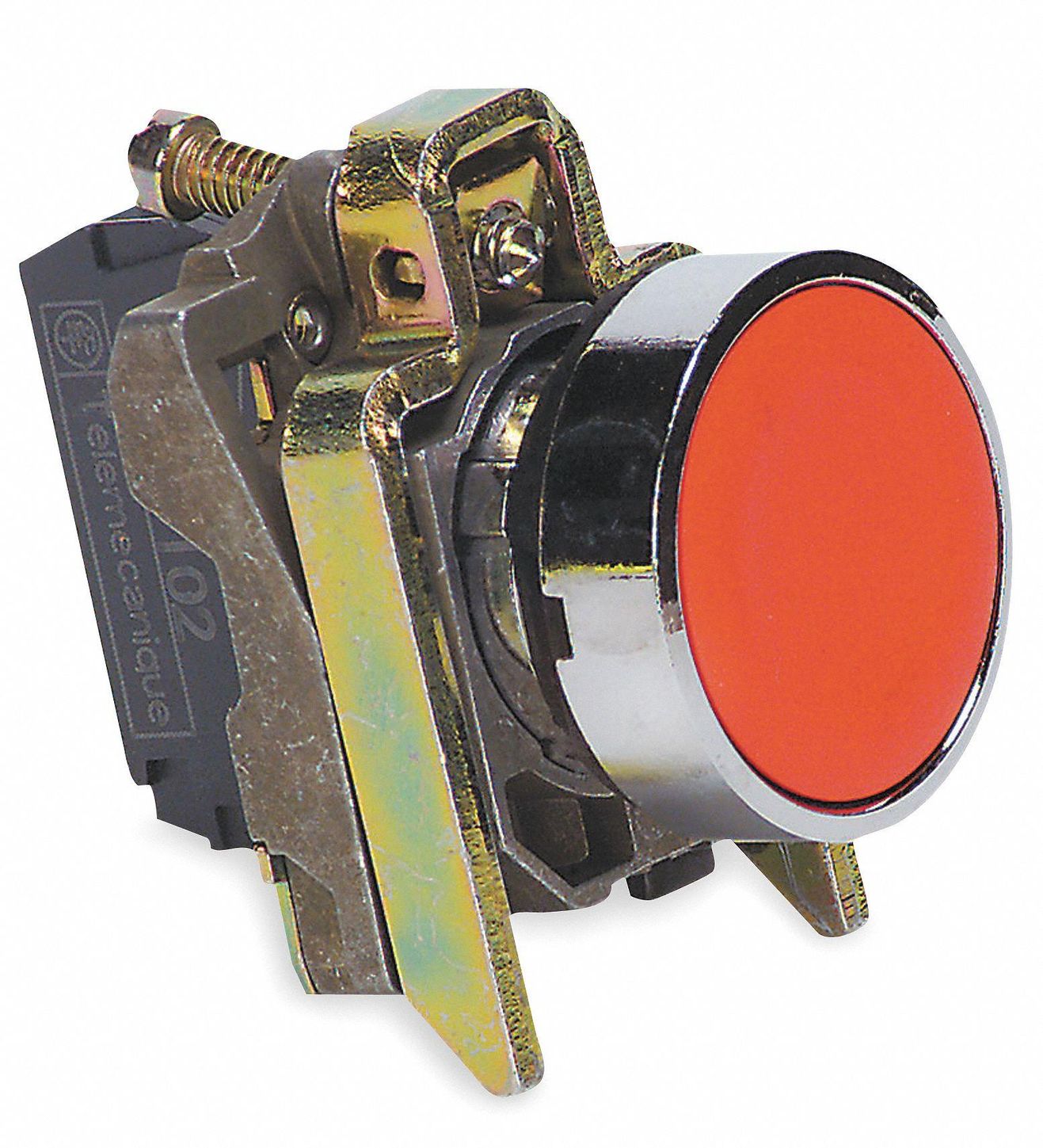

Push button, Harmony XB4, metal, flush, red, 22mm, spring return, unmarked, 1NO+1NC

$56.53

Unit

Available on backorder

Quantity

remove

add

Product Details

Red Flush Complete Pushbutton XB4 - 22 mm - 1NO + 1NC - Spring Return

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Product Certifications	GL# #UL listed# #CSA# #LROS (Lloyds register of shipping)# #DNV# #BV
Product Or Component Type	push-button
Protective Treatment	TH
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60947-1# #EN/IEC 60947-5-4# #JIS C8201-5-1# #EN/IEC 60947-5-1# #EN/IEC 60947-5-5# #UL 508# #CSA C22.2 No 14# #JIS C8201-1
Terminals Description Iso N 1	(13-14)NO
