Eaton 1356A-6503

Name: Eaton 1356A-6503
Brand: Eaton
SKU: CS982388
Price: 824.82 USD
Availability: OutOfStock

SKU: CS982388MPN: 1356A-6503Alternate Part #s: 1356A-6503EAT-1356A-6503UPC/EAN: 782114106907

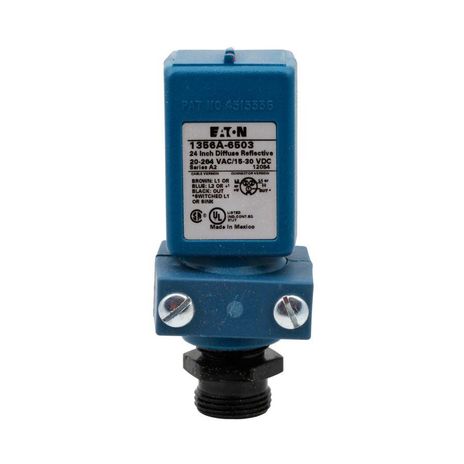

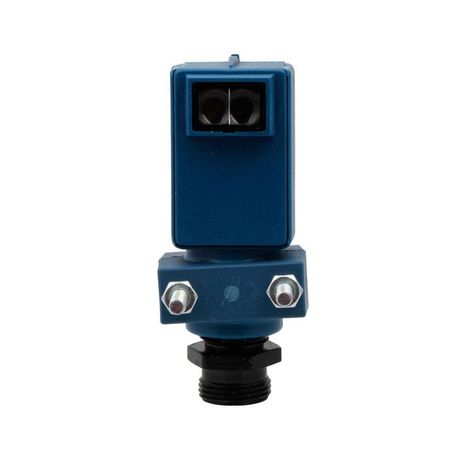

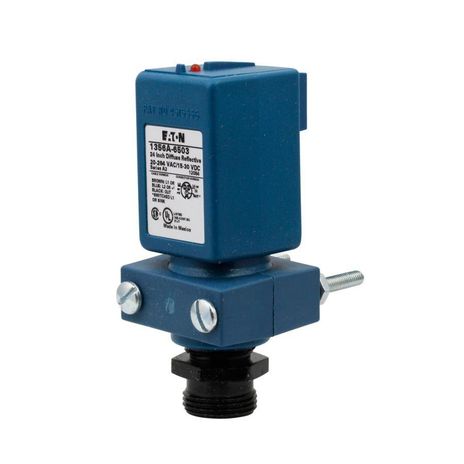

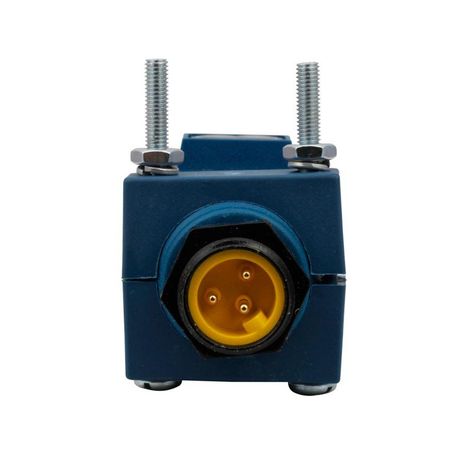

Eaton 55 series photoelectric sensor

$824.82

Unit

Available on backorder

Quantity

remove

add

Product Details

Eaton Photoelectric Sensor, Diffuse Reflective, 24 in range, Forward Viewing, Light, Output status, Mini, 300 mA AC/DC at 20-264 Vac/15-30 Vdc, 3 pin, AC: L1 switched, DC: NPN open collector, 20-264 Vac/15-30 Vdc

Attributes

Connection	Mini
Contact Configuration	AC: L1 switched DC: NPN open collector
Contact Rating	300 mA AC/DC at 20-264 Vac/15-30 Vdc
Enclosure Material	Noryl
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 12, NEMA 13
Input Voltage	20-264 Vac, 15-30 Vdc
Led Indicator	Output status
Maximum Ac Current	300 mA
Maximum Dc Current	300 mA
Number Of Pins	3.0000
Operating Mode	Light
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Sensor Type	Diffuse reflective
