Eaton 1355A-6503
SKU: CS939892MPN: 1355A-6503Alternate Part #s: 1355A-6503EAT-1355A-6503UPC/EAN: 782114106969

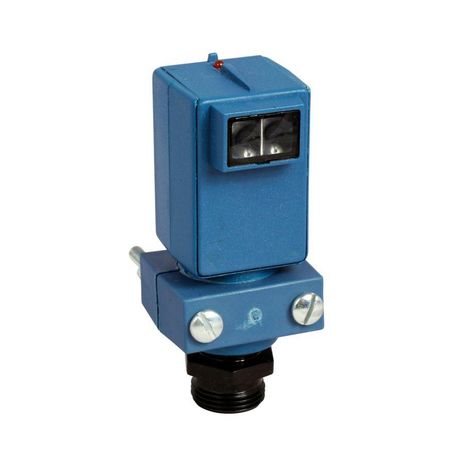

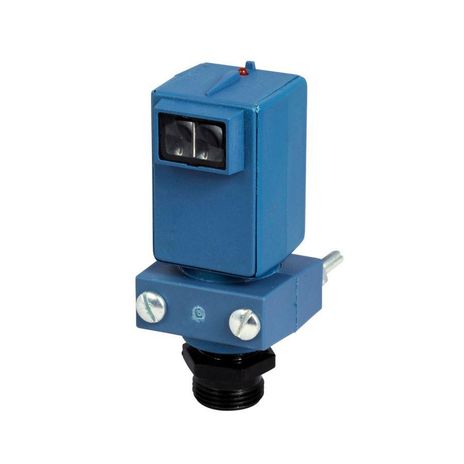

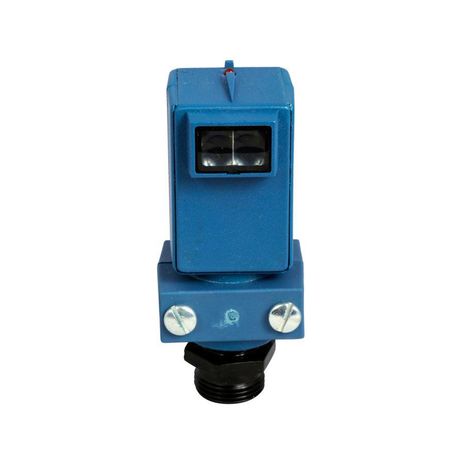

Eaton 55 series photoelectric sensor
$794.42
UnitAvailable on backorder
Product Details
Eaton Photoelectric Sensor, Diffuse Reflective, 10 in range, Forward Viewing, Light, Output status, Mini, 300 mA AC/DC at 20-264 Vac/15-30 Vdc, 3 pin, AC: L1 switched, DC: NPN open collector, 20-264 Vac/15-30 Vdc
Attributes
| Connection | Mini |
| Contact Configuration | AC: L1 switched DC: NPN open collector |
| Contact Rating | 300 mA AC/DC at 20-264 Vac/15-30 Vdc |
| Enclosure Material | Noryl |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 12, NEMA 13 |
| Input Voltage | 20-264 Vac, 15-30 Vdc |
| Led Indicator | Output status |
| Maximum Ac Current | 300 mA |
| Maximum Dc Current | 300 mA |
| Number Of Pins | 3.0000 |
| Operating Mode | Light |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -40 FAH |
| Operating Temperature Min Uom | FAH |
| Sensor Type | Diffuse reflective |
Specifications
| SKU | CS939892 |
|---|---|
| MPN | 1355A-6503 |
| Alternate Part #s | 1355A-6503, EAT-1355A-6503 |
| UPC/EAN | 782114106969 |
