Eaton 1356A-6513
SKU: CS459055MPN: 1356A-6513UPC/EAN: 782114106877

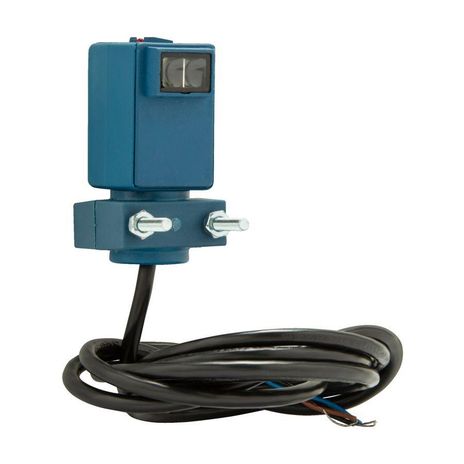

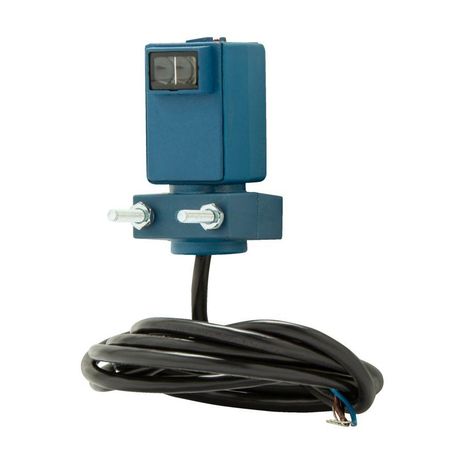

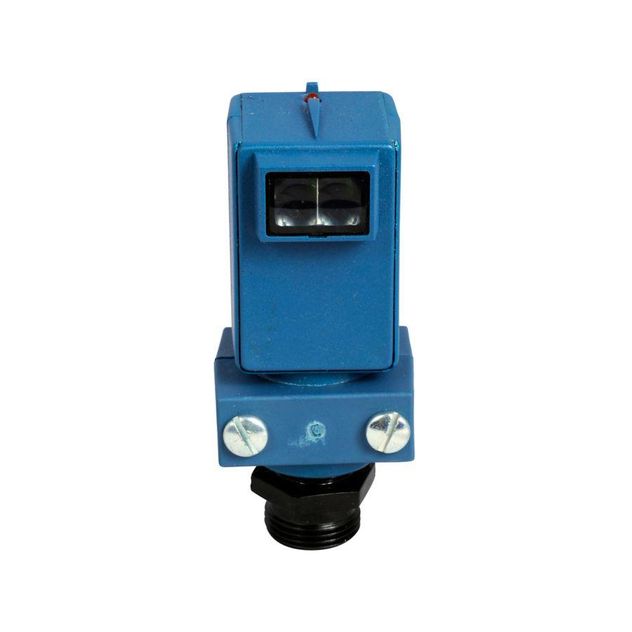

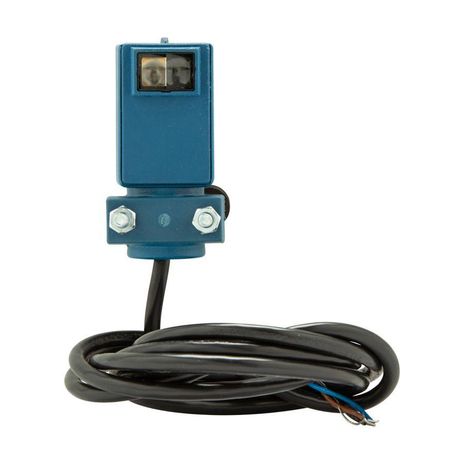

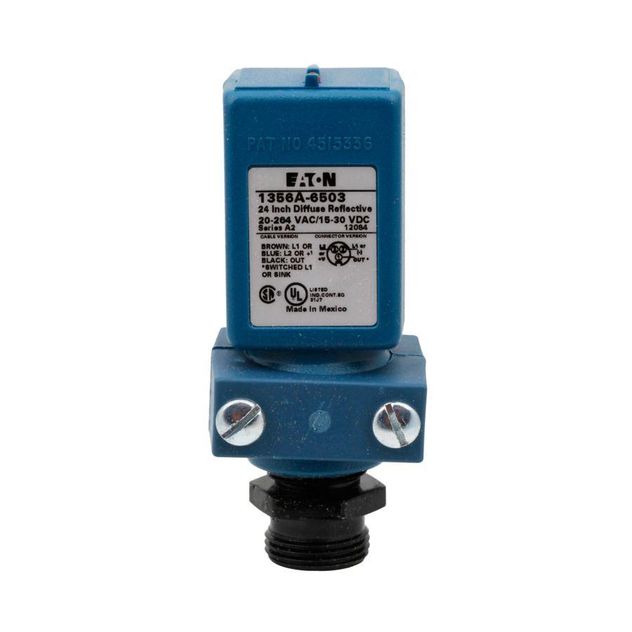

Eaton 55 series photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton Photoelectric Sensor, Diffuse Reflective, 24 in range, Forward Viewing, Light, Output status, 6 ft, 300 mA AC/DC at 20-264 Vac/15-30 Vdc, PVC, AC: L1 switched, DC: NPN open collector, 20-264 Vac/15-30 Vdc
Attributes
| Cable Type | Polyvinyl Chloride (PVC) |
| Contact Configuration | DC: NPN open collector AC: L1 switched |
| Contact Rating | 300 mA AC/DC at 20-264 Vac/15-30 Vdc |
| Enclosure Material | Noryl |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 12, NEMA 13 |
| Input Voltage | 20-264 Vac, 15-30 Vdc |
| Led Indicator | Output status |
| Maximum Ac Current | 300 mA |
| Maximum Dc Current | 300 mA |
| Operating Mode | Light |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -40 FAH |
| Operating Temperature Min Uom | FAH |
| Sensor Type | Diffuse reflective |
| Type | Photoelectric Sensor |
Specifications
| SKU | CS459055 |
|---|---|
| MPN | 1356A-6513 |
| UPC/EAN | 782114106877 |
