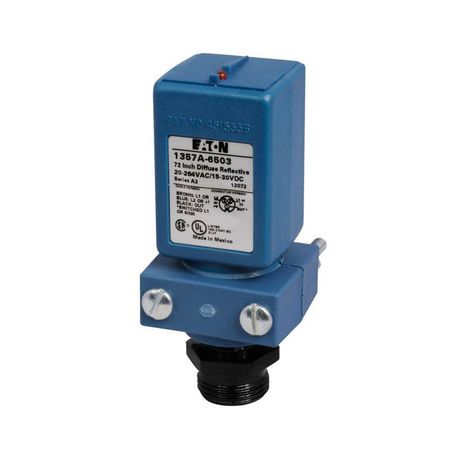

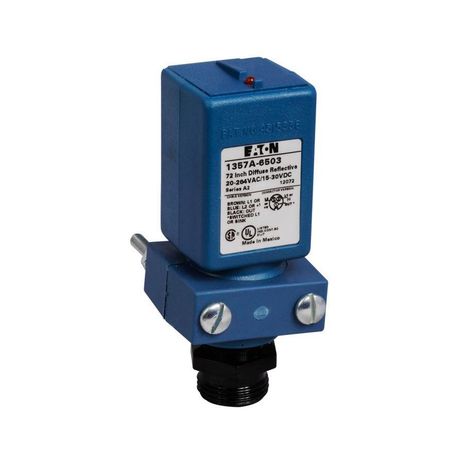

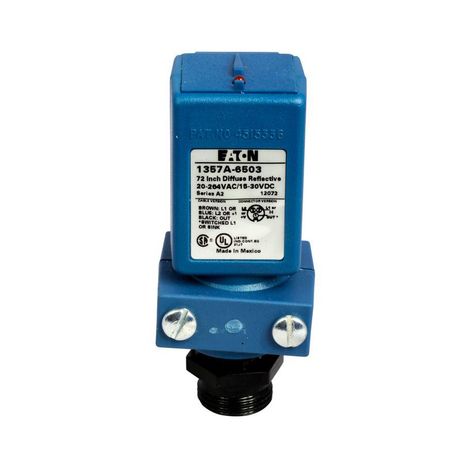

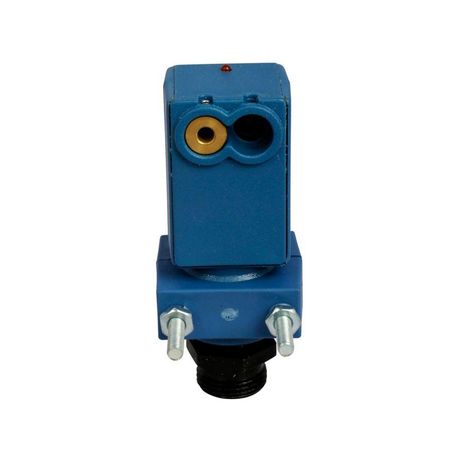

Eaton 1357A-6503
SKU: CS1041259MPN: 1357A-6503UPC/EAN: 782114106846
Eaton 55 series photoelectric sensor
$837.85
UnitAvailable on backorder
Product Details
Eaton 55 Series Photoelectric Sensor, Sensor distance 72 In., Body: Noryl, 300 mA AC/DC at 20-264Vac/15-30Vdc, 3 Pin Mini Connector, 20–264 Vac 50/60 Hz or 15–30 Vdc (NPN) input, Latching short circuit, Diffuse Reflective
Attributes
| Connection | 3-pin mini connector |
| Contact Configuration | AC: L1 switched DC: NPN open collector |
| Contact Rating | 300 mA AC/DC at 20-264Vac/15-30Vdc |
| Enclosure Material | Lens: nylon Body: noryl |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, NEMA 13 |
| Input Voltage | 20-264 Vac at 50/60 Hz, 15-30 Vdc (NPN) |
| Led Indicator | Output status: red |
| Maximum Ac Current | 300 mA |
| Maximum Dc Current | 300 mA |
| Operating Mode | Diffuse reflective |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -40 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Latching short circuit |
| Sensor Type | Diffuse reflective |
| Switch Type | Photoelectric |
Specifications
| SKU | CS1041259 |
|---|---|
| MPN | 1357A-6503 |
| UPC/EAN | 782114106846 |
You may also like
Eaton 1555A-6503
Contact us for pricing and availability
Eaton 1356A-6503
$824.82Unit
Eaton 1355A-6503
$794.42UnitEaton 1357A-6513
Contact us for pricing and availability
Eaton 1455A-6503
$794.42UnitEaton 1355AD6503
Contact us for pricing and availabilityEaton 1357AD6503
Contact us for pricing and availabilityEaton 1355R-6503
Contact us for pricing and availabilityEaton 1356R-6503
Contact us for pricing and availabilityEaton 1357R-6503
Contact us for pricing and availability

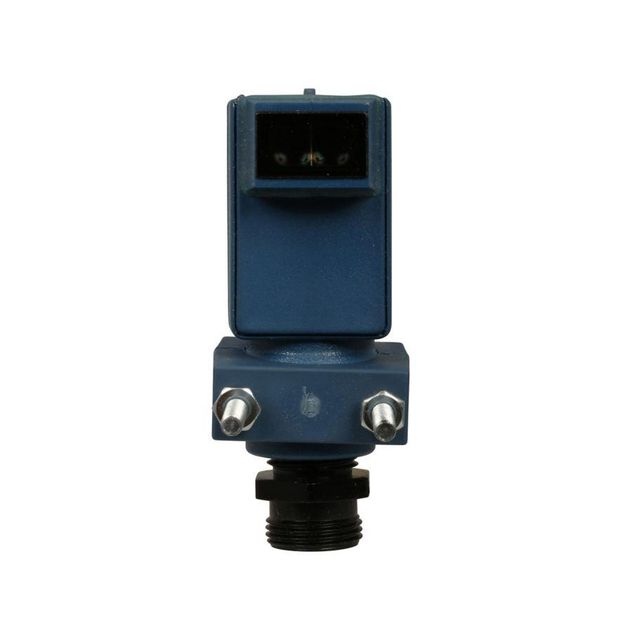

Eaton 1456A-6503
$848.69Unit

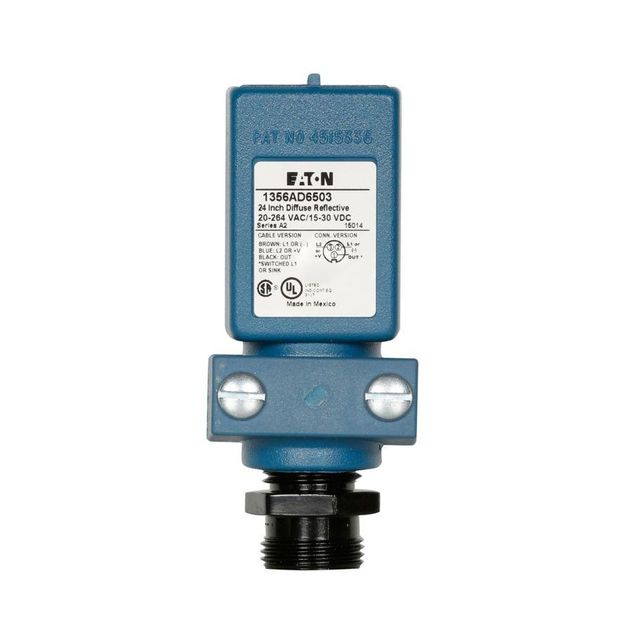

Eaton 1356AD6503
