Eaton 1456A-6503

Name: Eaton 1456A-6503
Brand: Eaton
SKU: CS102924
Price: 848.69 USD
Availability: OutOfStock

SKU: CS102924MPN: 1456A-6503UPC/EAN: 782114106747

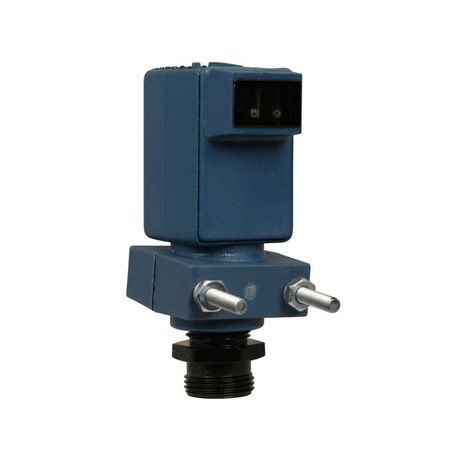

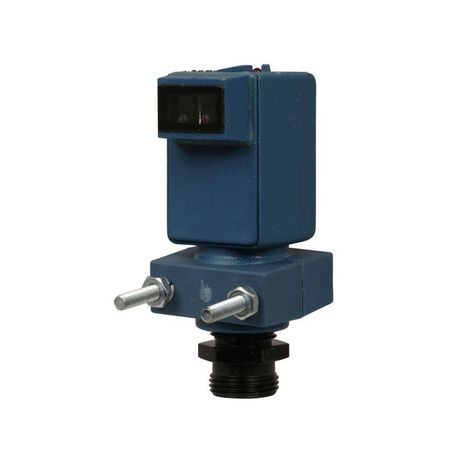

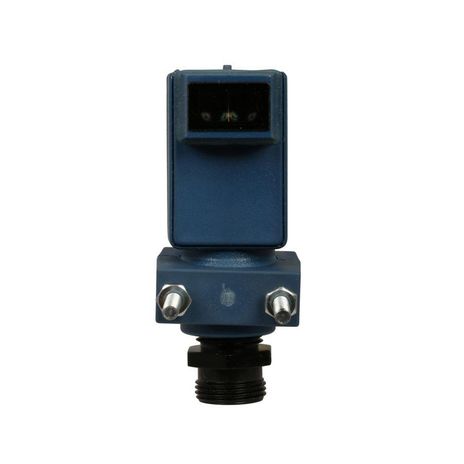

Eaton 55 series photoelectric sensor

$848.69

Unit

Available on backorder

Quantity

remove

add

Product Details

Eaton Photoelectric Sensor, Polarized Retroreflective, Forward Viewing, Light, Output status, Mini, 300 mA AC/DC at 20-264 Vac/15-30 Vdc, 3 pin, Solid-state, AC: L1 switched, DC: NPN open collector, 20-264 Vac/15-30 Vdc

Attributes

Connection	Mini
Contact Configuration	DC: NPN open collector AC: L1 switched
Contact Rating	300 mA AC/DC at 20-264 Vac/15-30 Vdc
Enclosure Material	Noryl
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 12, NEMA 13
Input Voltage	20-264 Vac, 15-30 Vdc
Led Indicator	Output status
Maximum Ac Current	300 mA
Maximum Dc Current	300 mA
Number Of Pins	3.0000
Operating Mode	Light
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Output	Solid-state
Sensor Type	Polarized retroreflective
