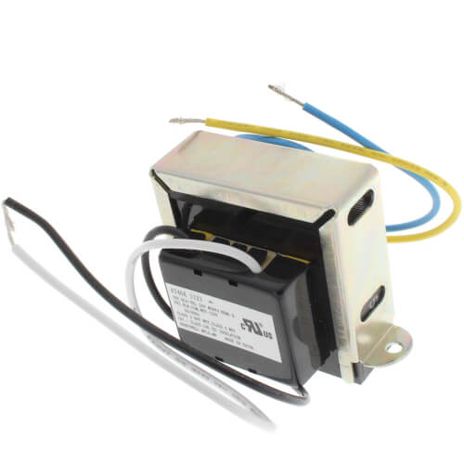

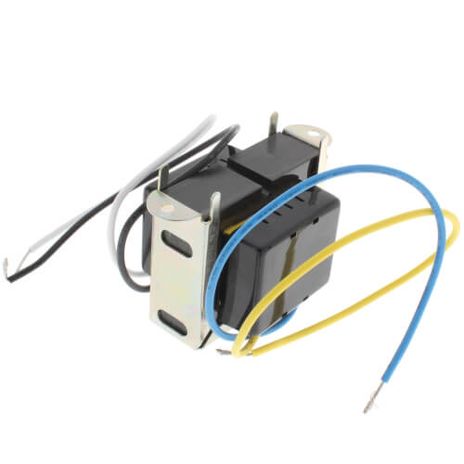

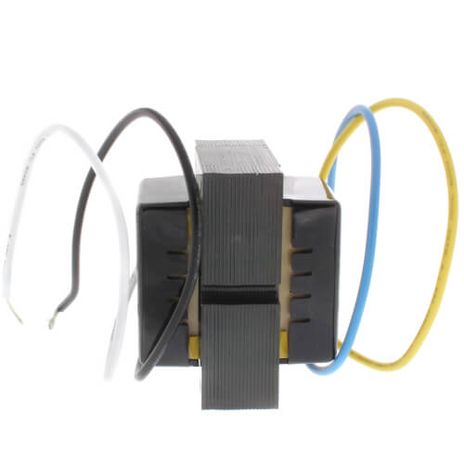

Resideo AT40A1121

Foot mounted 120 Vac Transformer with 9 in lead wires

Power a 24V control system; for direct mounting, or horizontal or vertical foot-mounting.

Features

• Color-coded leadwires for primary connections.
• Overload protection provided.
• Energy limiting, meet NEMA DC20-1992 Standard. Marked NEMA Type D.
• Meet NEC Class 2 not wet, Class 3 wet and U.L. 1585 requirements.
• Mount within proper enclosure.

Specifications

• Description: Foot mounted 120 Vac Transformer with 9 in. lead wires
• Electrical Ratings: 120 Vac
• Electrical Ratings -Secondary Voltage: 27.5 V.O.C.
• Frequency: 60 Hz
• Frequency: 50 Hz
• Mounting: Channel Frame Mounting allows for Direct, Horizontal, or Vertical Foot mounting.
• NEMA Rating: NEMA type B
• Electrical Connections (Primary)(in): 9 in. color coded primary and secondary leadwires
• Electrical Connections (Secondary)(in.): 229 mm color coded primary and secondary leadwires
• Electrical Ratings -Output: 24 Vac at 19 VA
• Dimensions: 2 in. high x 2-¼ in. wide x 1-⅞ in. deep
• Temperature Ratings: -20 F to +105 F
