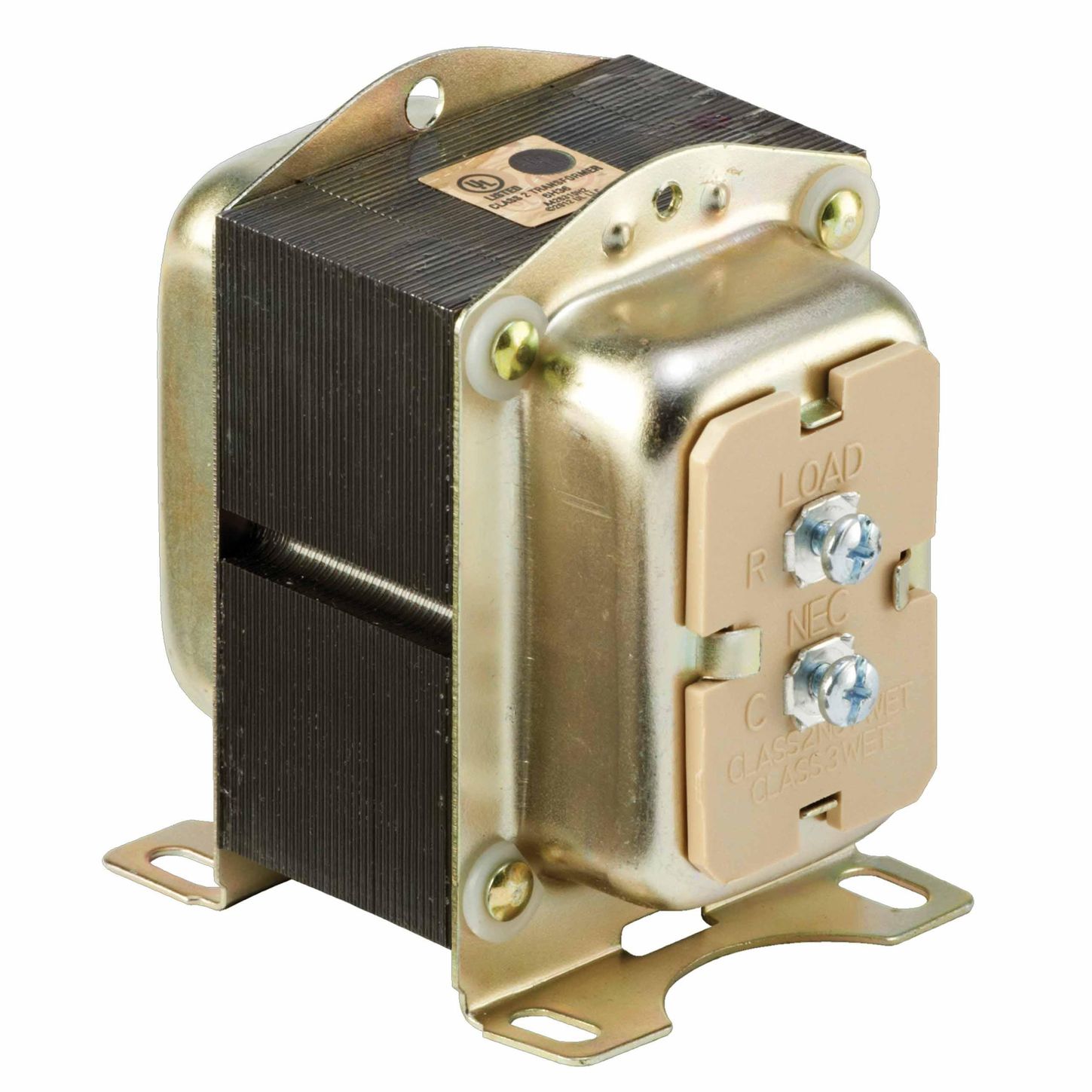

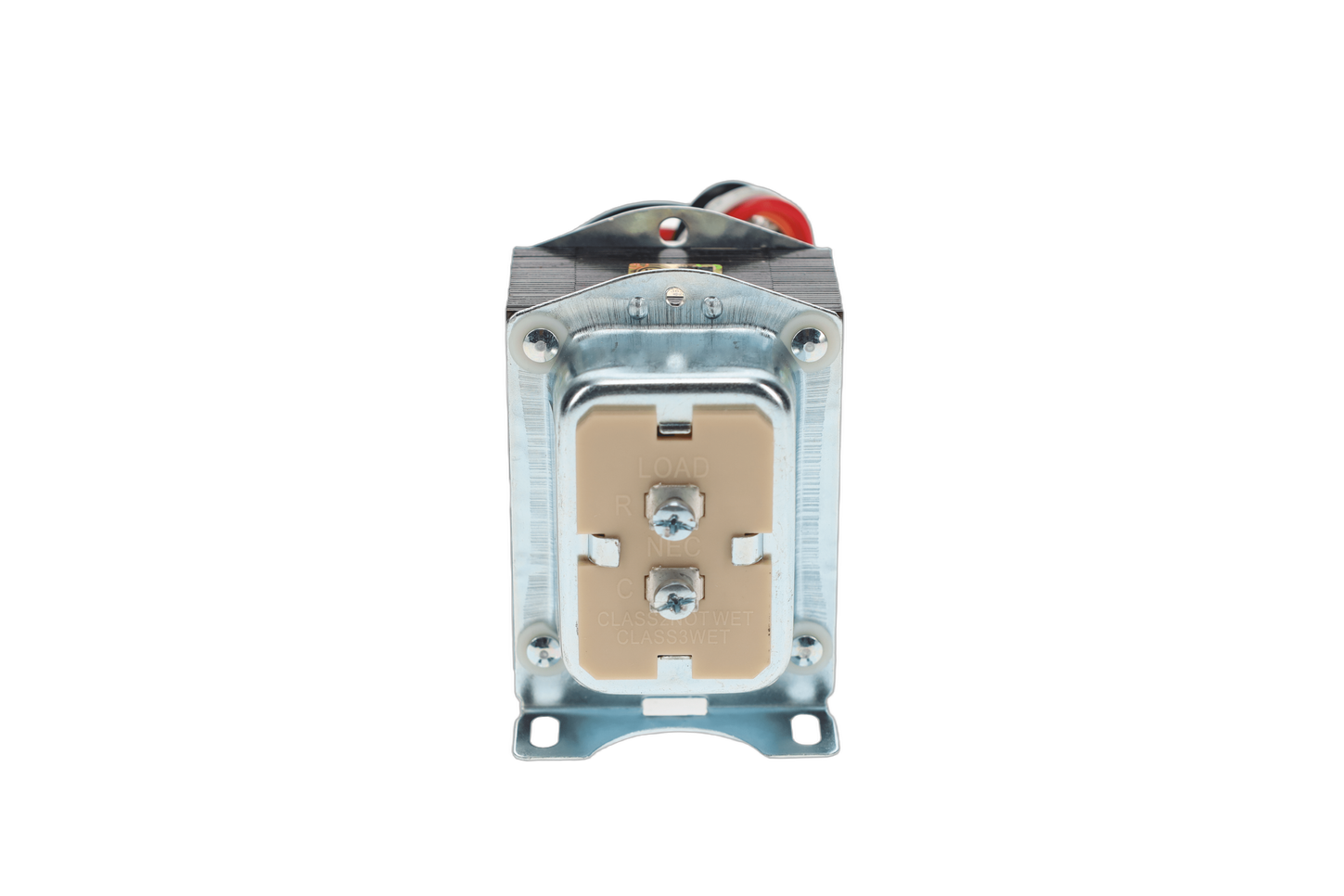

Resideo AT87A1106

Foot and Plate Mount Transformer

Used primarily for powering 24V air conditioning circuits. Can also be used in other applications that do not exceed the listed ratings.

Specifications

• Description: Foot or plate mounted 120/208/240 Vac Transformer with 13 in. lead wires, built in protection and primary winding burnout
• Electrical Ratings-Primary: 120 Vac, 208 Vac, 240 Vac
• Electrical Ratings-Secondary: 26.5 V.O.C.
• Frequency: 60 Hz
• Frequency: 50 Hz
• Mounting: Foot mounted or 4x4 in plate.
• NEMA Rating: NEMA TYPE E
• Electrical Connections (Primary)(in.): 13? Lead Wires
• Electrical Connections (Secondary)(in.): (2) screw terminals
• Electrical Ratings-Output: 24 Vac at 48 VA
• Dimensions: 2-15/16 in. deep x 2-7/32 wide
• Temperature Ratings: -20 F to +105 F
• Includes: Built-in protection. Primary winding burnout.

Features

• Meets NEC Class 2 not wet, Class 3 wet and UL 1585 requirements.
• Meets NEMA Standard DC20-1992.
• Transformer marked NEMA Type E.
• Overload protection provided.
• Color-coded leadwires for primary connections.
