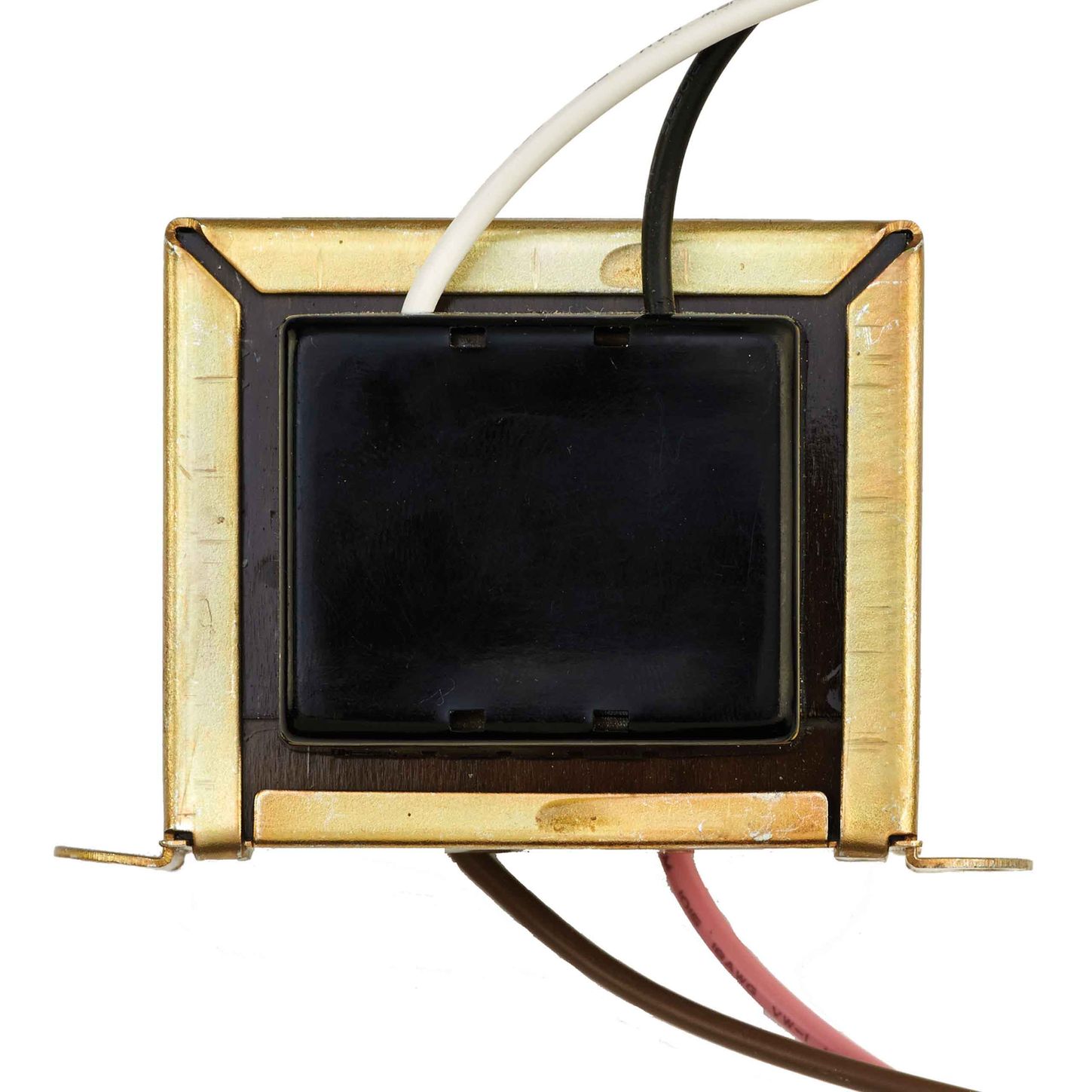

Resideo AT140B1206

Foot mounted 120 Vac Transformer with 9 in leadwires and plastic end caps

Features

• Rated at 40 VA.
• Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed ¼ inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
• Meet NEC Class 2 requirements.
• Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.

Specifications

• Description: Foot mounted 120 Vac Transformer with 9 in. leadwires and plastic end caps
• Electrical Ratings: 120 Vac
• Electrical Ratings -Secondary Voltage: 27 V.O.C.
• Frequency: 60 Hz
• Mounting: Foot-mounted
• NEMA Rating: No
• Electrical Connections (Primary)(in.): 9 in. lead wires
• Electrical Connections (Secondary)(in.): 9 in. lead wires
• Electrical Ratings –Output: 24 Vac at 40 VA
• Dimensions: 1-11/16 in. high x 3-½ in. wide x 1-¾ in. deep
• Temperature Ratings: -20 F to +105 F
• Includes: Plastic end caps
