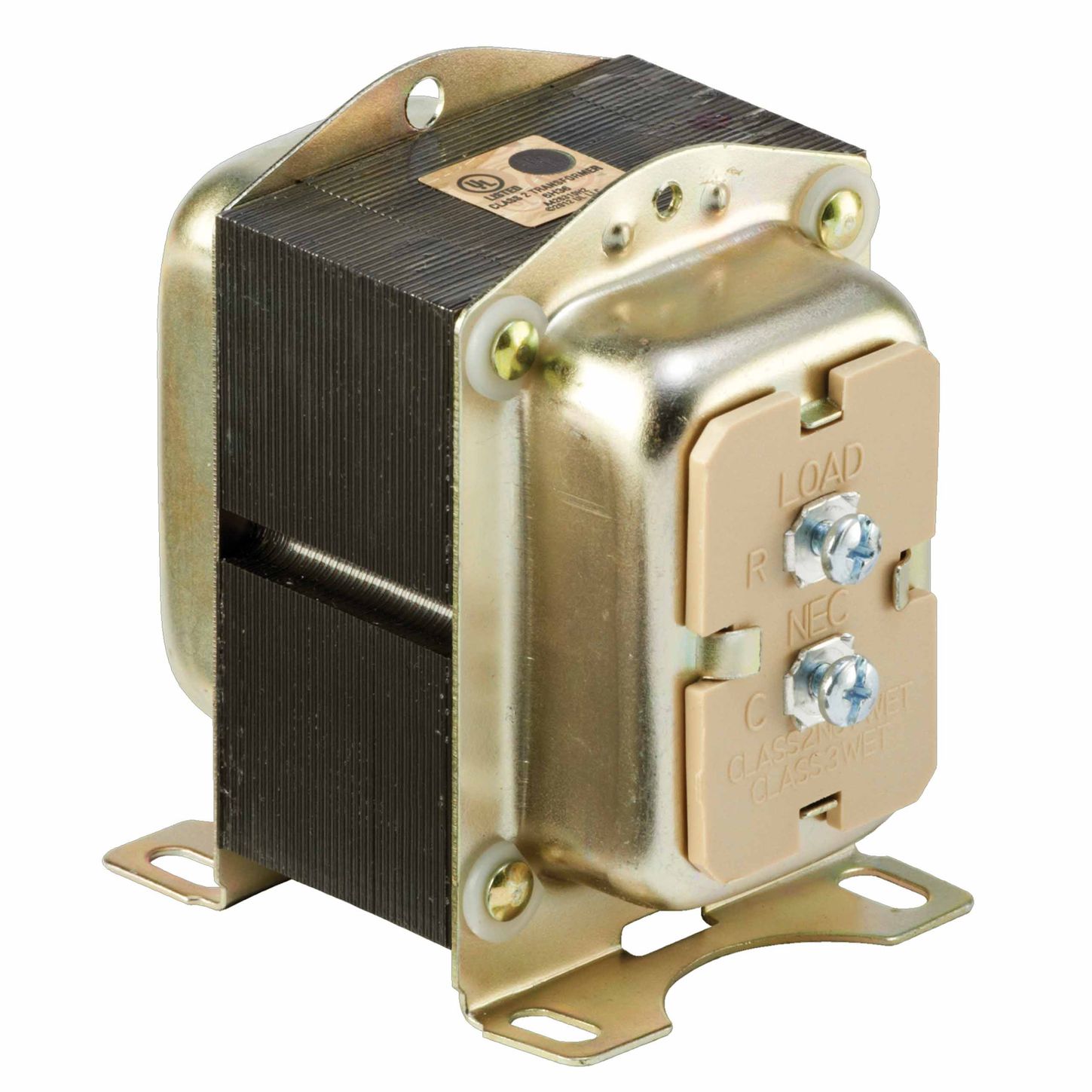

Resideo AT87A1049

Foot mounted 120 V AC Transformer with 12 in leadwires and energy limiting overload protection

Used primarily for powering 24V air conditioning circuits. Can also be used in other applications that do not exceed the listed ratings.

Features

• Meets NEC Class 2 not wet, Class 3 wet and UL 1585 requirements.
• Meets NEMA Standard DC20-1992.
• Transformer marked NEMA Type E.
• Overload protection provided.
• Color-coded leadwires for primary connections.

Specifications

• Description: Foot mounted 120 Vac Transformer with 12 in. leadwires and energy limiting overload protection
• Electrical Ratings-Primary: 120 Vac
• Electrical Ratings-Secondary: 26.5 V.O.C.
• Frequency: 60 Hz
• Frequency: 50 Hz
• Mounting: Foot mounted
• NEMA Rating: NEMA TYPE E
• Electrical Connections (Primary)(in.): 12? Lead Wires
• Electrical Connections (Secondary)(in.): 12? Lead Wires
• Electrical Ratings-Output: 24 Vac at 48 VA
• Dimensions: 2-15/16 in. deep x 2-7/32 wide
• Temperature Ratings: -20 F to +105 F
• Includes: Energy limiting overload protection
