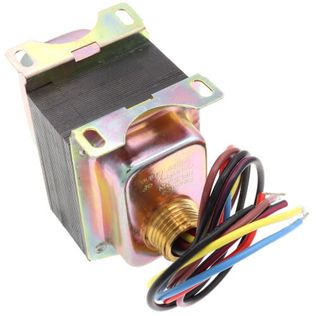

Resideo AT150B1237

Foot mounted 120/208/240 Vac Transformer with 9 in leadwires and plastic end caps

Features:

• Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed ¼ inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
• Meet NEC Class 2 requirements.
• Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.
• Electrical Ratings -Primary Voltage: 120 Vac, 208 Vac, 240 Vac
• Electrical Ratings -Secondary Voltage: 27.5 V.O.C.
• Frequency: 60 Hz
• Mounting: Foot-mounted
• Electrical Connections (Primary)(in.): 9 in. leadwires with ¼ in. male quick-connects
• Electrical Connections (Secondary)(in.): 9 in. leadwires with ¼ in. male quick-connects with plastic (2) end covers
• Electrical Ratings -Output 24 Vac at 50 VA
• Dimensions (in.): 1 11/16 in. high x 3 ½ in. wide x 1 ¾ in. deep
• Temperature Ratings (F): -20 F to +105 F
• Approvals, Underwriters Laboratories Inc: UL Component Recognized: B, D, E models. File# E14881
• Approvals, Canadian Standards Association: CSA Certified: A \& B models
• Includes : Plastic end caps
