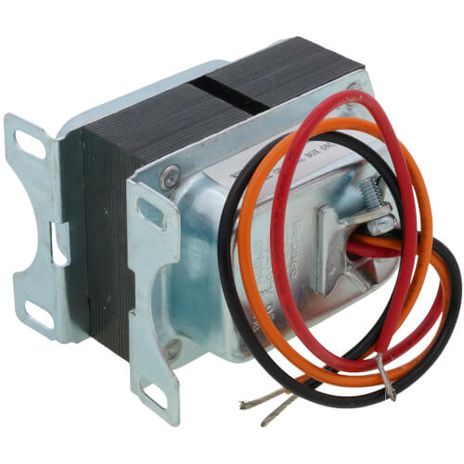

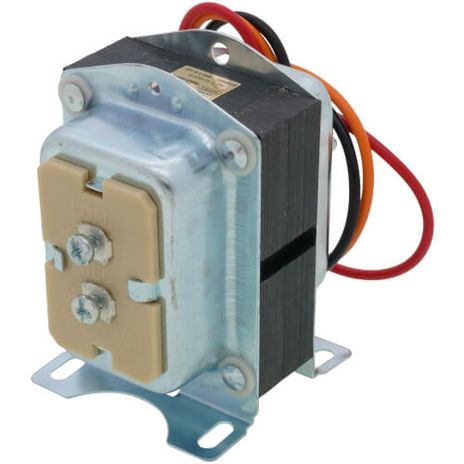

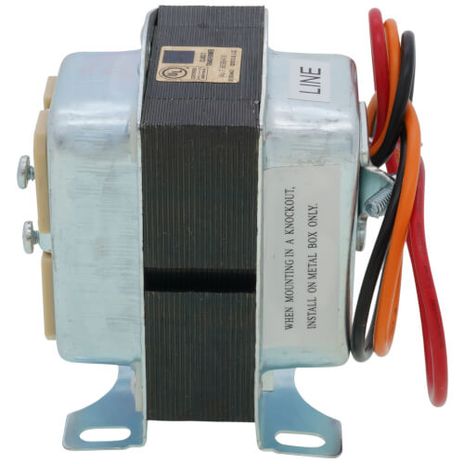

Resideo AT72D1691

Foot mounted, plate mounted, or clamp mounted 208/240 V AC Transformer with 9 in leadwires

24V control circuit step-down transformer designed to power any 24V control system, including thermostats, gas valves and relays.

Features

• Override protection provided.
• Color-coded leadwires for primary connections.
• Energy limiting, meets NEMA Standard DC20-1992.
• Transformer is marked NEMA Type D.
• Meets NEC Class 2 not wet, Class 3 wet and U.L. 1585 requirements.
• Mount within proper enclosure.

Specifications

• Description: Plate mounted 120 Vac Transformer with 9 in. leadwires
• Electrical Ratings: 120 Vac
• Electrical Ratings -Secondary Voltage: 26.5 V.O.C.
• Frequency: 60 Hz
• Frequency: 50 Hz
• Mounting: 4 x 4 in. plate mounted without protruding into junction box.
• NEMA Rating: NEMA type D
• Electrical Connections (Primary)(in): 9 in. leadwires
• Electrical Connections (Secondary)(in.): (2) screw terminals
• Electrical Ratings -Output: 24 Vac at 40 VA
• Dimensions: 3-7/32 in. high x 2-7/32 in. wide x 3-1/16 in. deep
• Temperature Ratings: -20 F to +105 F
