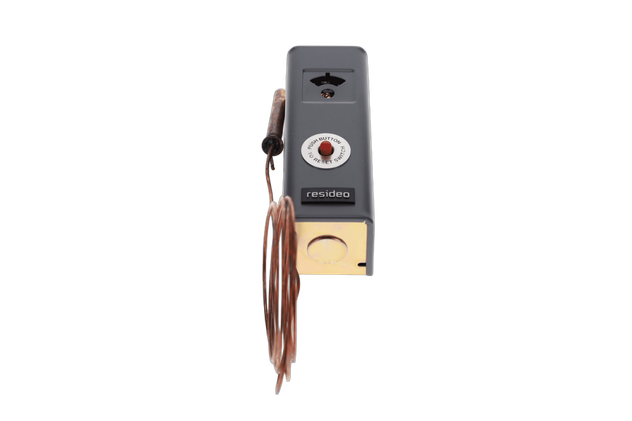

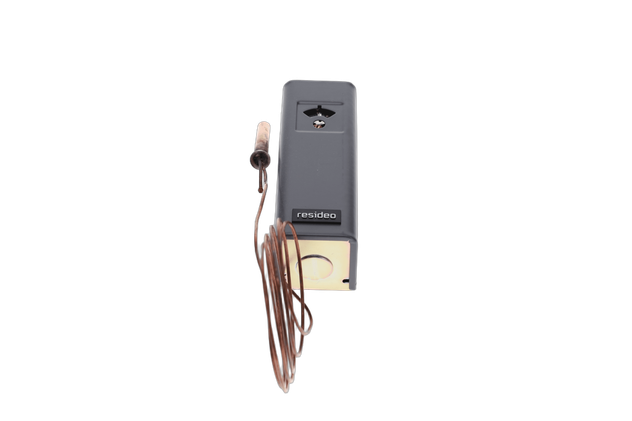

Resideo L4006E1125

High Limit Aquastat Controller, Range 100-200 °F, manual reset, SPST, contacts break on temperature rise

This is a direct replacement for Slant/fin 818-223-000

• Description: High Limit; Manual Reset Aquastat Controller with 100 F to 200 F operating temperature
• Application : High Limit; Manual Reset
• Insulation Depth (in.): 3 in.
• Insulation Depth (mm): 76 mm
• Bulb Size (in.) : ⅜ in. x 2 ⅞ in. copper
• Bulb Size (mm) : 10 mm x 73 mm copper
• Switching Action : SPST, contacts break on temperature rise.
• Operating Temperature Range (F) : 100 F to 200 F
• Operating Temperature Range (C): 38 C to 93 C
• Electrical Ratings (millivolt): 0.25 A @ 0.25 to 12 Vdc
• Electrical Ratings (AFL): 8A @ 120 Vac
• Electrical Ratings (AFL): 1.3A @ 240 Vac
• Electrical Ratings (ALR): 48A @ 120 Vac
• Electrical Ratings (ALR): 30.6A @ 240 Vac
• Differential Temperature (F): Manual Reset
• Differential Temperature (C): Manual Reset
• Maximum Ambient Temperature (F): 150 F
• Maximum Ambient Temperature (C): 66 C
• Case Dimensions (in.): 5 ⅝ in. high x 2 in. wide x 2 ⅛ in. deep
• Case Dimensions (mm) : 143 mm high x 51 mm wide x 54 mm deep
• Mounting: Horizontal or Vertical
• Approvals, Underwriters Laboratories Inc UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
• Approvals, Canadian Standards Association Certified: File No. LR95329-1 Approvals, American Gas Association IAS AGA Certified
