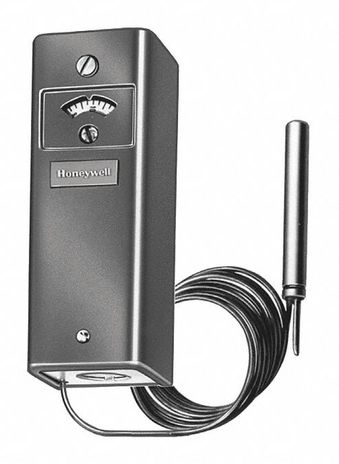

Resideo L6008A1242

Circulator Aquastat Controller, High or Low Limit, Range 100-200 °F, adjustable differential, SPST, NO terminals break on temperature rise

Features

• Remote temperature sensing element detects and responds rapidly to temperature changes.
• Totally enclosed Micro Switch+ snap-acting switch.
• Visible control point scale and external adjustment screw permit easy setting.
• Horizontal or vertical mounting of the remote element into boiler, tank, or other container.
• Case mounts to a vertical surface.

Product Specifications

• Description Circulator Control and Low Limit Aquastat Controller with 100 F to 200 F operating temperature and 5 F to 30 F adj. Differential
• Application: Circulator Control and Low Limit
• Bulb Size (in.): ⅜ in. x 2 ⅞ in. copper
• Bulb Size (mm): 10 mm x 73 mm copper
• Capillary Length (in.): 66 in.
• Switching Action : SPDT
• Operating Temperature Range (F): 100 F to 200 F
• Operating Temperature Range (C): 38 C to 93 C
• Electrical Ratings (millivolt): 0.25 A @ 0.25 to 12 Vdc
• Electrical Ratings (AFL): 8A @ 120 Vac
• Electrical Ratings (AFL): 5.1A @ 240 Vac
• Electrical Ratings (ALR): 48A @ 120 Vac
• Electrical Ratings (ALR): 30.6A @ 240 Vac
• Differential Temperature (F): 5 F to 30 F adj.
• Differential Temperature (C): 3 C to 17 C adj.
• Maximum Ambient Temperature (F): 150 F
• Maximum Ambient Temperature (C): 66 C
• Case Dimensions (in.): 5 ⅝ in. high x 2 in. wide x 2 ⅛ in. deep
• Case Dimensions (mm): 143 mm high x 51 mm wide x 70 mm deep
• Mounting: Horizontal or Vertical
• Approvals, Underwriters Laboratories Inc UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
• Approvals, Canadian Standards Association Certified: File No. LR95329-1 Includes: 66 in. capillary
