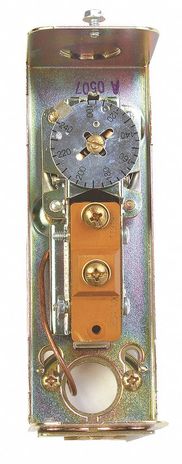

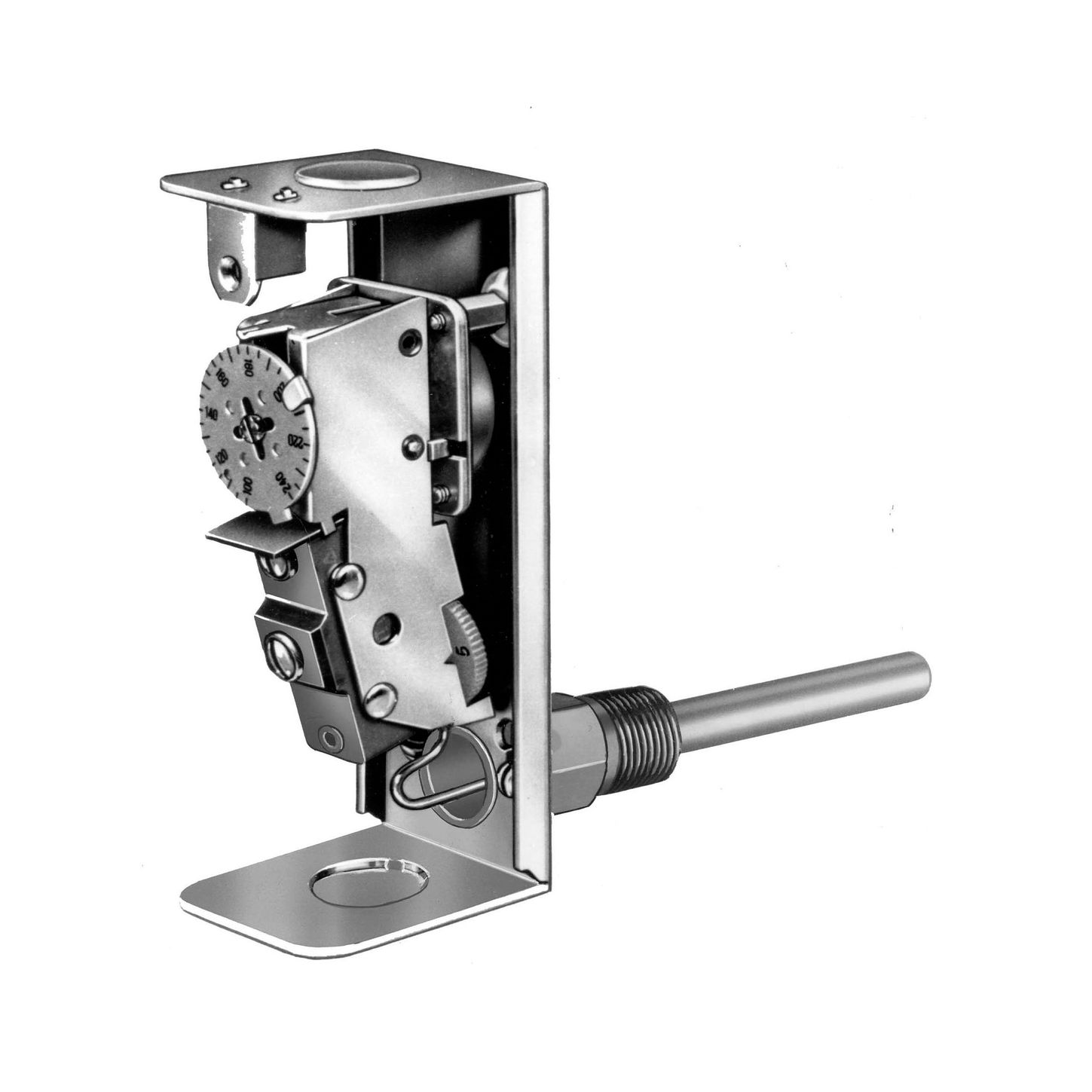

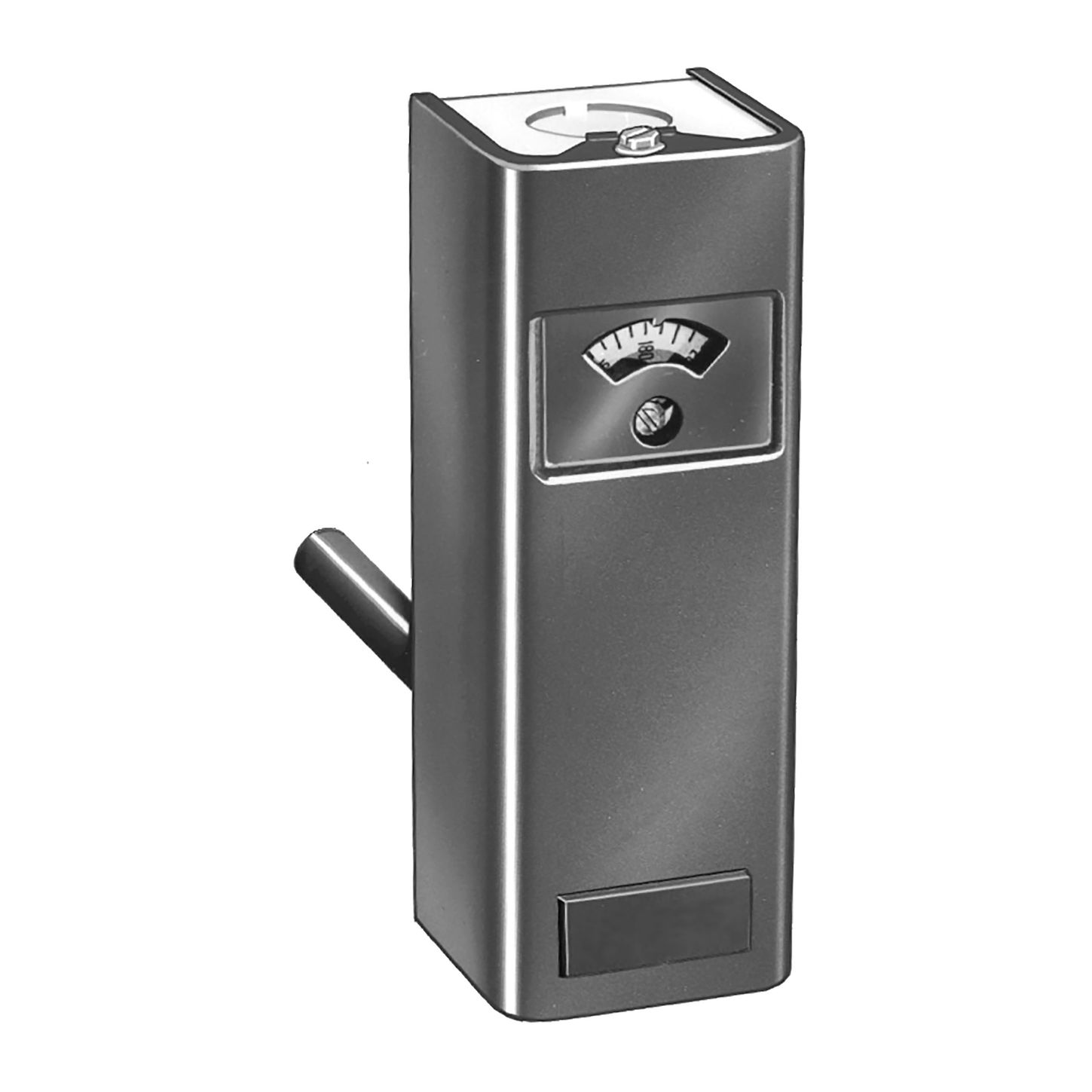

Resideo L4006B1155

Circulator Aquastat Controller, Range 100-240 °F, adjustable differential, SPST, contacts break on temperature rise

Aquastat+ Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required.

Features

• Totally enclosed Micro Switch+ snap-acting switches operate on temperature rise to setpoint.
• Visible control point scale and external adjustment screw permit easy setting.
• Horizontal or vertical insertion of the sensing element.
• Direct or well immersion of the sensing element.
• Models available for strap-on mounting.
• Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.

Product Specifications

Description : Circulator Aquastat Controller with 100 F to 240 F operating temperature, 5 F to 30 F adj. Differential

Application : Circulator

Insulation Depth (in.) : 3 in.

Insulation Depth (mm) : 76 mm

Bulb Size (in.) : ⅜ in. x 2 ⅞ in. copper

Bulb Size (mm) : 10 mm x 73 mm copper

Switching Action : SPST, contacts make on temperature rise.

Operating Temperature Range (F) : 100 F to 240 F

Operating Temperature Range (C) : 38 C to 116 C Electrical Ratings (millivolt) 0.25 A @ 0.25 to 12 Vdc

Electrical Ratings (AFL) : 8A @ 120 Vac

Electrical Ratings (AFL) : 5.1A @ 240 Vac

Electrical Ratings (ALR) : 48A @ 120 Vac

Electrical Ratings (ALR) : 30.6A @ 240 Vac

Differential Temperature (F) : 5 F to 30 F adj.

Differential Temperature (C) : 3 C to 17 C adj.

Maximum Ambient Temperature (F) : 150 F

Maximum Ambient Temperature (C) : 66 C

Case Dimensions (in.) : 5 ⅝ in. high x 2 in. wide x 2 ⅛ in. deep

Case Dimensions (mm) : 143 mm high x 51 mm wide x 54 mm deep

Mounting : Horizontal or Vertical

Approvals, Underwriters Laboratories Inc : UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2

Approvals, Canadian Standards Association : Certified: File No. LR95329-1

Approvals, American Gas Association IAS : AGA Certified

Includes : 3 in. (76 mm) insulation, stop factory-set at 240 F (116 C), and heat-conductive compound.
