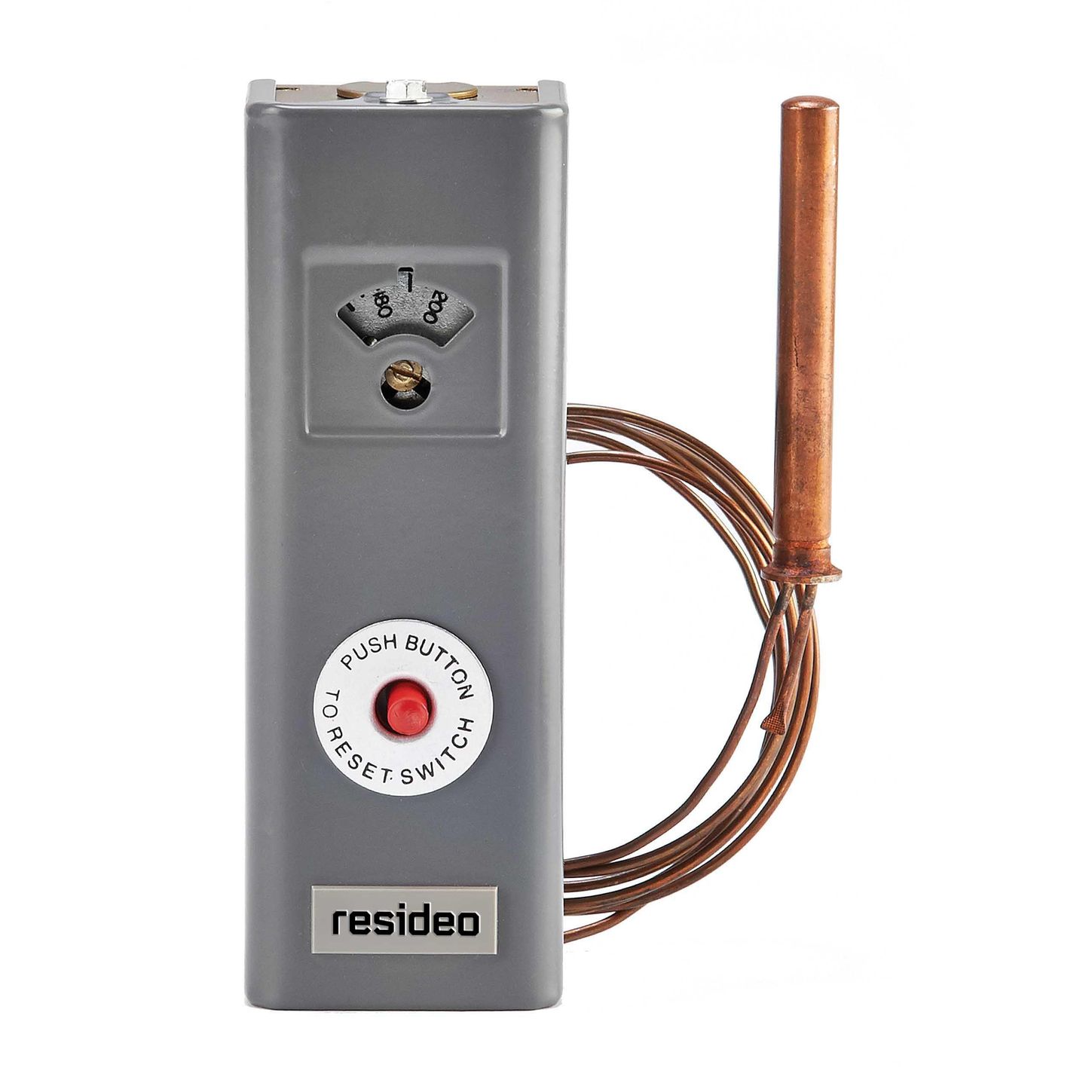

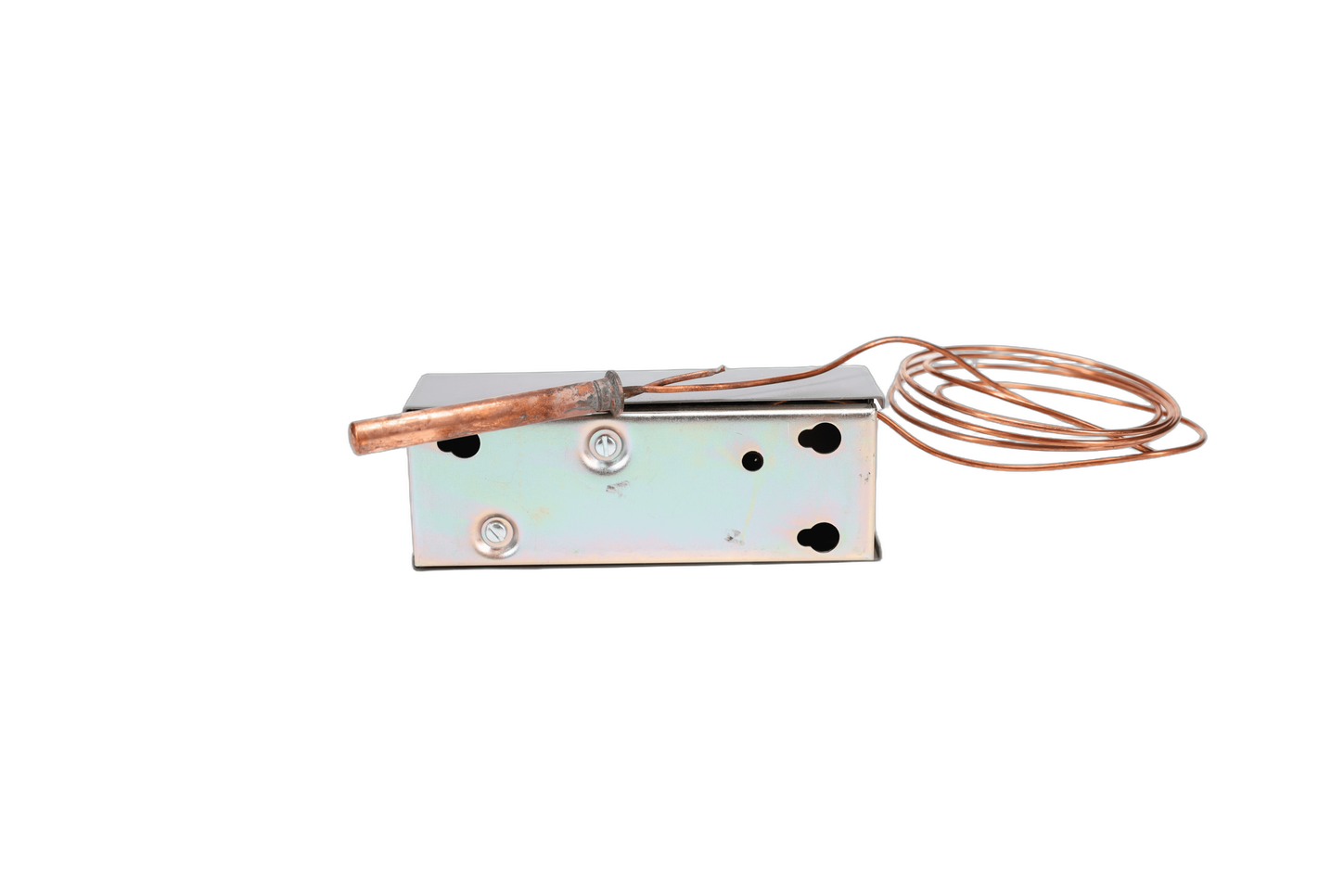

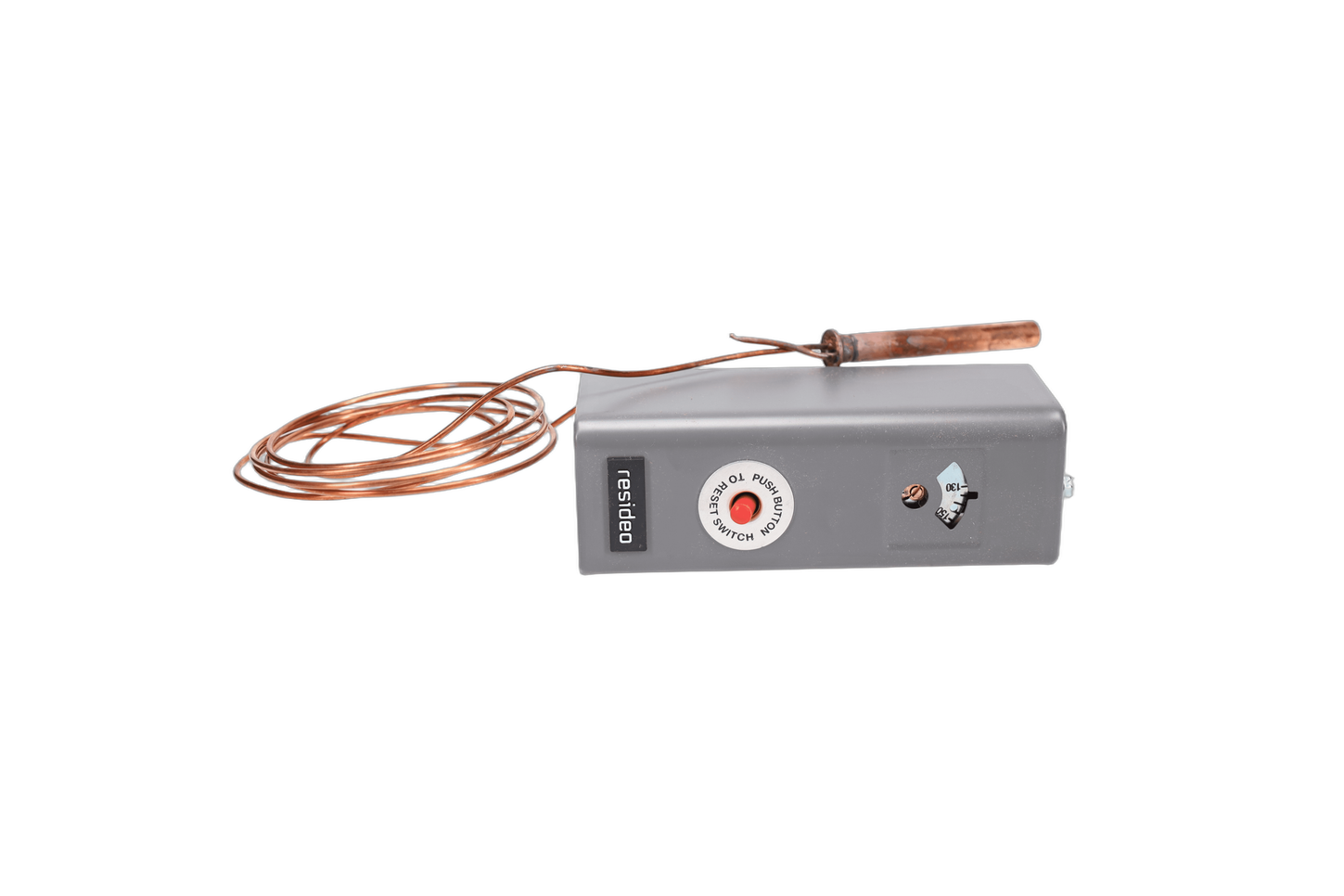

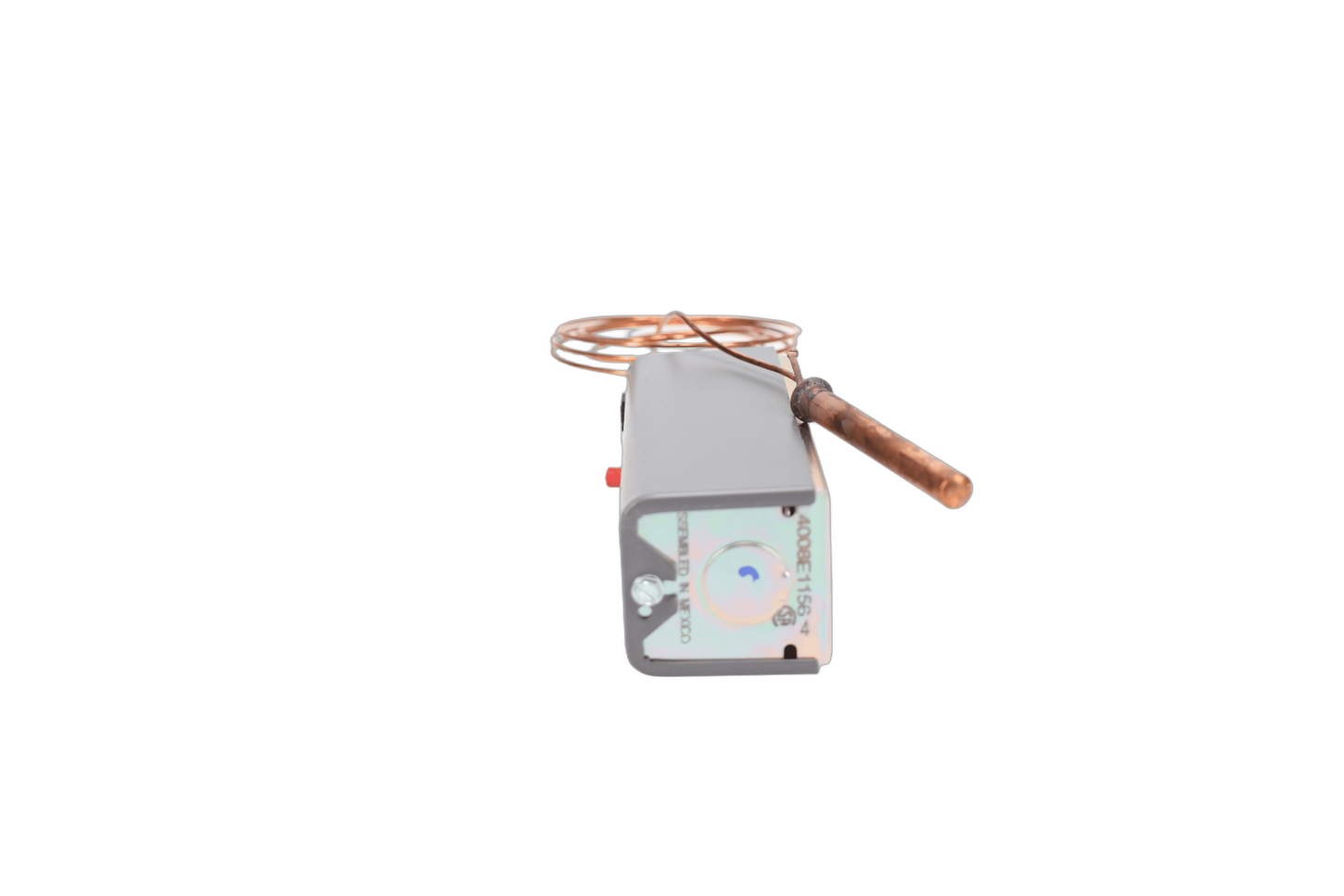

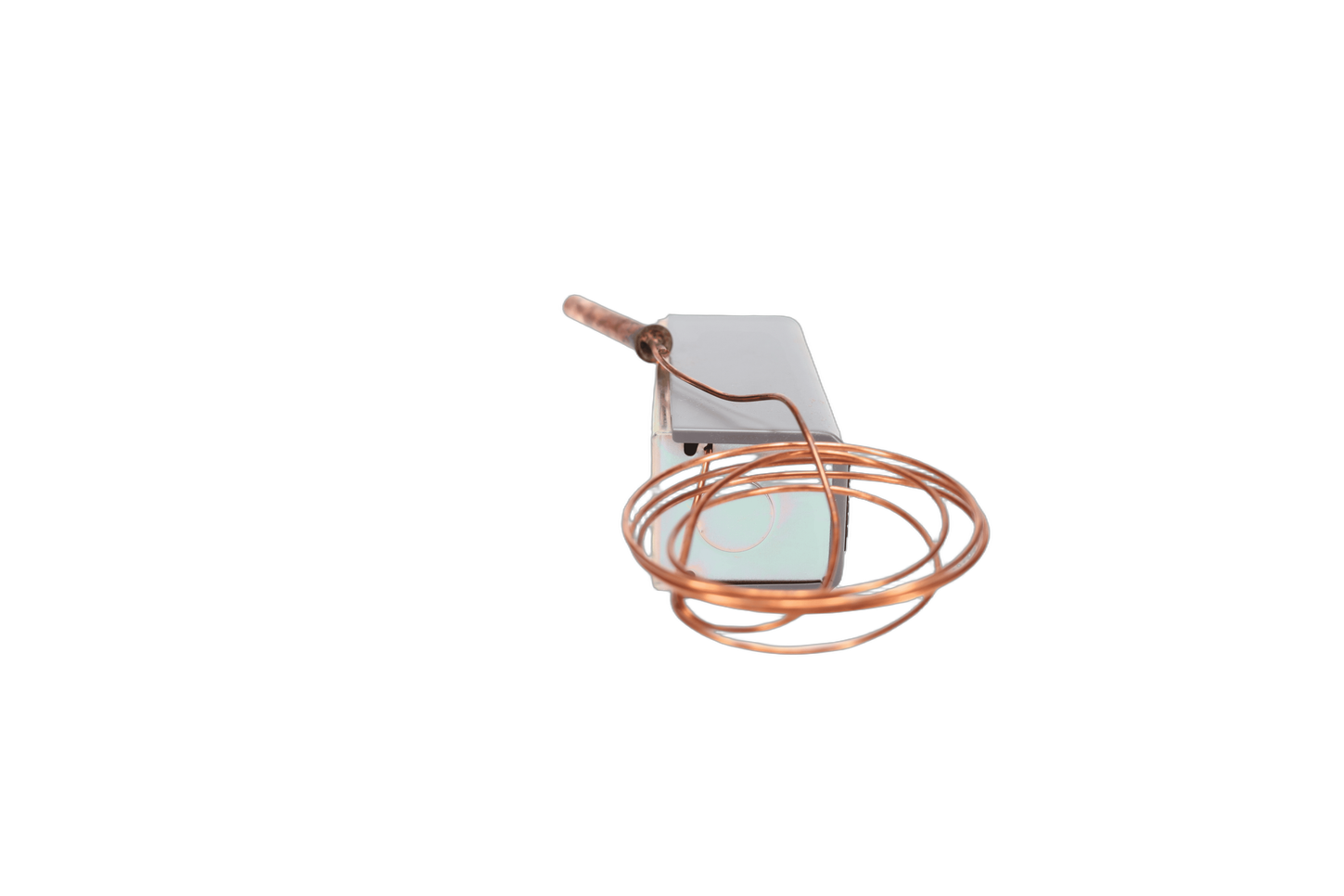

Resideo L4008E1156

High limit manual reset Aquastat, 130F – 270F, 66 in capillary, factory stop at 250F

For limiting or regulating temperature of liquids in boilers or tanks. Can also sense duct or outside air temperature.

Features - Remote temperature sensing element detects and responds rapidly to temperature changes. - Totally enclosed Micro Switch snap-acting switch. - Visible control point scale and external adjustment screw permit easy setting. - Horizontal or vertical mounting of the remote element into boiler, tank, or other container. - Case mounts to a vertical surface.

Product Specifications

Description : High Limit: Manual Reset Aquastat Controller with 130 F to 270 F operating temperature and 66 in. capillary

Application : High Limit. Manual Reset

Bulb Size (in.) : ⅜ in. x 2 ⅞ in. copper

Bulb Size (mm) : 10 mm x 73 mm copper

Capillary Length (in.) : 66 in.

Switching Action : SPST, contacts break on temperature rise.

Operating Temperature Range (F) : 130 F to 270 F

Operating Temperature Range (C) : 54 C to 132 C

Electrical Ratings (millivolt) : 0.25 A @ 0.25 to 12 Vdc

Electrical Ratings (AFL) : 8A @ 120 Vac

Electrical Ratings (AFL) : 5.1A @ 240 Vac

Electrical Ratings (ALR) : 48A @ 120 Vac

Electrical Ratings (ALR) : 30.6A @ 240 Vac

Differential Temperature (F) : Manual Reset

Differential Temperature (C) : Manual Reset

Maximum Ambient Temperature (F) : 150 F

Maximum Ambient Temperature (C) : 66 C

Case Dimensions (in.) : 5 ⅝ in. high x 2 in. wide x 2 ⅛ in. deep

Case Dimensions (mm) : 143 mm high x 51 mm wide x 54 mm deep

Mounting : Horizontal or Vertical

Approvals, Underwriters Laboratories Inc : UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2

Approvals, Canadian Standards Association : Certified: File No. LR95329-1

Includes : 5 ½ ft (1.7 m) capillary. factory-set stop at 250 F (121 C) heat-conductive compound.
